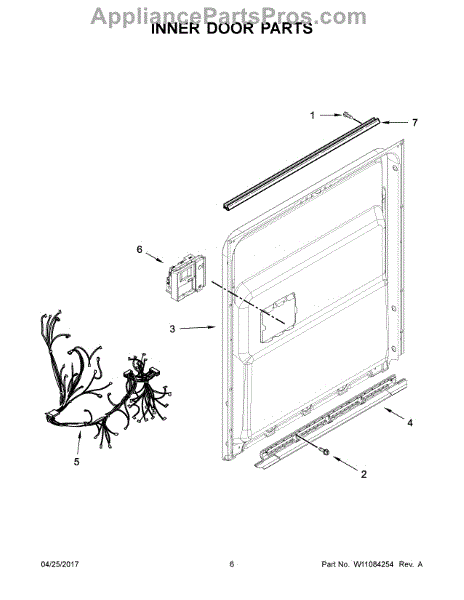

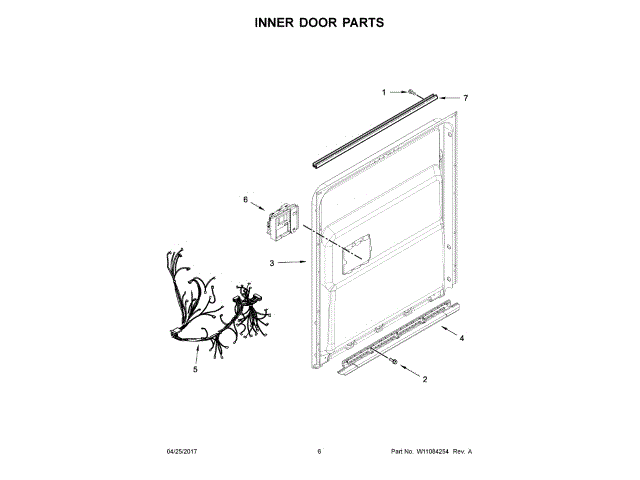

Whirlpool W10901996 Wire Harness (Main Harness) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W10901996 replaces AP6050120.

Description

This wire harness is the factory replacement wiring assembly that connects controls and components so your appliance receives power and signals reliably. It restores proper electrical connections for safe, dependable operation. What it does

• Routes power and signal connections between control board, switches, sensors and motors
• Replaces damaged, frayed or corroded wiring that can cause intermittent operation
• Helps resolve symptoms like no power to components, control failures, or devices that won't start
• Prevents loose or exposed wires that can lead to arcing or burned connectors
• Matches OEM connector ends and color coding for correct fit and function

What's included

• One complete wire harness assembly

Install notes

• Disconnect power (unplug or shut off breaker) before starting any repair
• Reference OEM wiring diagram or take photos before removing the old harness to ensure correct routing and connector placement
• Inspect connectors and terminals for corrosion; replace or clean as needed for good contact
• Secure harness with existing clips and ties; avoid pinching or routing near sharp edges or heat sources
