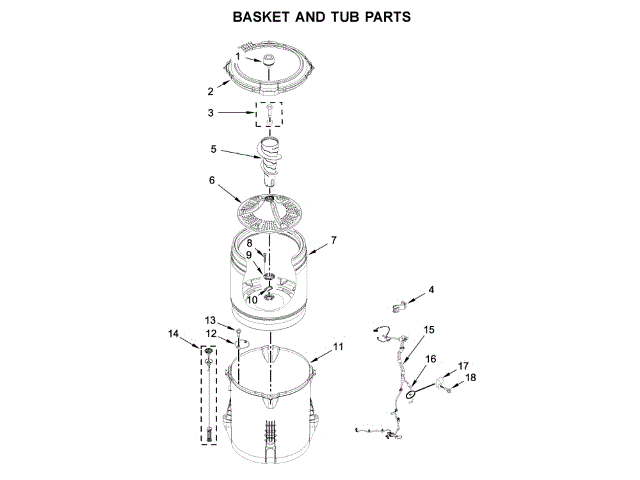

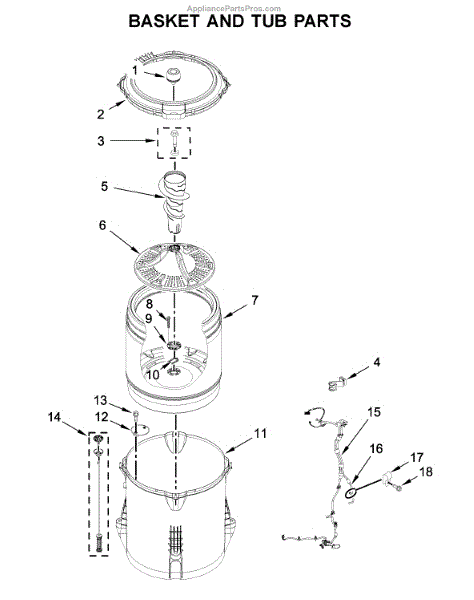

Whirlpool W11233718 Wire Harness (Multi-Connector) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11233718 replaces AP6995473, W11156559.

Description

This wire harness routes power and signals between the appliance control and components to restore reliable electrical connections. It replaces a worn or damaged harness to help stop intermittent operation and restore proper control response. What it does:

• Provides factory-style wiring for control circuits and component connections
• Restores lost or intermittent power/signal paths caused by frayed or broken wires
• Helps correct symptoms such as failure to start, intermittent operation, or unresponsive controls
• Maintains proper connector pinout and secure connections for safe operation

What's included:

• One wire harness assembly as shown

Install notes:

• Disconnect all power before beginning any service to avoid shock or injury
• Label or photograph connections before removal to ensure correct reconnection
• Route harness free of pinch points, heat sources, and moving parts; secure with existing clips or ties
• If connectors or terminals are damaged, replace them or the entire harness; verify good ground continuity after installation
