Product Details
Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.
Cross Reference Information
Part Number W11243205 replaces AP6333595, W10877734, 4845343, PS12578836.
Description

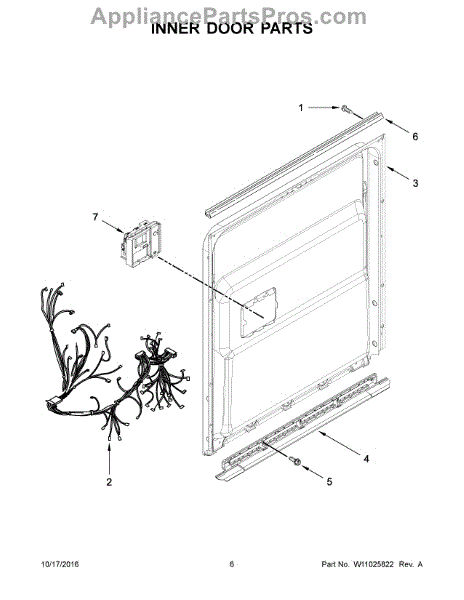

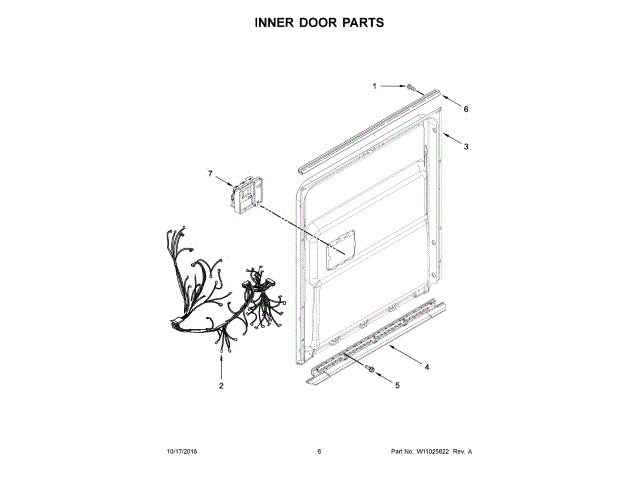

This main wire harness routes power and signals between an appliance's control and its electrical components, restoring reliable electrical connections for proper operation. Use when a damaged or broken harness causes control or power problems. What it does:
- Connects the control board, sensors, switches and motors to supply power and signal paths
- Replaces frayed, burned or broken wiring that can cause intermittent operation
- Helps stop symptoms like no power to components, controls not responding, or intermittent cycles
- Restores correct routing and secure connector fit for safe operation
What's included: One wiring harness as shown Install notes:
- Disconnect all power before starting and verify the appliance is de-energized
- Take photos of the existing harness routing and connector positions before removal
- Route the new harness the same way and fully seat each connector; secure with clips or ties as needed
- If you see heat damage at connectors or terminals, replace harness and inspect mating components.
