Whirlpool W11296297 Wire Harness (Electrical) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11296297 replaces AP6809327, WPW10514456, PS12704574, W10514456, W10694678.

Description

Replacement wire harness that reconnects an appliance's electrical components to restore reliable power and signal paths for controls and motors. Use when worn or damaged wiring causes intermittent operation or control failures. What it does:

• Routes and links power and signal lines between the control board and components.
• Restores reliable connections to eliminate intermittent or lost function.
• Common symptom fixes: appliance won't start, controls or displays unresponsive, specific cycles or features fail.
• Helps address visible wiring damage, burned connectors, or loose plug connections.

What's included: One wire harness. Install notes:

• Disconnect power (and water, if applicable) before beginning any work.

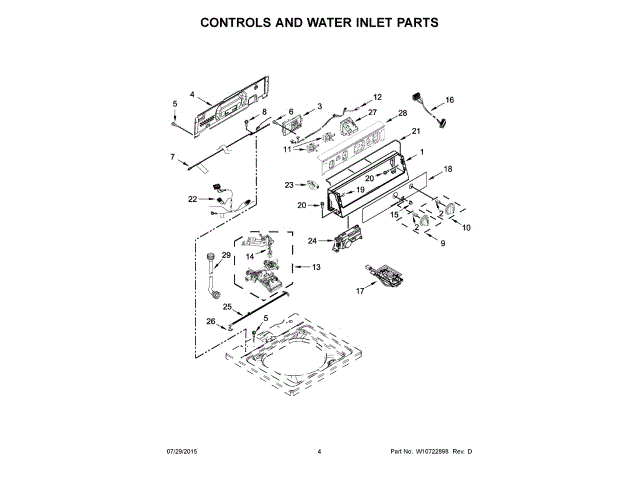

• Follow the appliance's service manual or parts diagram to confirm routing and connector orientation.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Do not modify the harness; secure wiring to prevent pinching and avoid contact with high-heat areas.
