Best Seller
Manufacturer Part

Whirlpool W11677713 Wire Harness OEM Part

Manufacturer's Part Number: W11677713
Genuine Whirlpool part
Appliance Compatibility Tool
$121.74

Secure and trusted checkout with

Out Of Stock

Usually ships within 4 - 14 days

Call us 1-877-477-7278
Need Help? Chat with a Pro

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11677713 replaces AP7215474, W10832778.

Description

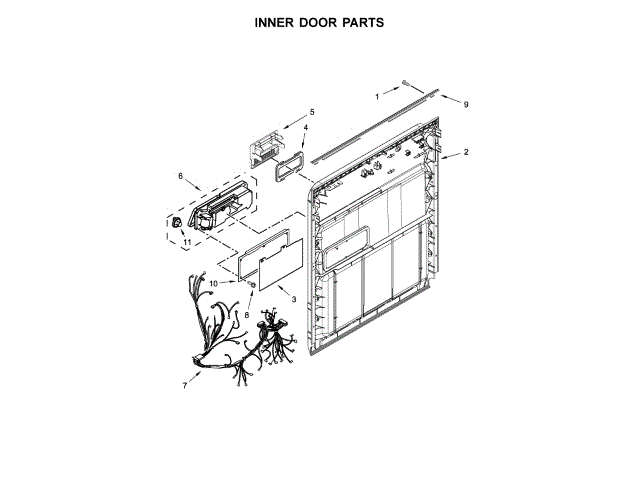

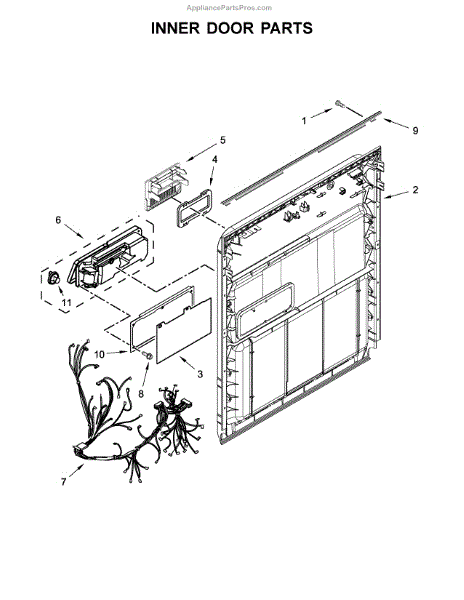

The Harnes-Wire is an OEM component specifically designed for Whirlpool dishwashers. It is part of the control board assembly and works to route power and signals throughout the dishwasher.

Causes of a bad harness-wire can include shorts, cuts or abrasions to the wiring over time due to normal wear and tear in the dishwasher interior. Corrosion or damage around connector pins can also interfere with proper connections.

Symptoms of a bad harness-wire include:

  • The dishwasher not operating or starting
  • Features like heating and washing not functioning
  • Random cycling or behavior
  • Error codes displayed
  • Connections coming loose around the control board

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Have questions? Ask our pros!

Contact us in a way that is convenient for you

Call us 1-877-477-7278
Need Help? Chat with a Pro
Or ask a question by filling in the form

Share your thoughts with other customers

Ask a Question

Cross Reference Information

Whirlpool W11677713 Wire Harness OEM Part

Part Number:
OEM21646431
Manufacturer's Part Number:
W11677713

Fits 19 models

ManufacturerModel NumberDescription
AmanaADB1300AFB1Dishwasher
AmanaADB1300AFS1Dishwasher
AmanaADB1300AFW1Dishwasher
AmanaADB1400AGB0Dishwasher
AmanaADB1400AGB1Dishwasher
AmanaADB1400AGB3DISHWASHER
AmanaADB1400AGS0Dishwasher
AmanaADB1400AGS1Dishwasher
AmanaADB1400AGS2DISHWASHER
AmanaADB1400AGS3DISHWASHER
AmanaADB1400AGW0Dishwasher
AmanaADB1400AGW1Dishwasher
AmanaADB1400AGW3DISHWASHER
WhirlpoolWDF130PAHB1Dishwasher
WhirlpoolWDF130PAHB2DISHWASHER
WhirlpoolWDF130PAHS1Dishwasher
WhirlpoolWDF130PAHS2DISHWASHER
WhirlpoolWDF130PAHW1Dishwasher
WhirlpoolWDF130PAHW2DISHWASHER
