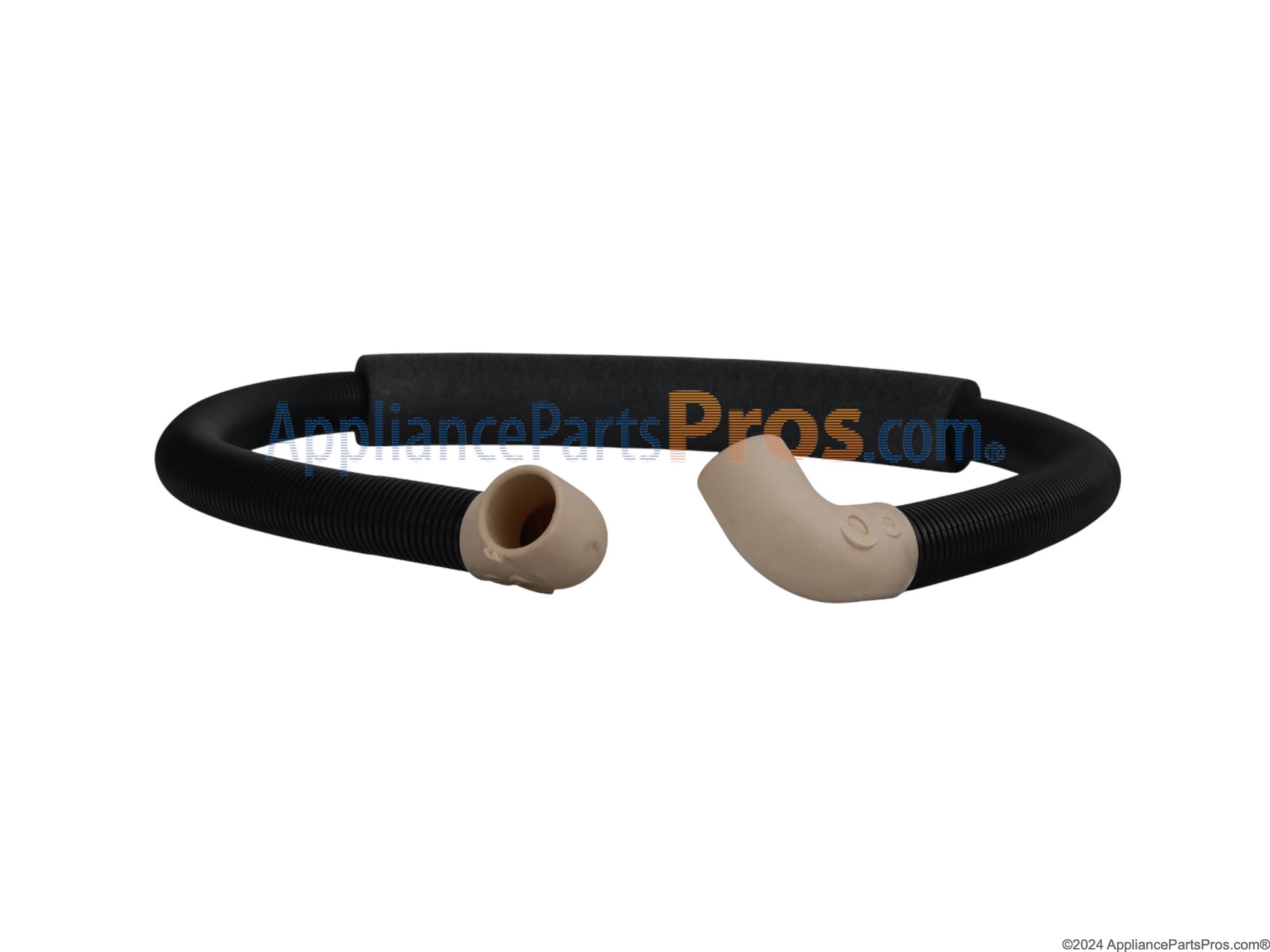

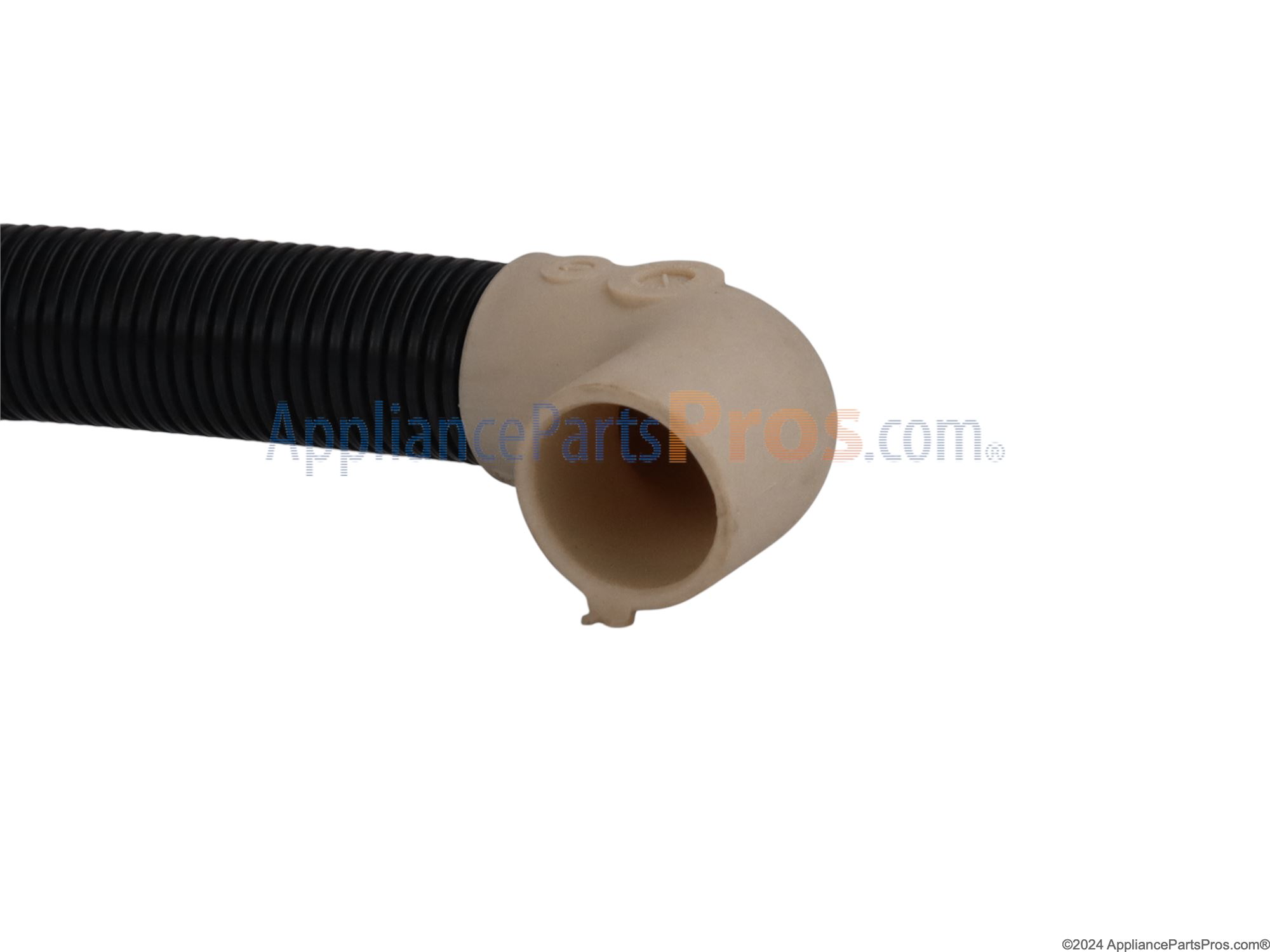

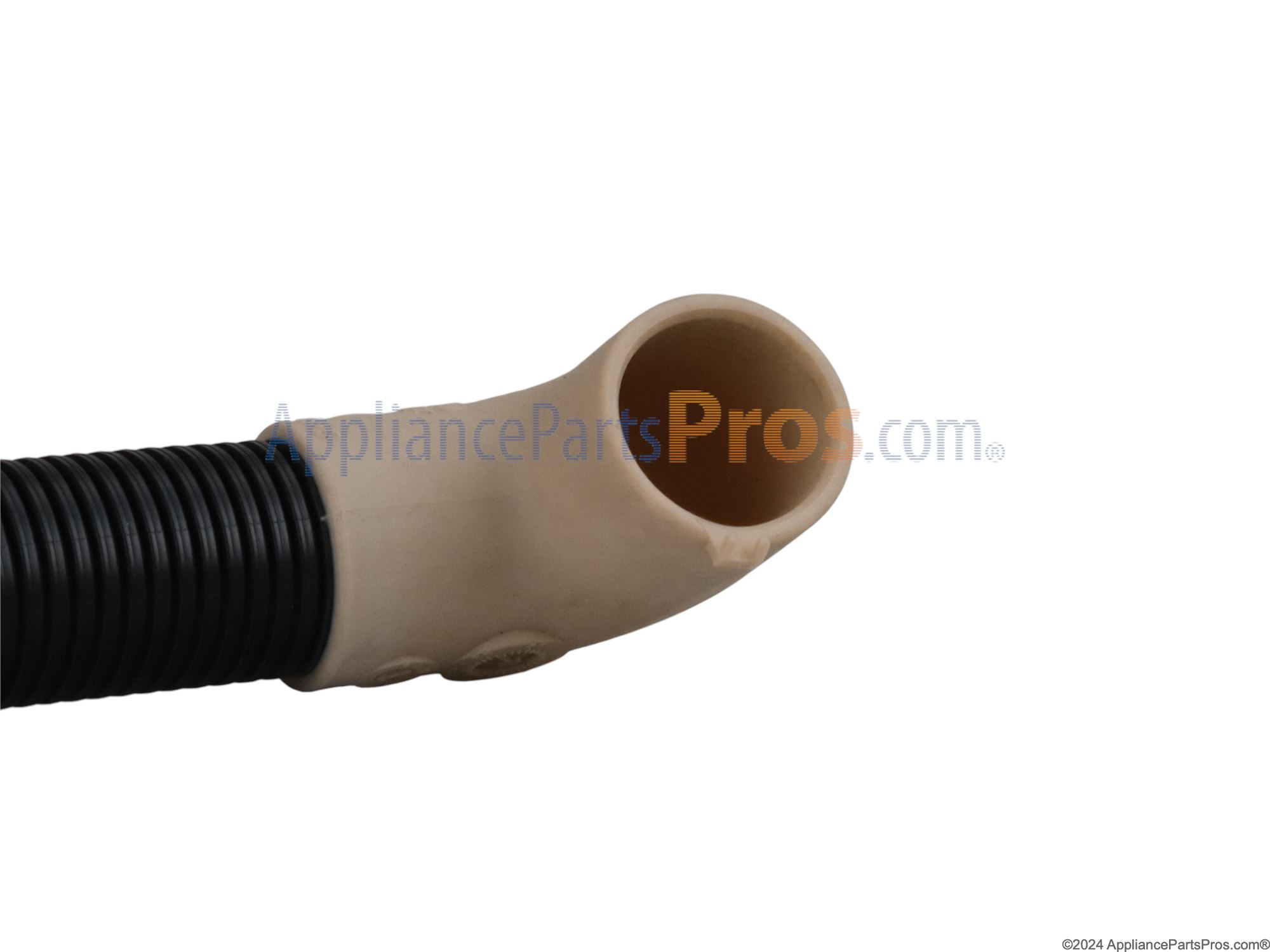

Whirlpool WPW10272563 Outlet Hose (Inner) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10272563 replaces AP6018294, W10272563, 1552287, PS11751596.

Description

This inner outlet hose routes water from the unit's internal pump/sump to the discharge path. Replacing a cracked, kinked, or clogged hose restores proper water flow and helps prevent leaks or cycle interruptions.

• Directs water from the internal pump/sump to the outlet within the machine
• Maintains a watertight path when secured with clamps
• Wear, heat, or mineral buildup can cause cracks, kinks, or blockages
• Common symptoms: leaks inside/under the unit, slow or no draining, restricted flow, or drain-related error messages

What's included: 1 inner outlet hose Install notes:

• Disconnect power and turn off the water supply before servicing
• Expect residual water; place towels or a pan to catch spills
• Note hose routing and clamp positions; transfer existing clamps or install new ones
• Seat the hose fully on fittings, tighten clamps evenly, and perform a short test run to check for leaks
