Whirlpool WPW10289489 Door Shelf Bin OEM Part

I fixed my fridge freezer side by side, first by watching appliance parts pros video to see if i could fix it, second i purchsed the part again from APP, received within 2 days, followed video and now the freezer is frozen and the fridge is at 38 degrees and wonderful. Thanks again appliance parts pros for the great videos. I have used and repaired many items and saved a ton of service call money.

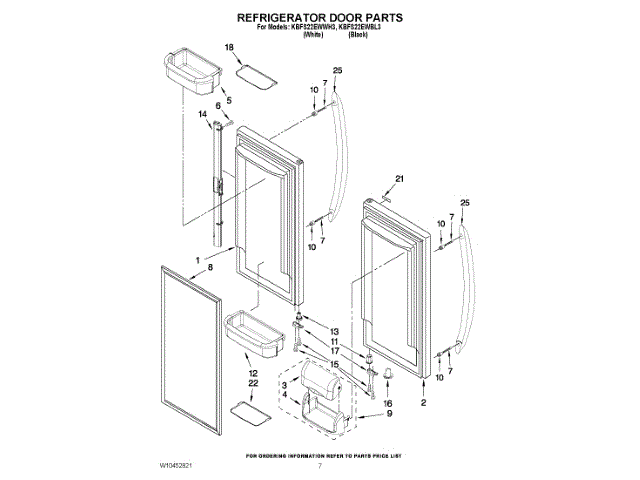

Ordered replacement. The hard part was figuring the exact part to purchase. There were several somewhat different shelves with the same key letter in the exploded parts diagram. The shelf didn’t seem exactly to match any, based on the graph-paper part description. So I measured about three times and ordered the one that seemed closest. It was the one! Three minutes to empty the old shelf, pop it out of the door, remove the mat, pop the new one in, and replace the mat and items.

Installed new Shelf Bin (perfect match).

Replace the old one with a new one.

Note, I want to clarify since nothing else makes this clear, that this is exactly the correct bin to fit the bottom shelf (designed for milk etc) on the 'wider' of the two doors in my KitchenAid French Cabinet Refrigerator. This bin is the largest of the several bins used on the doors of this fridge - the others are more narrow (for facing door) or not as deep (for above this bin). I was keeping my fingers crossed that I'd ordered the right bin and was very happy with the result!
