Whirlpool WPW10258544 Shaft (Hex Drive) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10258544 replaces AP6018027, W10258544, 4443380, PS11751328.

Description

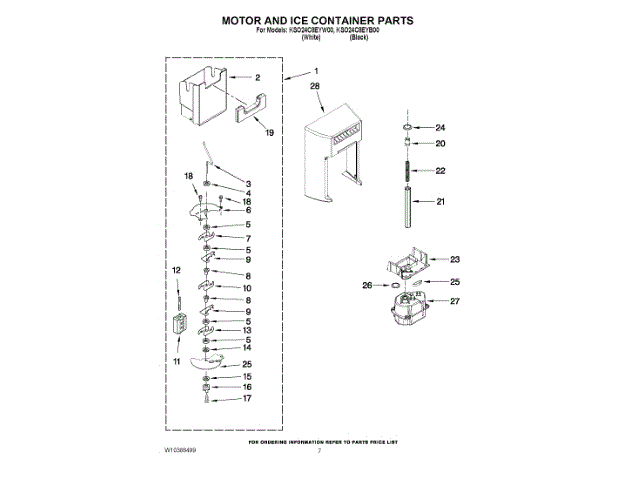

This hex drive shaft sits inside the ice bucket auger/crusher assembly. It transfers rotation from the dispenser motor to the auger so ice dispenses and crushes smoothly, helping restore consistent ice flow when the original shaft is worn.

• Couples the dispenser motor to the ice-bin auger/crusher assembly
• Maintains positive hex engagement to reduce slippage under load
• Helps with symptoms such as no ice dispensing, auger not turning while the motor runs, clicking/grinding during dispense, or a visibly rounded/corroded shaft
• Replace if bent, stripped, or excessively worn

What's included: 1 hex drive shaft Install notes:

• Disconnect power and remove the ice bin before service
• Disassemble the auger/crusher stack, noting the exact order of blades, spacers, and washers (take a photo for reference)
• Transfer all components to the new shaft in the same orientation and reassemble per your model's service information
• Ensure the hex end fully seats in the drive coupling; verify smooth auger rotation before reinstalling the bin; wear cut-resistant gloves—edges and blades are sharp
