Product Details
Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.
Cross Reference Information
Part Number WP22002180 replaces AP6006268, 22002180, 2087680, 454927, PS11739336.
Description
This electromechanical washer timer controls cycle sequencing so the washer advances through fill, wash, spin and drain stages reliably. Replacing a failed timer restores proper cycle progression and timing control. What it does:
- Rotates internal cams to switch washer functions between fill, agitate, spin and drain
- Sends power to appropriate components at each cycle step
- Commonly used when the washer won't advance cycles, gets stuck in one mode, or fails to spin
- Works as the central cycle-control device for compatible top-load washer models
What's included: One mechanical timer assembly Install notes:
- Disconnect power before starting and verify outlet is dead

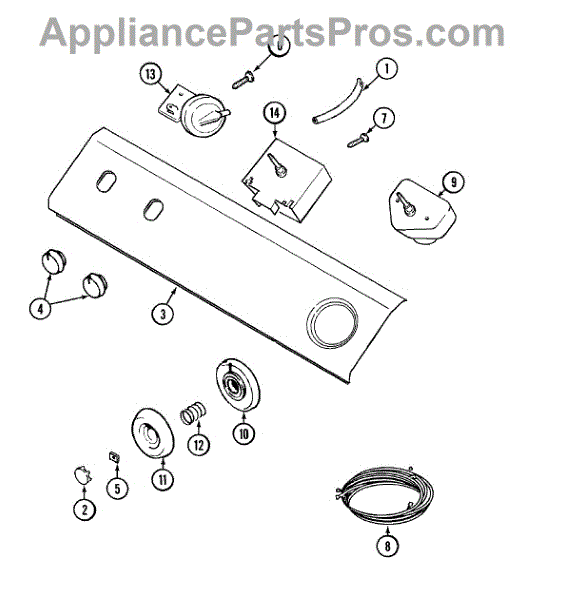

- Remove control console or rear access panel to reach the timer; retain fasteners and note wire locations
- Match harness connections exactly; do not force terminals—use photos or labels to ensure correct reassembly
- After installation, test cycle operation before fully reassembling the cabinet
