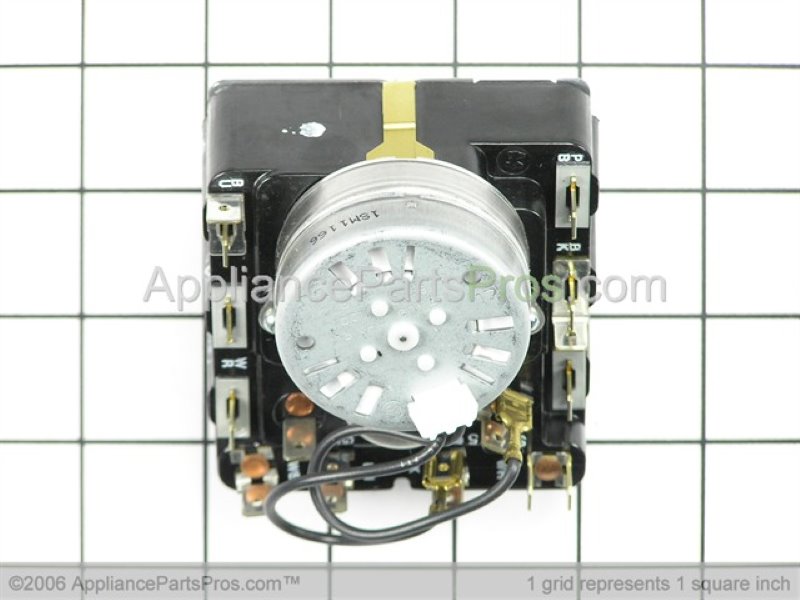

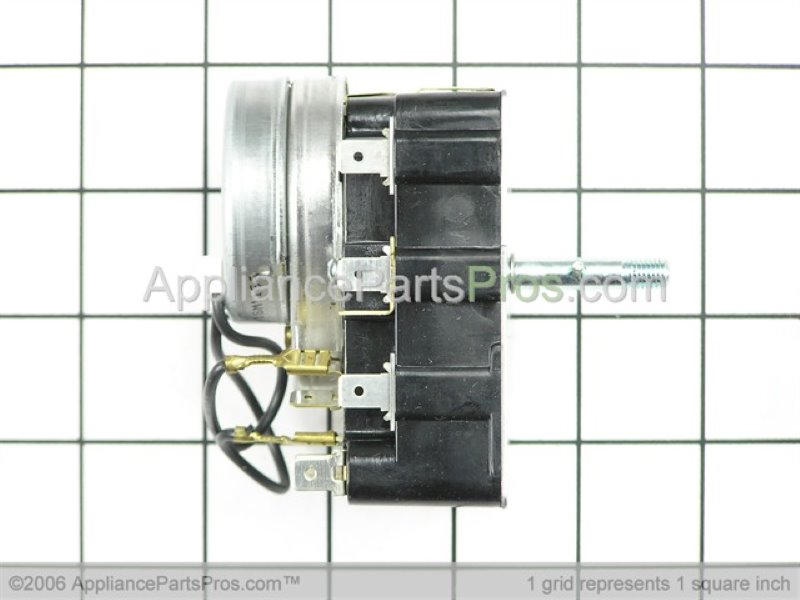

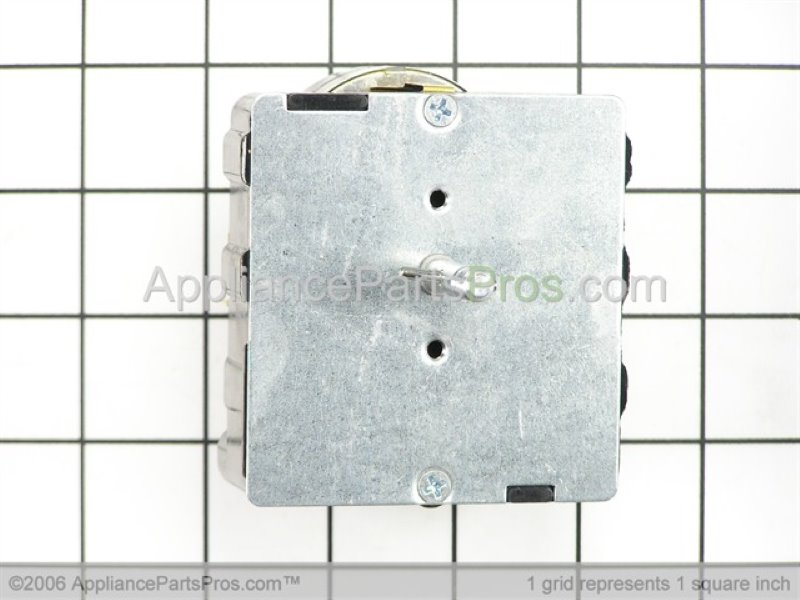

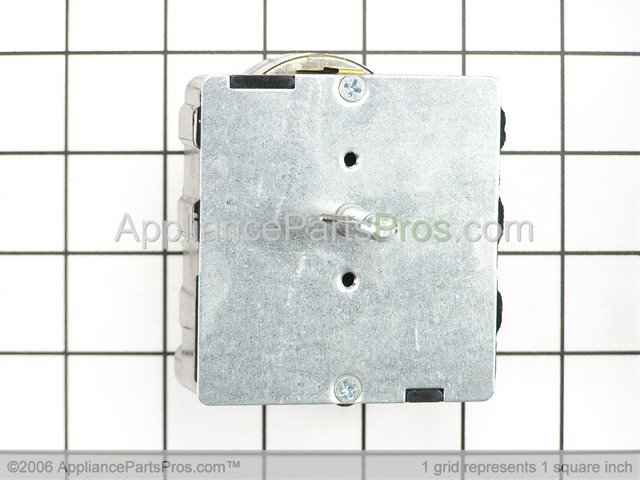

Whirlpool WP306039 Timer (Mechanical Cycle Control) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP306039 replaces AP6007553, 306039, 3-6039, 4432690, PS11740670.

Description

This mechanical cycle timer controls and advances a laundry appliance's timed cycles, allowing the dryer or washer to move through pre-set wash or dry steps for consistent operation. What it does:

• Selects and advances timed cycles by routing power to the appliance's motors, heater, and other components
• Enables user selection of cycle length and type via the control knob
• Common symptoms: control knob won't turn, cycles won't advance, or appliance won't start/complete cycles

What's included: One mechanical timer assembly Install notes:

• Disconnect power (unplug unit or shut off breaker) before beginning work
• Remove console/control panel per service manual to access and replace the timer
• Handle the timer carefully to avoid bending terminals; ensure proper alignment when installing
