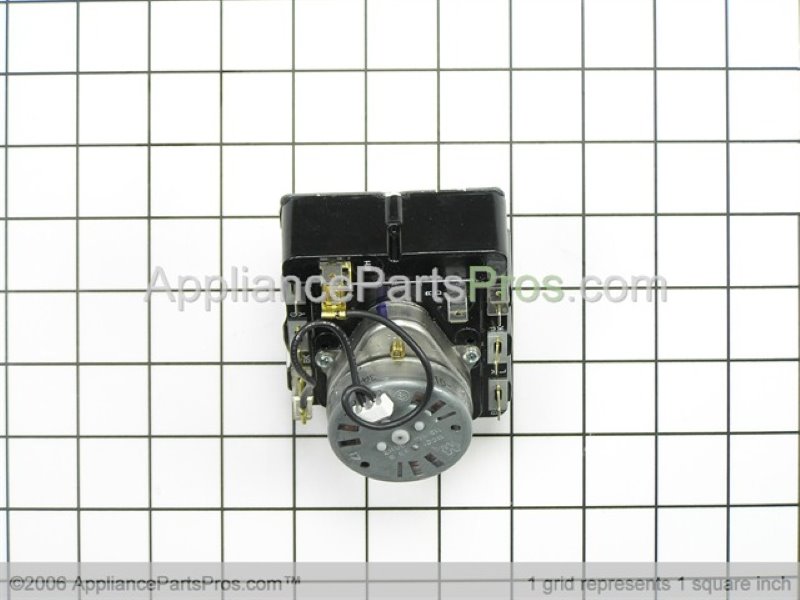

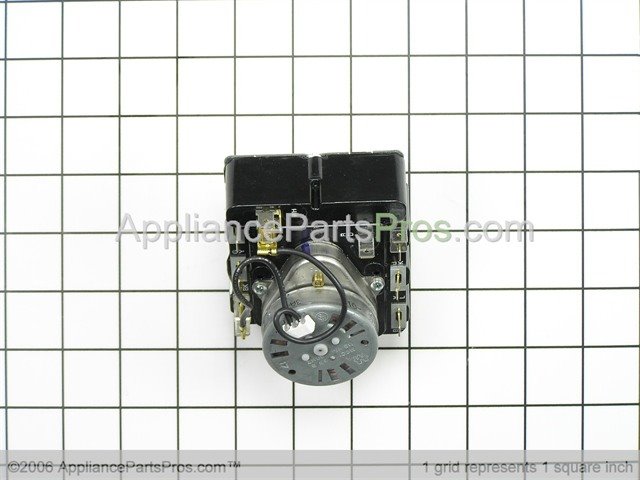

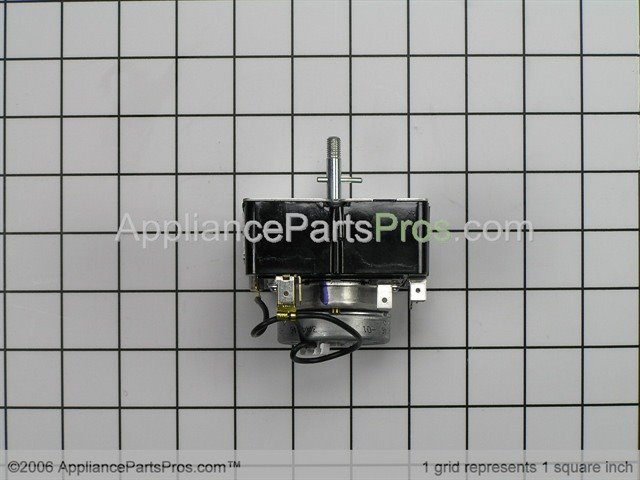

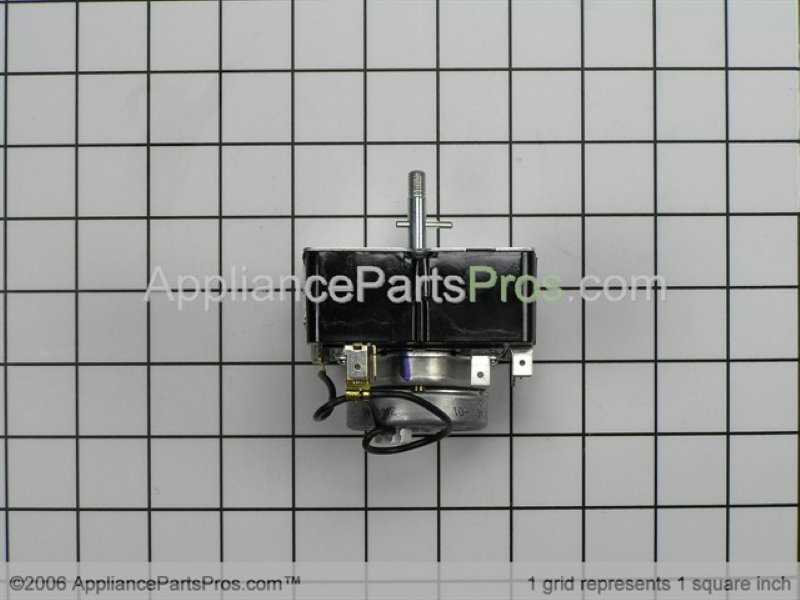

Whirlpool WP306534 Timer (Rotary) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP306534 replaces AP6007560, 306534, 3-6534, 483842, PS11740677.

Description

This rotary timer controls cycle sequencing and run time for compatible Whirlpool appliances, restoring proper cycle advancement and timing when the original timer fails. Use it to replace a worn or non-responsive timer assembly and regain normal operation. What it does:

• Advances the appliance through wash/dry or cook cycles by switching power to motors, heaters and valves.
• Replaces failed timing/selection functions; common symptom is a unit that won't advance to the next cycle.
• Can cause intermittent or no operation of timed components when contacts wear or wiring fails.
• May stop a cycle prematurely or produce erratic timing if internal switch cams or contacts are damaged.

What's included: One complete timer assembly. Install notes:

• Disconnect power (unplug or shut off breaker) before attempting any service.
• Access typically from the control panel — remove retaining screws and control knobs as needed.
• Note wire positions or take a photo before removing the harness; reinstall harness and shaft in original alignment.
