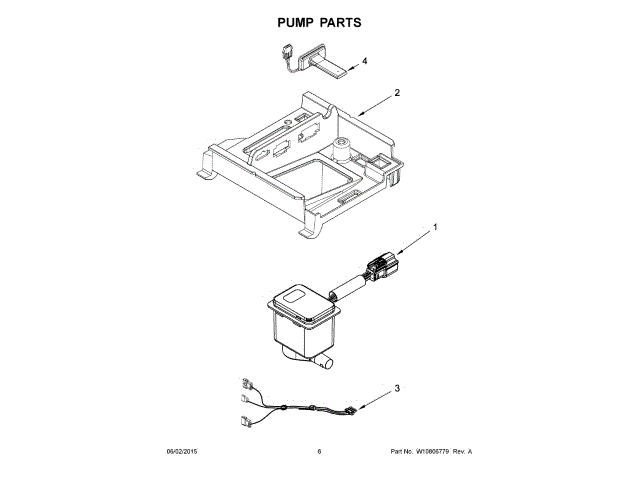

Whirlpool WPW10485955 Wire Harness (Pump) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10485955 replaces AP6022179, W10485955, 4447587, PS11755511.

Description

This pump wire harness connects the pump to the appliance's power and control wiring, restoring reliable electrical connection for proper draining. Use it to replace damaged, corroded, or disconnected pump wiring that can stop pump operation. What it does:

• Routes power and control signals between the appliance control and the drain pump to enable pump operation.
• Replaces frayed, melted, or disconnected wires and mating connectors that can cause intermittent or no pump activity.
• Addresses common symptoms like a washer that won't drain, pump not running, or visible connector damage.
• Helps prevent arcing from loose connections by restoring secure electrical contacts.

What's included: One pump wire harness. Install notes:

• Disconnect power to the appliance before starting—always follow lockout/tagout safety practices.
• Access the pump per your model's service instructions; note wire routing and connector orientation before removal.
• Match and fully seat each connector; secure the harness away from moving parts and heat sources.
