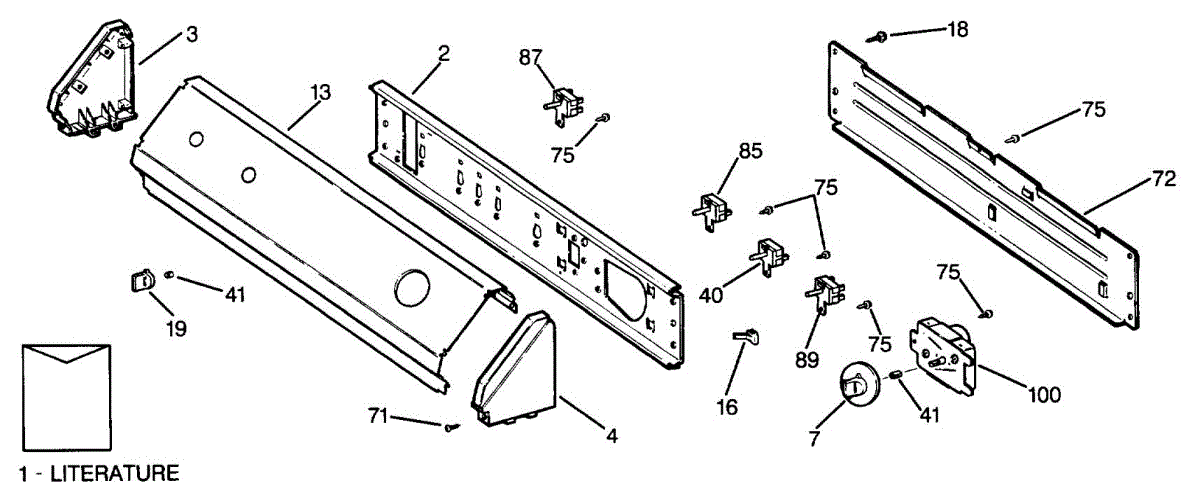

Parts for Ge DLL2650RAL: 01 - Section1 Parts

Color: black. Measures about 3 inches in diameter.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

The Rotary Start Switch is an OEM replacement part for GE dryers. It is silver and black in color, with a white D-shaped shaft. The rotary start switch is found inside the dryer control panel, and when actuated, it starts the dryer.

Causes of a bad start switch include prolonged use resulting in normal wear and tear, internal component failure, or accidental external damage.

Symptoms of a bad start switch are:

• The dryer failing to start or operate as selected
• Intermittent or inconsistent operation

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Size: 8-32 t. Includes 12 screws.

This gas valve regulates and safely delivers fuel to your dryer's burner. When operating correctly, it opens for ignition and closes when heat is satisfied, providing consistent, reliable heating for effective drying.

• Opens to allow gas into the burner when the ignition system calls for heat
• Closes to stop gas flow during cycling or if ignition fails
• Possible symptoms: dryer runs but no heat; igniter glows yet no flame; intermittent heat or long dry times
• Helps restore proper burner ignition and stable flame

• Disconnect power and shut off the gas supply before servicing
• Work in a well-ventilated area; check all connections for leaks with a non-corrosive leak-detection solution after installation
• Transfer any brackets, fittings, or orifices from the original valve as required; secure connections
• Confirm gas type (natural/LP) and regulator/orifice settings per the service manual before restoring service

This gas valve regulates and safely delivers fuel to your dryer's burner. When operating correctly, it opens for ignition and closes when heat is satisfied, providing consistent, reliable heating for effective drying.

• Opens to allow gas into the burner when the ignition system calls for heat
• Closes to stop gas flow during cycling or if ignition fails
• Possible symptoms: dryer runs but no heat; igniter glows yet no flame; intermittent heat or long dry times
• Helps restore proper burner ignition and stable flame

• Disconnect power and shut off the gas supply before servicing
• Work in a well-ventilated area; check all connections for leaks with a non-corrosive leak-detection solution after installation
• Transfer any brackets, fittings, or orifices from the original valve as required; secure connections
• Confirm gas type (natural/LP) and regulator/orifice settings per the service manual before restoring service
