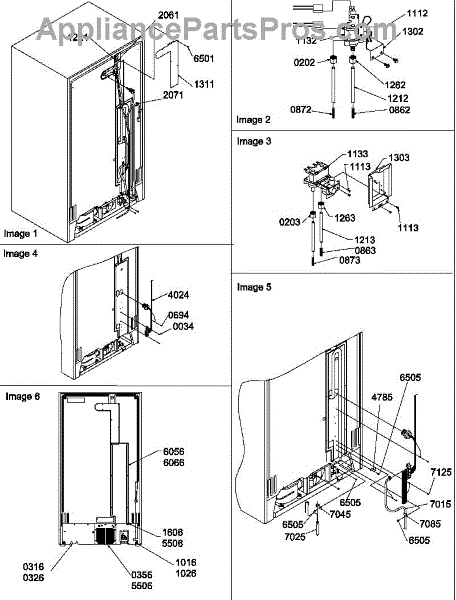

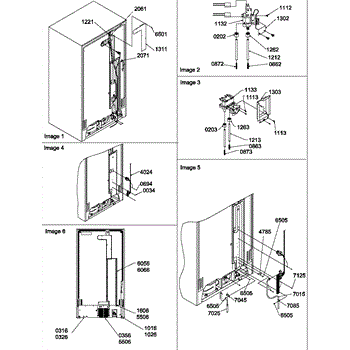

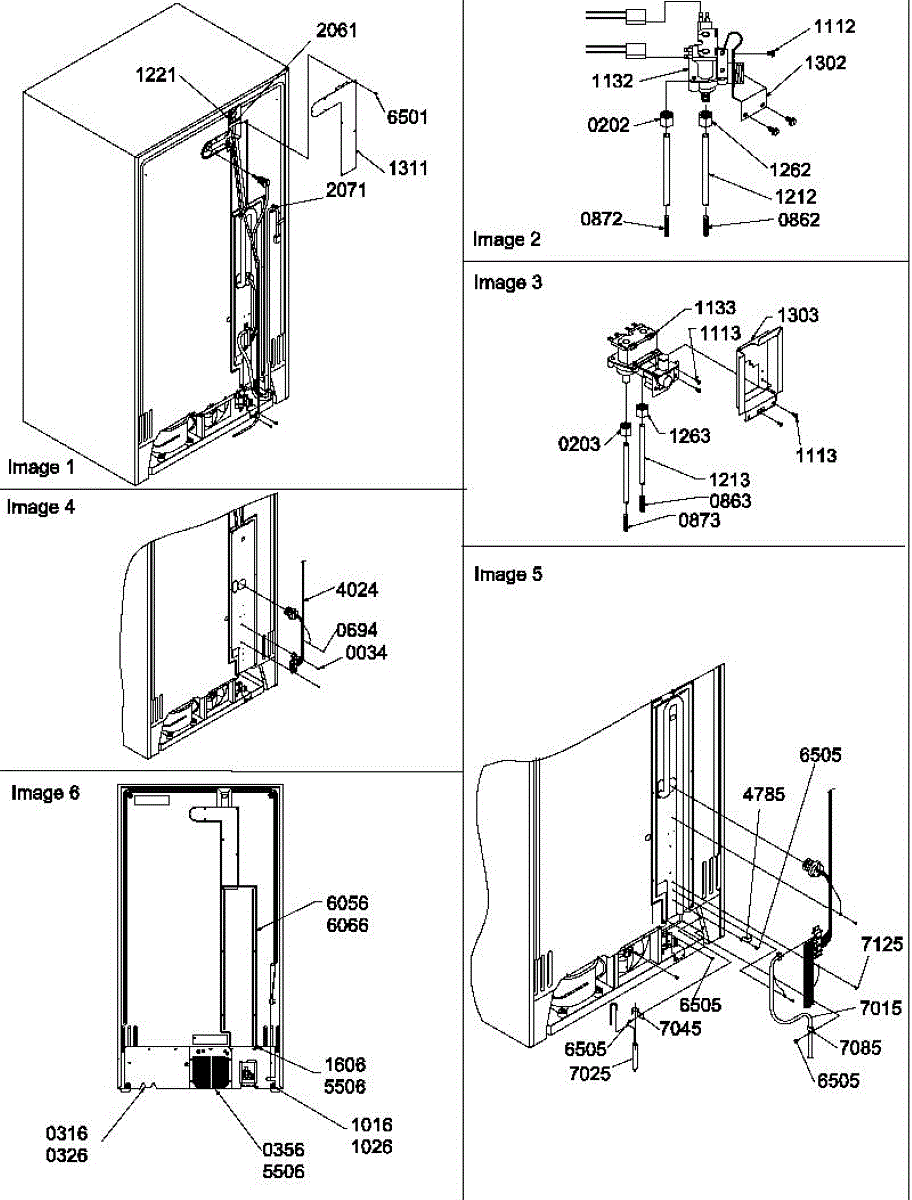

Parts for Amana SRD27S2E / P1190329W E: 01 - Cabinet Back Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This inlet valve controls water flow into the appliance, restoring proper fill cycles and stopping leaks when a valve fails. Replace a faulty inlet valve to regain consistent, reliable water delivery. What it does

• Opens and closes to allow water into the appliance during fill cycles.
• Replaces a valve that can cause no water, slow fill, or intermittent filling.
• Stops unwanted water flow or continuous filling when internal seals fail.
• Prevents leaks caused by a cracked or worn valve body or seals.

• Disconnect power and shut off the water supply before starting any work.
• Relieve residual water pressure and place towels or a pan to catch drips.
• Basic hand tools required; follow OEM instructions.

This drier is the factory replacement air/gas flow assembly that helps maintain proper airflow and drying performance in compatible laundry dryers. Replacing a worn drier restores consistent drying and reduces overheating risk. What it does:

• Directs and stabilizes heated air through the drum for efficient drying
• Helps prevent restricted airflow that can cause long dry times or damp laundry
• Supports safe exhaust flow to reduce the chance of overheating or lint buildup
• Works with the dryer's heating and ventilation components to maintain normal operation

• One drier assembly as shown

• Disconnect electrical power before beginning service; if this is a gas dryer, turn off and disconnect the gas supply
• Follow the dryer manufacturer's service manual for disassembly and reassembly steps
• Use appropriate hand tools and avoid forcing parts; inspect venting and lint traps while replacing

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This part has been discontinued and is no longer available.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8-32 x .312 inch.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Size: 8-32 x .312 inch.

Size: 8 x 1-1/4 inch.

This drive coupling connects the washer motor to the transmission, transferring power to spin and agitate the tub. Replacing a worn coupling restores proper drivetrain engagement and reduces slipping, grinding, or loss of agitation. What it does:

• Transfers rotational force from the motor to the transmission so the washer can agitate and spin.
• Failsafe for worn motor-to-gearcase connection; a broken coupling commonly causes no-agitate or no-spin symptoms.
• Can produce burning smell, loud grinding, or slipping when deteriorated.
• Helps prevent further damage to the motor or transmission by isolating shock loads.

• Disconnect power and water before starting any repair.
• Basic disassembly of the washer cabinet and access to the motor/transmission area is required.
• Verify correct alignment of tabs/slots during installation to ensure proper engagement.
