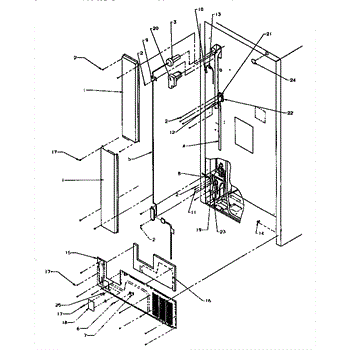

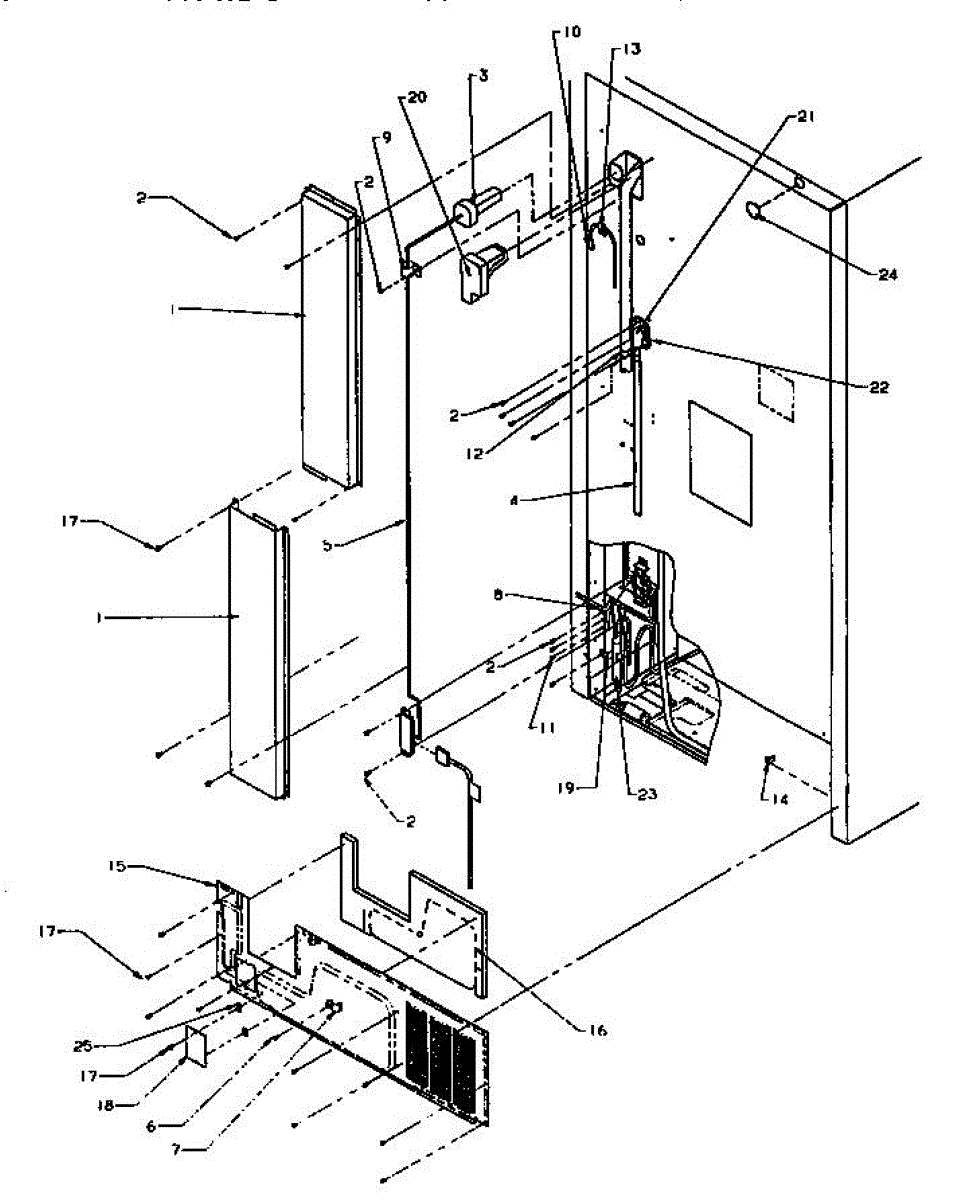

Parts for Amana TR22S4E / P1196201W E: 01 - Cabinet Back Parts

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

This elbow drain tube redirects drain water through a tight 90° turn to the appliance drain path, restoring proper drainage and preventing leaks from cracked or damaged tubing. A direct-fit replacement for worn or broken drain elbows. What it does

• Guides wastewater from the pump or internal drain outlet into the drain hose or drain channel
• Restores a secure, leak-free connection when the original elbow is cracked, split or deformed
• Helps maintain proper flow by providing a smooth, angled transition that reduces kinking
• Commonly replaced when you see leaks, visible damage, or poor drainage

• One elbow drain tube

• Disconnect power and water before starting any repair
• Remove access panels as needed to reach the original elbow; replace with the new elbow in the same orientation
• Ensure all clamps or retaining tabs are secured to prevent leaks; test with a short water/run cycle

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.
