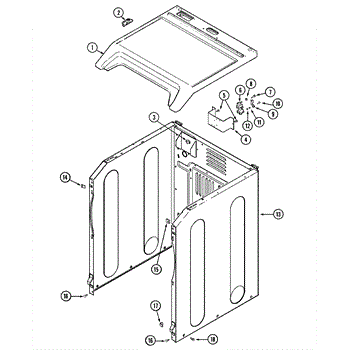

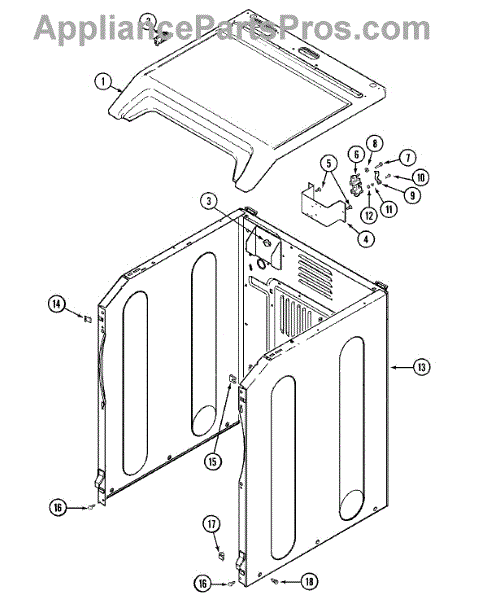

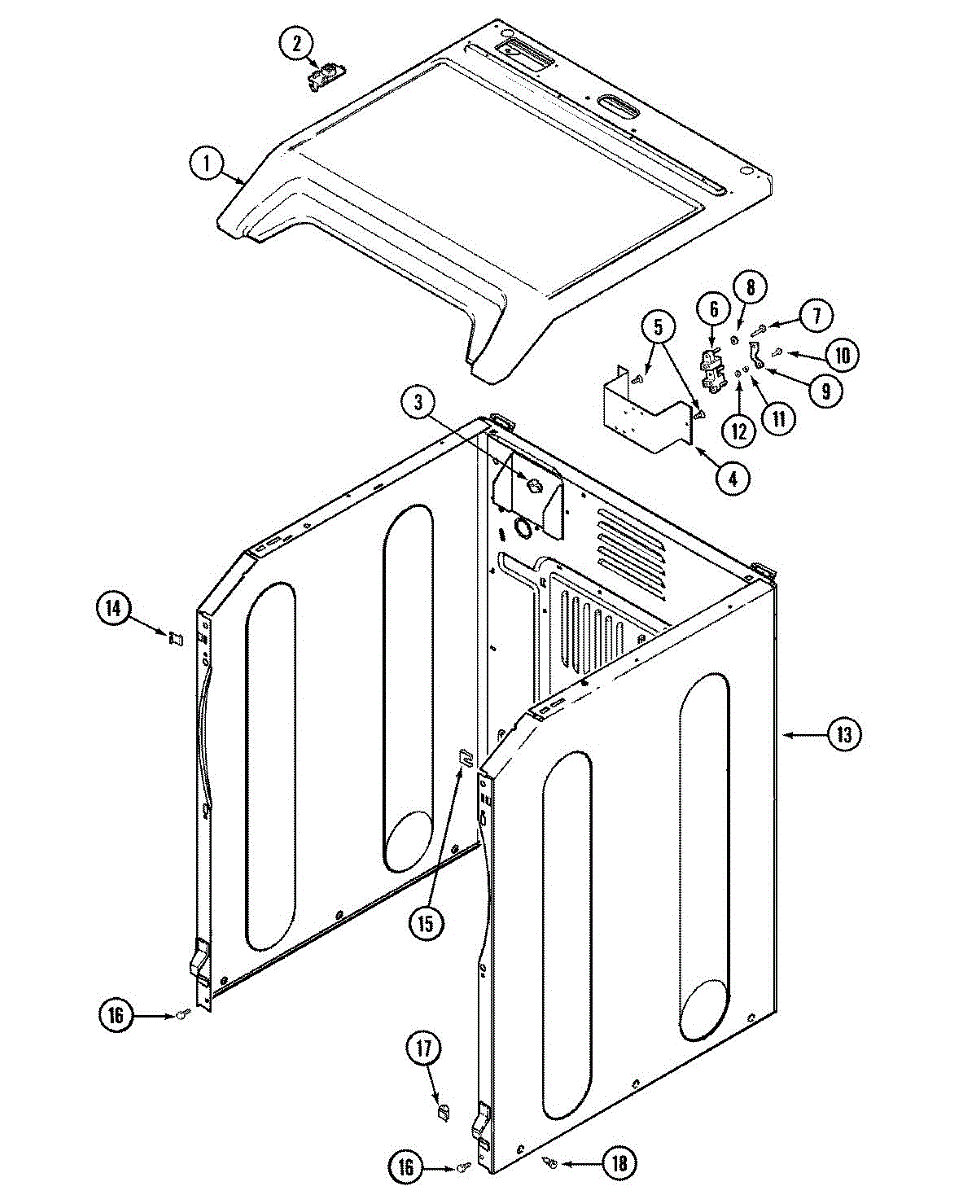

Parts for Maytag MDE5000AZW: 01 - Cabinet Parts

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

This terminal block connects the appliance to household power, providing a secure point for the incoming power cord wires. Replacing a damaged terminal block restores a solid electrical connection and reduces fire risk. What it does:

• Secures and organizes incoming power cord wires to the appliance's internal wiring
• Provides stable electrical contact for consistent power delivery
• Prevents loose or arcing connections that can cause intermittent power or overheating
• Common symptoms: appliance won't power on, intermittent power loss, visible burning or melted plastic at the power entry point

• Disconnect power at the breaker and verify the appliance is de-energized before starting
• Confirm wire placement and tightness; replace any scorched or damaged wiring or connectors
• Use proper tools and follow the appliance wiring diagram; tighten terminal screws to manufacturer torque if specified

This terminal block provides the electrical connection point between the washer's power cord and the appliance wiring, restoring a secure, stable supply for safe operation. It replaces a damaged or corroded connection assembly. What it does

• Secures and insulates power cord wires where they enter the washer to prevent loose connections and arcing
• Restores reliable incoming power when a burned, loose, or broken terminal causes intermittent power or no power
• Helps prevent electrical resistance and heat buildup at the cord connection
• Matches OEM mounting and terminal layout for a direct replacement

• One terminal block assembly as shown

• Disconnect the washer from power before servicing to avoid shock or injury
• Inspect wire colors and terminal positions, then transfer wires to the same terminals on the replacement part
• Typical installation requires basic hand tools (screwdriver, nut driver); some models may need partial cabinet access
• If you see melted insulation or other wiring damage, replace affected wiring.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

Size: 10-32 inch.

Specs: 7/32 INCH

Color: White This part has been discontinued and is no longer available.

This clip is a small retaining fastener used to secure components inside your appliance, keeping parts aligned and in place during operation. Replacing a worn or missing clip helps stop looseness, vibration, and premature wear.

• Holds a designated part firmly to its mating surface
• Maintains proper alignment to reduce rattling and shifting during cycles
• Symptoms of failure: parts that won't stay attached, misalignment, buzzing/rattling noises, or a visibly bent/missing clip
• Restores a secure, factory-style fit

• Disconnect power; turn off water supply before servicing
• Note the original clip position and orientation (a quick photo helps)
• Use needle-nose pliers to release/install; avoid over-bending the clip
• Ensure the component is fully seated and secure before reassembly and testing

Screw kit for front panel.

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

Spesc: #12 pozi - drive
