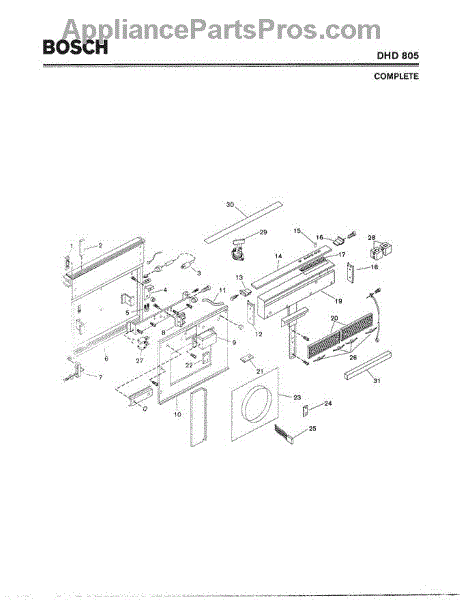

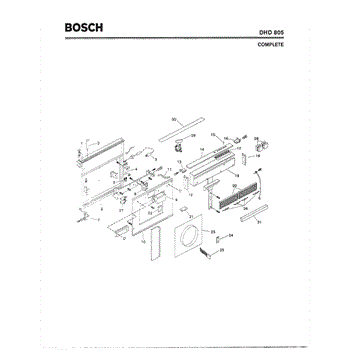

Parts for Bosch DHD805: 01 - Complete Parts

A small plastic spacer that positions and supports dishwasher panels and components to ensure proper alignment and reduce wear. Replaces worn or missing spacers to restore correct gaps and reduce rubbing or vibration noise. What it does:

• Keeps panels and trim correctly spaced for smooth operation and a flush appearance
• Prevents metal-to-metal contact that can cause scratching or wear
• Reduces rattling and vibration by maintaining stable component spacing
• Helps maintain alignment of assemblies during door operation

• Disconnect power (and water if servicing a dishwasher) before starting any repair
• Handle small parts carefully; keep track of all fasteners and spacers during disassembly
• Install in the original locations; press or seat spacers fully before reassembling panels
• Verify proper alignment and operation after reassembly; do not overtighten fasteners

Fix intermittent power or control failures in your range hood. This wire harness with plug restores electrical connections between components.

This Main Wire Harness is the primary electrical cable assembly that links control boards to motors, valves and sensors so your appliance receives power and signals reliably. Replacing a damaged harness restores proper electrical connections and operation. What it does:

• Carries power and control signals between the appliance control module and major components.
• Restores lost or intermittent electrical connections that can cause components to stop working or behave erratically.
• Helps resolve symptoms such as no power to certain components, intermittent operation, or failure of cycles to start or complete.
• Provides factory-style connectors and routing to maintain proper electrical function and safety.

• One Main Wire Harness assembly as shown.

• Disconnect all power (unplug or shut off breaker) before starting any work.
• Inspect connectors and wire insulation for heat or water damage; replace harness if any damage is found.
• Route and secure the harness following original clips and ties to avoid chafing or contact with hot surfaces.

This right-side end cap secures and finishes the edge of the assembly, restoring proper alignment and appearance. It replaces a worn, cracked, or missing end cap so the appliance door or panel closes and looks correct. What it does:

• Caps and protects the right outer edge of the assembly to prevent snagging and damage
• Helps maintain proper panel alignment and a snug fit during normal use
• Stops drafts, light leaks, or rattling caused by a damaged or missing end cap
• Visible trim piece that restores original appearance when cracked or faded

• One right-side end cap

• Typically installs with a few fasteners or clips; inspect adjacent trim for damage before reinstalling
• Disconnect power and follow manufacturer safety steps before servicing any powered door or panel
• Handle carefully to avoid scratching the finish; use manufacturer screws/clips if replacements are needed
• If any retaining clips are broken, replace them to ensure a secure fit

This safety switch monitors temperature levels in the range hood and cuts power to prevent overheating, usually located near the motor housing. Replace if the hood shuts off unexpectedly during normal use, won't start, or runs continuously without responding to controls.
