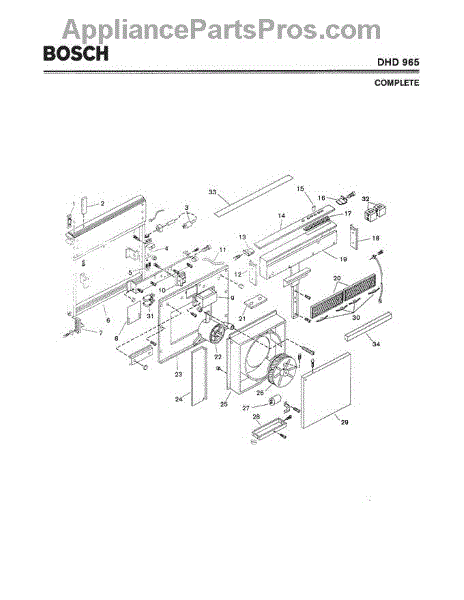

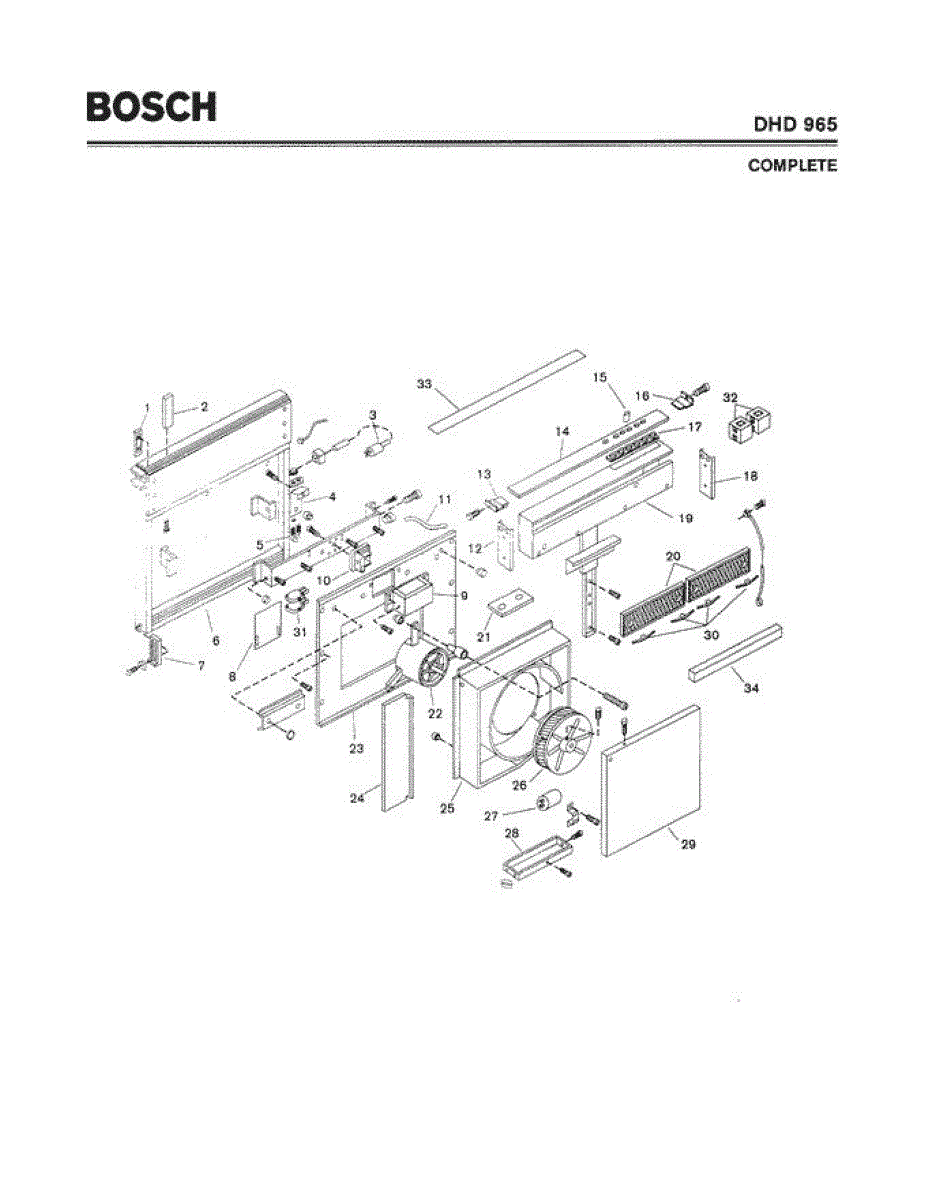

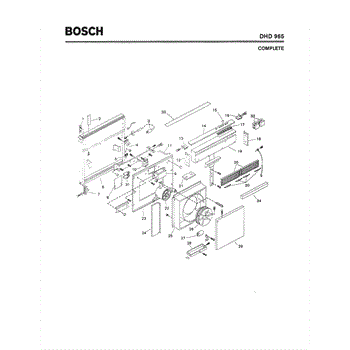

Parts for Bosch DHD965: 01 - Complete Parts

A small plastic spacer that positions and supports dishwasher panels and components to ensure proper alignment and reduce wear. Replaces worn or missing spacers to restore correct gaps and reduce rubbing or vibration noise. What it does:

• Keeps panels and trim correctly spaced for smooth operation and a flush appearance
• Prevents metal-to-metal contact that can cause scratching or wear
• Reduces rattling and vibration by maintaining stable component spacing
• Helps maintain alignment of assemblies during door operation

• Disconnect power (and water if servicing a dishwasher) before starting any repair
• Handle small parts carefully; keep track of all fasteners and spacers during disassembly
• Install in the original locations; press or seat spacers fully before reassembling panels
• Verify proper alignment and operation after reassembly; do not overtighten fasteners

This genuine wire harness with plug routes power and signals between components to restore reliable electrical connections and proper operation. It replaces a damaged or worn harness to help eliminate intermittent power or control failures. What it does:

• Provides a factory-fit connector assembly to link control boards, switches, or motors
• Restores lost or intermittent electrical continuity that can cause no-start or erratic operation
• Replaces frayed, cracked, or heat-damaged wiring that can trigger errors or component failures
• Ensures secure plug-in connections for consistent signal and power transfer

• Disconnect power to the appliance before starting any repairs to avoid shock
• Handle connectors carefully and seat plugs until you hear/feel a positive click
• Route the harness away from sharp edges and heat sources; secure with existing clips or ties
• If access requires panel removal, keep fasteners organized.

This Main Wire Harness is the primary electrical cable assembly that links control boards to motors, valves and sensors so your appliance receives power and signals reliably. Replacing a damaged harness restores proper electrical connections and operation. What it does:

• Carries power and control signals between the appliance control module and major components.
• Restores lost or intermittent electrical connections that can cause components to stop working or behave erratically.
• Helps resolve symptoms such as no power to certain components, intermittent operation, or failure of cycles to start or complete.
• Provides factory-style connectors and routing to maintain proper electrical function and safety.

• One Main Wire Harness assembly as shown.

• Disconnect all power (unplug or shut off breaker) before starting any work.
• Inspect connectors and wire insulation for heat or water damage; replace harness if any damage is found.
• Route and secure the harness following original clips and ties to avoid chafing or contact with hot surfaces.

This right-side end cap secures and finishes the edge of the assembly, restoring proper alignment and appearance. It replaces a worn, cracked, or missing end cap so the appliance door or panel closes and looks correct. What it does:

• Caps and protects the right outer edge of the assembly to prevent snagging and damage
• Helps maintain proper panel alignment and a snug fit during normal use
• Stops drafts, light leaks, or rattling caused by a damaged or missing end cap
• Visible trim piece that restores original appearance when cracked or faded

• One right-side end cap

• Typically installs with a few fasteners or clips; inspect adjacent trim for damage before reinstalling
• Disconnect power and follow manufacturer safety steps before servicing any powered door or panel
• Handle carefully to avoid scratching the finish; use manufacturer screws/clips if replacements are needed
• If any retaining clips are broken, replace them to ensure a secure fit

This scroll box assembly is the pump housing section that helps direct wash water inside the machine for proper circulation and spray. Replacing a damaged scroll box restores proper water flow and helps the appliance clean effectively. What it does:

• Houses the pump impeller and channels water into the spray assembly for normal wash cycles
• Restores proper circulation when the existing housing is cracked, warped, or clogged
• Can stop leaks originating at the pump area when the scroll box is compromised
• May reduce abnormal pump noise caused by damaged internal passages or debris contact

• Disconnect power and water supply before starting any repair
• Access typically requires removing the lower access panel and pump/motor assembly
• Inspect impeller, seals, and fasteners during replacement; replace related seals if they are worn
