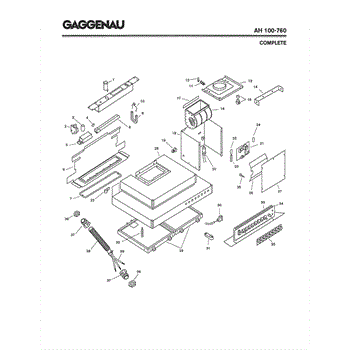

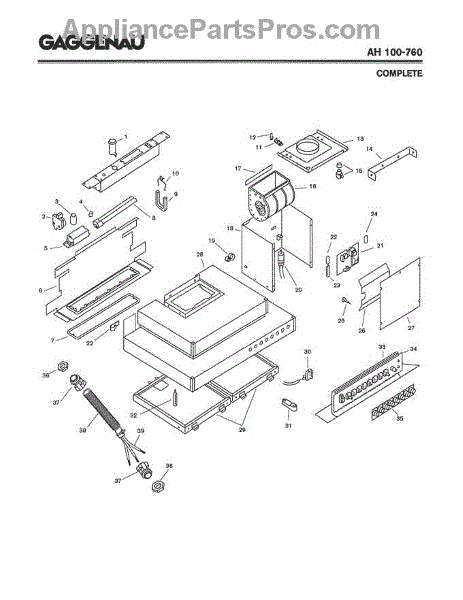

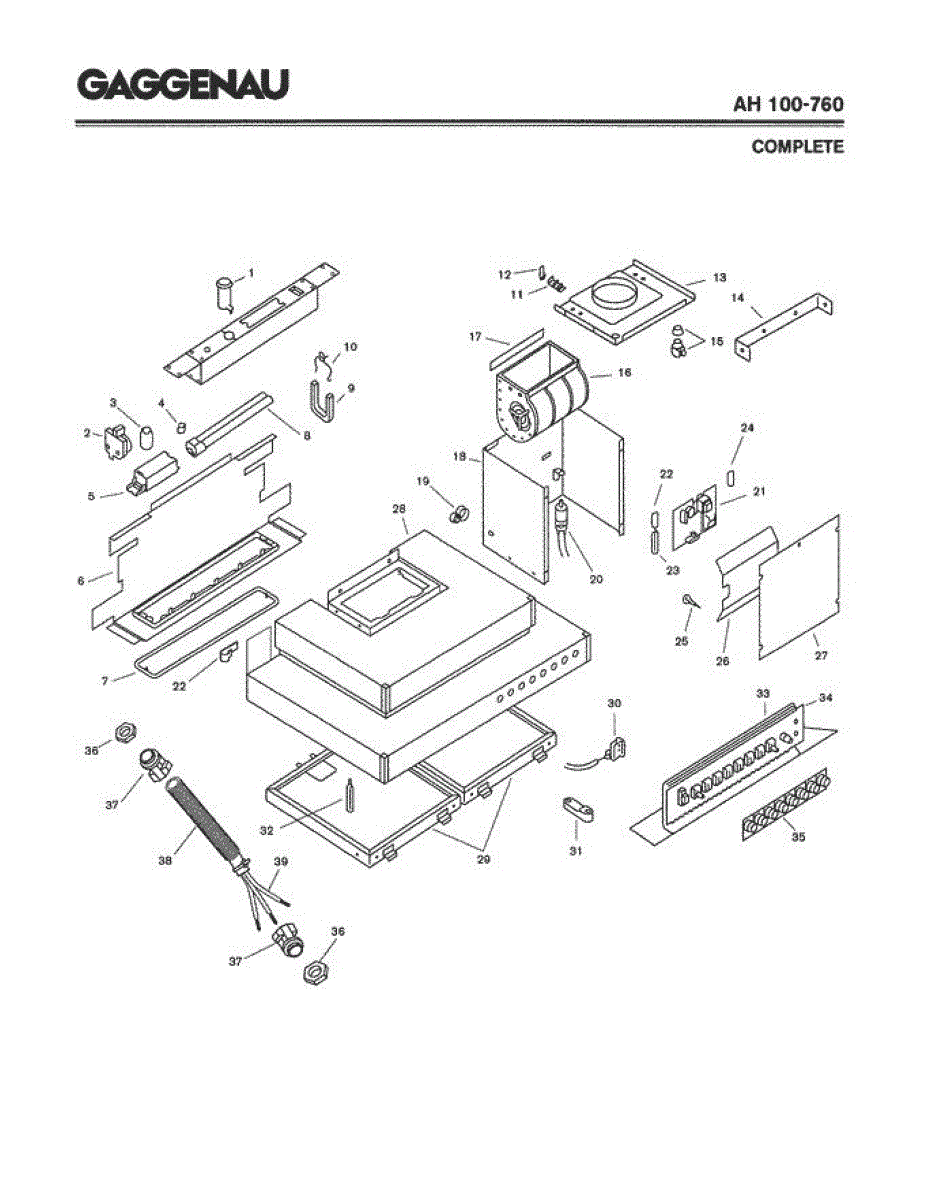

Parts for Gaggenau AH100-760: 01 - Complete Parts

Fluorescent light socket that connects bulb to fixture wiring. Replace if cracked, melted, or unable to hold bulb securely. Direct fit component.

This is a replacement fluorescent lamp starter designed for use with 80W, 240V fixtures. It helps the lamp reach full brightness reliably so lighting cycles start and run normally. What it does:

• Provides the initial pulse to ignite fluorescent tubes in compatible fixtures
• Commonly restores lamps that fail to start or take multiple strikes to light
• Can stop or reduce continuous flickering or rapid flashing at startup
• Works with starter-type ballasts specified for 80W / 240V operation

• Disconnect power to the fixture before servicing to avoid shock
• Typically replaces a plug-in starter in the fixture's starter holder—pull old starter straight out and push the new starter into place
• Confirm fixture voltage and lamp wattage match the starter specifications before installing

This is a cylindrical sleeve used in a range vent hood assembly. It serves as a pass-through or mounting insert that helps secure components or route ducting within the hood structure. Replace this sleeve if it is cracked, deformed, or missing, which can cause loose fittings or rattling noises during hood operation.

This replacement light socket secures the appliance lamp and provides the electrical connection the bulb needs to illuminate the interior. It restores a loose, damaged, or non-contact lamp mount so the light works reliably. What it does:

• Holds the light bulb in place and provides the electrical contact for the lamp
• Restores a lamp that sits loosely, fails to make contact, or flickers
• Helps re-establish interior illumination when the socket is cracked, burnt, or broken
• Works with the appropriate OEM bulb and wiring to ensure correct operation

• One light socket / lamp holder (single)

• Disconnect power to the appliance before servicing to avoid shock
• Handle the bulb and socket carefully; wear gloves and eye protection as needed
• Verify correct bulb type/wattage and proper wiring connections per the appliance manual

This strain relief secures the appliance power cord where it enters the cabinet, helping prevent cord pull, chafing, and accidental disconnection. It restores proper cord routing and reduces stress on internal wiring. What it does:

• Holds the power cord firmly at the entry point to stop pulling or tugging on internal connections
• Protects the cord from abrasion where it passes through the cabinet or panel
• Helps prevent intermittent power loss caused by a loose or damaged cord connection
• Fits the original cord routing to maintain safe, reliable wiring

• One strain relief clamp

• Disconnect power to the appliance before beginning any repair
• Access may require removing a rear or lower service panel; keep fasteners organized
• Replace the old clamp with the new unit, route the cord, then secure the clamp per original orientation
• Inspect the cord for damage; if the cord insulation or conductors are compromised, replace the cord

This blower control module operates the blower assembly to manage air flow and fan functions in compatible Bosch appliances, restoring proper blower response and system cycling. It's a direct-fit replacement when the blower fails to run or responds intermittently. What it does

• Supplies control signals to the blower/fan motor so the appliance can circulate air as designed
• Helps resolve symptoms such as no blower operation, intermittent blower activity, or blower not responding to controls
• Restores correct timing and sequencing of blower-related cycles when the original control board is faulty
• Works with the appliance's user controls and sensors to regulate blower behavior safely

• One blower control module (single control board)

• Disconnect power before accessing internal components to avoid shock or injury
• Replace only with the exact part number; verify orientation and connector seating during install
• Route and secure wiring harnesses to prevent pinching; avoid force when seating connectors

This PC board mount is a dedicated mounting bracket that secures the appliance control board in place, helping keep electrical connections stable and preventing damage from vibration or shifting during use. What it does:

• Secures the control (PC) board to the appliance chassis for reliable positioning
• Helps reduce board movement and vibration that can cause loose connections
• Minimizes risk of shorting from board contact with metal panels
• Needed when the board is loose, rattling, or shows visible mounting damage

• Disconnect power before starting any repair to avoid shock or damage
• Handle the control board carefully and use ESD precautions where possible
• Basic tools (screwdriver) typically required; follow OEM diagram for correct placement

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.
