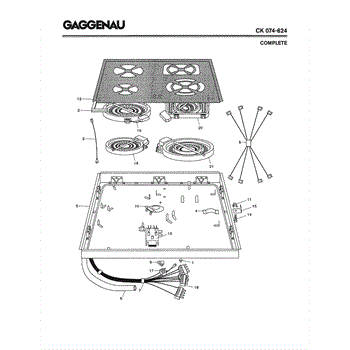

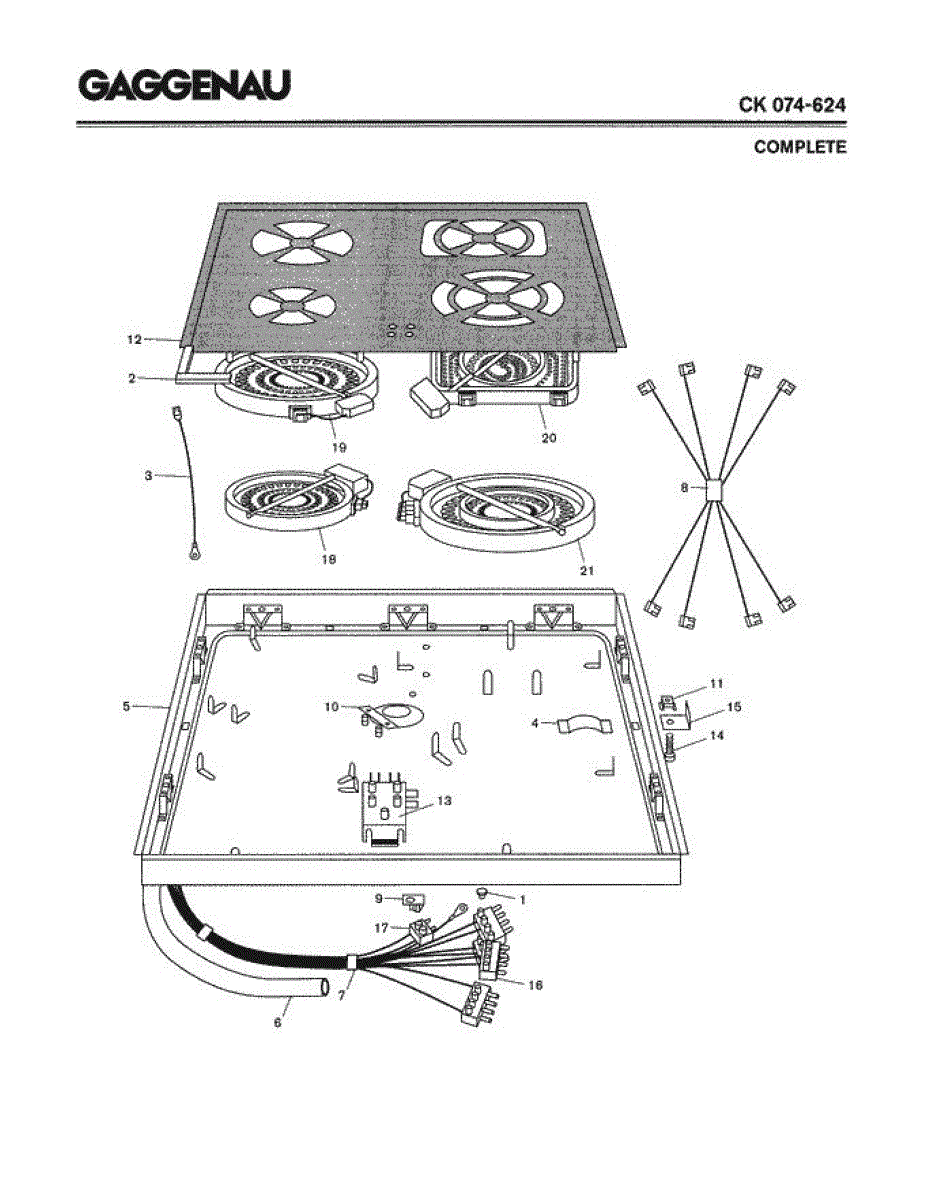

Parts for Gaggenau CK074-624: 01 - Complete Parts

This is a replacement M5 x 20 gasket designed to restore a secure seal where the original small rubber gasket has failed. It prevents leaks and maintains proper pressure or fluid routing in the assembly. What it does:

• Provides a tight seal at the specified M5 x 20 connection to stop drips and seepage
• Restores proper seating for valves, fittings, or small housings that use this gasket
• Helps prevent airflow or fluid loss that can cause poor appliance performance
• Addresses common symptoms such as minor leaks, moisture buildup, or loose-fitting parts

• Replace with the appliance powered off and water/gas disconnected where applicable
• Inspect mating surfaces for damage or debris and clean before installing the new gasket
• Lubricate lightly with approved lubricant only if specified by the manufacturer

This ground wire provides a dedicated chassis ground for the appliance, restoring a safe electrical path and helping prevent shock or electrical faults. Use this exact replacement when the original grounding conductor is damaged or missing. What it does:

• Connects appliance metal chassis to earth ground to reduce risk of electrical shock
• Restores proper grounding to stop intermittent power faults or arcing at chassis-mounted components
• Helps prevent nuisance breaker trips and electrical noise that can cause control or sensor errors
• Matches OEM routing and terminal ends to fit the factory grounding point

• Disconnect power and unplug the appliance before beginning any work.
• Verify the correct grounding point and secure terminals tightly to clean metal surfaces.
• Use appropriate tools and do not alter wire ends or insulation; replace if terminals or wire are corroded.

This spring clamp is a small metal retainer clip used to secure components in place on compatible Bosch appliances, helping maintain proper alignment and stable operation. It's a direct-fit replacement when the original clip is bent or missing. What it does:

• Holds trim, panels, or small assemblies in position to prevent rattling or movement
• Restores proper fit where a damaged or lost clip causes loose parts
• Helps eliminate noise from vibrating components by maintaining secure connections
• Common symptom: loose panel edges, trim pieces, or intermittent contact from shifted parts

• Basic hand tools may be required; inspect surrounding parts for damage before installing
• Disconnect power to the appliance before working near electrical components
• Install by aligning clip over mating surfaces and compressing until it snaps into place

This strain relief secures the cooktop power cord where it enters the appliance, protecting wiring from pull damage and reducing stress on the terminal connection for safer, more reliable operation. Ideal when the cord area shows wear or looseness. What it does:

• Holds the power cord firmly at the cooktop entry to prevent tugging on internal wiring
• Reduces risk of frayed wires, loose terminals, and intermittent power caused by cord movement
• Helps maintain a stable electrical connection at the terminal block
• Commonly replaced when the cord jacket is damaged or the cord pulls freely at the entry point

• One strain relief as shown

• Disconnect electrical power at the breaker before any service; confirm power is off with a multimeter
• Access typically requires removing the cooktop/back panel to reach the terminal area
• Secure the cord under the strain relief and tighten fasteners per OEM orientation; avoid overtightening

This HiLight hotplate is a single radiant cooktop element that restores heating on compatible glass-top ranges. It replaces a failed or damaged hotplate so cookware can heat evenly and burners function reliably again. What it does:

• Replaces a cracked, non-heating, or intermittently heating HiLight hotplate
• Provides the radiant heating surface under glass-ceramic cooktops
• Fixes symptoms such as a burner that won't glow, uneven heating, or no heat from one cooking zone
• Works with the existing element connections and retaining hardware on compatible cooktops

• Disconnect power to the cooktop at the breaker before servicing
• Handle glass-ceramic tops carefully to avoid chipping or cracking when removing/installing the element
• Verify the part number on the old element before installation

This HiLight hotplate is the glass-ceramic surface heating element that replaces a damaged or non-heating cooktop zone. It restores even, safe heat transfer for standard electric smooth-top ranges. What it does:

• Heats the cooktop zone to allow normal cooking operations.
• Replaces cracked, broken, or non-responsive surface elements.
• Helps stop uneven or intermittent heating on the affected cooking area.
• Works with range controls and wiring to deliver power to the cooktop zone.

• Disconnect power at the breaker before servicing the cooktop to avoid shock.
• Handle the glass-ceramic carefully; replace if cracked or chipped to prevent injury.
• Verify fit and alignment with the cooktop opening and electrical connector type before final installation.

This replacement hotplate is the cooktop surface element that provides direct heat for pots and pans on electric ranges. It restores a damaged, cracked, or non-heating burner so you can cook safely and consistently. What it does

• Heats cookware directly as the primary cooking surface on electric ranges
• Replaces a cracked, visibly damaged, or non-functioning surface element
• Restores consistent heat delivery when the original burner fails to warm
• Works with the range's existing control and wiring when installed correctly

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or access panel per your model's service instructions to access the element
• Handle the element carefully to avoid bending terminals or damaging the mounting surfaces

This glass scraper is a handheld tool designed to remove stubborn, baked-on residue from smooth cooktop glass and ceramic surfaces, helping restore a clean cooking surface without harsh scouring. What it does:

• Scrapes away burnt-on food, dried spills and adhesive residue that regular cleaning can't remove
• Helps maintain an even, smooth glass-ceramic cooktop surface for better cleaning and appearance
• Useful for spot-cleaning without abrasive pads that can scratch finishes
• Works as a prep tool before routine cleaning to speed up maintenance

• Use only on cool, unheated cooktop surfaces to avoid damage and injury
• Hold the scraper at a low angle and use light, controlled strokes; avoid excessive force
• Replace blades or blade inserts as needed — handle blades carefully and dispose of used blades safely
• Keep out of reach of children and store with blade covered or retracted when not in use
