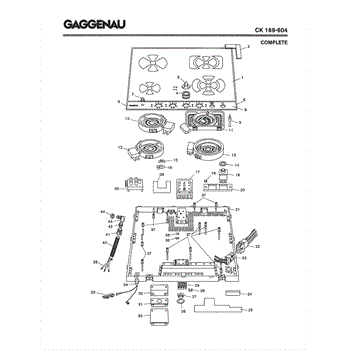

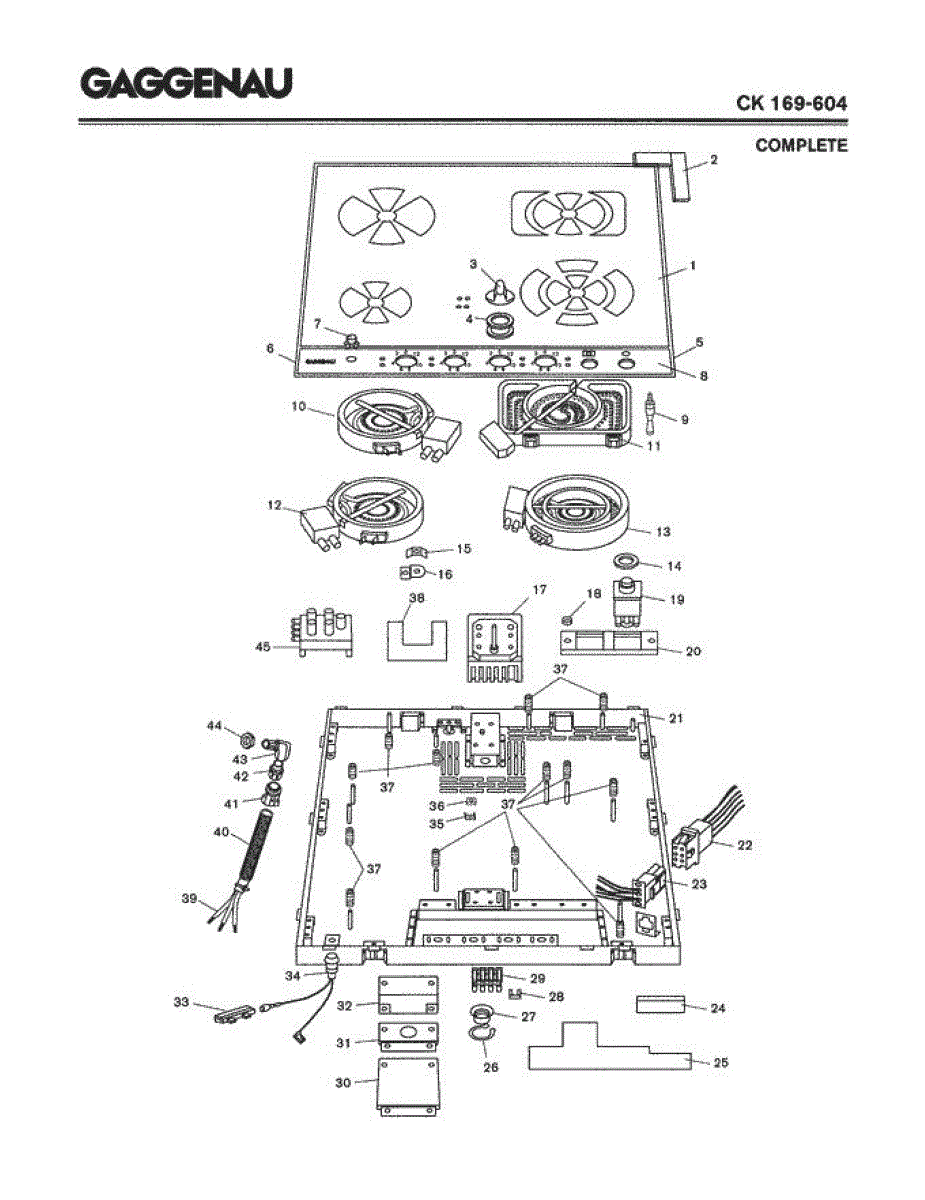

Parts for Gaggenau CK169-604: 01 - Complete Parts

This small rubber gasket seals and cushions an M4 fastener to help prevent leaks and reduce vibration at attachment points. It's a compact replacement part used where a watertight or vibration-damping seal is needed. What it does:

• Creates a seal around an M4 screw or bolt to help prevent water intrusion
• Cushions fasteners to reduce vibration, noise, and metal-on-metal wear
• Restores a tightened fastener's proper sealing surface when the original gasket is worn
• Helps maintain appliance integrity around panels, brackets, or connections

• Power off and unplug the appliance before starting any repair.
• Confirm the gasket's size matches the fastener and seating area before installation.
• Install flat against the mating surface; tighten fastener snugly but avoid over-torquing which can deform the gasket.
• Handle small parts carefully and retain any removed hardware for reassembly.

A replacement control knob that restores user control for range/oven cooktops. Fits the listed Bosch control shafts to provide a solid grip and clear position feedback when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can safely set heat levels and oven functions.
• Provides a secure fit on the control shaft for reliable on/off and temperature selection.
• Restores clear tactile and visual detents for accurate setting changes.
• Helps stop slipping or spinning knobs that prevent proper control.

• Disconnect power (or turn off gas supply for gas ranges) before replacing knobs.
• Most knobs pull straight off the shaft; gently pull while wiggling if needed. Do not force.
• If a retaining screw is present, loosen it first; keep hardware for reassembly.
• If the new knob does not fit, stop and verify shaft style and part number before forcing.

This right-side endcap replaces a worn or damaged housing cap on compatible Bosch vacuum/cleaner models, restoring a secure fit and finished appearance. Designed to match OEM fit and function for straightforward replacement. What it does:

• Replaces the right endcap to restore proper housing coverage and alignment
• Helps secure adjacent panels and internal components from shifting
• Eliminates gaps that can cause rattling or allow debris entry
• Matches original fit to keep the appliance looking and operating as intended

• Disconnect and unplug the appliance before attempting any repair
• Remove only the specified housing fasteners to access the endcap; avoid forcing parts
• Keep track of clips and screws for reassembly; replace any broken fasteners

This replacement hotplate is the cooktop surface element that provides direct heat for pots and pans on electric ranges. It restores a damaged, cracked, or non-heating burner so you can cook safely and consistently. What it does

• Heats cookware directly as the primary cooking surface on electric ranges
• Replaces a cracked, visibly damaged, or non-functioning surface element
• Restores consistent heat delivery when the original burner fails to warm
• Works with the range's existing control and wiring when installed correctly

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or access panel per your model's service instructions to access the element
• Handle the element carefully to avoid bending terminals or damaging the mounting surfaces

This HiLight hotplate is a single radiant cooktop element that restores heating on compatible glass-top ranges. It replaces a failed or damaged hotplate so cookware can heat evenly and burners function reliably again. What it does:

• Replaces a cracked, non-heating, or intermittently heating HiLight hotplate
• Provides the radiant heating surface under glass-ceramic cooktops
• Fixes symptoms such as a burner that won't glow, uneven heating, or no heat from one cooking zone
• Works with the existing element connections and retaining hardware on compatible cooktops

• Disconnect power to the cooktop at the breaker before servicing
• Handle glass-ceramic tops carefully to avoid chipping or cracking when removing/installing the element
• Verify the part number on the old element before installation

This supporting sheet is a stamped metal support panel that reinforces and stabilizes the appliance chassis where installed, helping keep internal components aligned for reliable operation. What it does

• Provides structural support to the appliance cabinet or internal assembly
• Helps stabilize mounted components and prevents movement or sagging
• Reduces vibration and rattling caused by loose or damaged support areas
• Can prevent misalignment that affect door seals or adjacent parts

• One supporting sheet

• Designed to mount using existing factory fasteners; inspect screws and clips and replace if damaged
• Turn off power to the appliance and disconnect power before beginning any repairs
• Handle edges carefully; metal panels may have sharp edges — wear gloves and eye protection

Replacement energy regulator that helps control power delivery to the appliance's heating and control circuits, restoring stable performance and addressing power-related faults. Installs in-line with the factory wiring to replace a failed regulator. What it does:

• Regulates power to heating and control components to maintain expected operation.
• Can resolve symptoms such as inconsistent heating, intermittent operation, or unexpected shutdowns.
• Prevents erratic behavior caused by a failing power-control component.
• Works as a direct replacement for the factory energy regulator to restore proper function.

• Disconnect all power before beginning service to avoid shock or injury.
• Use basic hand tools; inspect wiring and connectors for damage and replace any compromised parts.
• Refer to the appliance service manual or OEM instructions for specific removal and installation steps.

This rubber grommet cushions and secures a shaft or panel opening to reduce vibration and prevent metal-on-metal wear. It replaces a worn or missing grommet so components fit snugly and move quietly. What it does:

• Cushions and isolates vibration between parts to reduce noise and wear
• Protects wiring or shafts passing through openings from abrasion
• Helps maintain proper alignment of panels or small components
• Commonly replaced when grommets are cracked, flattened, or missing causing rattling or loose parts

• One replacement grommet

• Basic hand tools may be needed to access the mounting area; refer to your model's service instructions
• Inspect surrounding components for wear and replace any damaged clips or fasteners
• Ensure the grommet seats fully in the opening to provide proper cushion and protection
• Disconnect power before servicing electrical components to avoid shock

This terminal cover protects the appliance's electrical terminal block, shielding wiring and connectors from dust and accidental contact. It helps maintain a safer electrical connection and keeps the terminal area tidy. What it does:

• Covers and protects the terminal block and wire connections from debris and accidental contact
• Helps prevent shorting or loose-wire exposure that can cause intermittent operation or sparks
• Keeps wiring routed and secured at the appliance connection point for reliable performance
• Fits CK 069/169 style terminal blocks

• 1 terminal cover

• Disconnect power at the breaker before accessing the terminal block to avoid shock hazard
• Mounted with existing screws or clips; reuse original hardware unless damaged
• Verify correct orientation and that wires remain fully seated under terminals before replacing cover
• If wiring or terminals are corroded or damaged, replace those components before reinstalling the cover

This terminal mounting plate secures the appliance's electrical terminal block, keeping wiring connections stable and aligned for reliable power transfer. Useful when the original plate is broken, bent, or no longer holding terminals securely. What it does:

• Provides a stable mounting surface for the terminal block and wire terminals
• Maintains correct alignment and spacing of electrical connections
• Helps prevent loose or strained wiring that can cause intermittent power or connection issues
• Replaces damaged or corroded mounting hardware that may affect electrical contact

• One terminal mounting plate

• Disconnect power to the appliance before attempting any repair
• Inspect surrounding wiring and terminal screws; replace any damaged components
• Use appropriate tools and tighten fasteners to manufacturer's torque recommendations

A small metal mounting bracket that secures internal components and panels on compatible Bosch appliances. Replaces a damaged or missing bracket to restore proper fit and reduce movement. What it does:

• Provides a secure mounting point for control modules and console panels
• Prevents panel or component movement that can cause rattling or poor alignment
• Restores proper fit when a bracket is bent, broken, or missing
• Helps maintain electrical connections by keeping parts properly positioned

• Disconnect power to the appliance before starting any repair.
• Basic hand tools (screwdriver, pliers) typically required; retain all fasteners for reassembly.
• Handle edges carefully—metal brackets may be sharp.

A small replacement square nut used to fasten the ground clamp assembly and secure the appliance grounding connection. Restores a reliable clamp attachment so the ground conductor stays firmly in place. What it does:

• Secures the ground clamp to the appliance grounding stud or bracket
• Keeps the grounding conductor tight to prevent loose or intermittent ground contact
• Helps stop visible movement or rattling at the ground connection
• Useful when the original nut is stripped, corroded, or missing

• Disconnect power and unplug the appliance before servicing to avoid electrical shock
• Use the correct wrench or socket size to avoid rounding the nut
• Tighten until snug; avoid over-torquing to prevent stud or clamp damage
• If corrosion is present, clean the mating surfaces before installing the new nut

This replacement tension spring restores proper movement and tension for the related mechanism in compatible Bosch appliances, helping components open, close, or return smoothly and reliably. What it does

• Provides restoring force for a moving component, helping ensure controlled motion and positioning
• Can correct symptoms like loose or uneven movement, sagging panels, or components that don't return to position
• Works as the original-style spring used by the manufacturer for the specified mechanism
• Intended as a direct replacement for the worn or broken spring

• One replacement tension spring

• Inspect the mating parts and attachment points before installing; replace any damaged clips or anchors
• Use appropriate hand tools and keep hands/eyes protected — springs can release stored energy
• Follow the appliance's service manual instructions for safe removal and installation; disconnect power where applicable

This insulating strip cushions and insulates appliance panels to reduce heat transfer, dampen vibration and help prevent rattling or contact between metal parts. It's a small but important part for quiet, stable operation. What it does:

• Provides thermal insulation between cabinet panels and internal components to help control heat transfer
• Cushions and spaces panels to reduce vibration and rattling noises
• Protects wiring and nearby parts from abrasion where panels meet
• Helps maintain proper panel alignment and spacing

• Disconnect power (and water if applicable) before servicing the appliance
• Remove outer panels as needed to access the old strip; keep fasteners organized
• Clean and dry mounting surfaces before installing to ensure good adhesion or fit
• Replace with an identical strip; do not compress or fold the part when installing

This part has been discontinued and is no longer available.

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This glass scraper is a handheld tool designed to remove stubborn, baked-on residue from smooth cooktop glass and ceramic surfaces, helping restore a clean cooking surface without harsh scouring. What it does:

• Scrapes away burnt-on food, dried spills and adhesive residue that regular cleaning can't remove
• Helps maintain an even, smooth glass-ceramic cooktop surface for better cleaning and appearance
• Useful for spot-cleaning without abrasive pads that can scratch finishes
• Works as a prep tool before routine cleaning to speed up maintenance

• Use only on cool, unheated cooktop surfaces to avoid damage and injury
• Hold the scraper at a low angle and use light, controlled strokes; avoid excessive force
• Replace blades or blade inserts as needed — handle blades carefully and dispose of used blades safely
• Keep out of reach of children and store with blade covered or retracted when not in use
