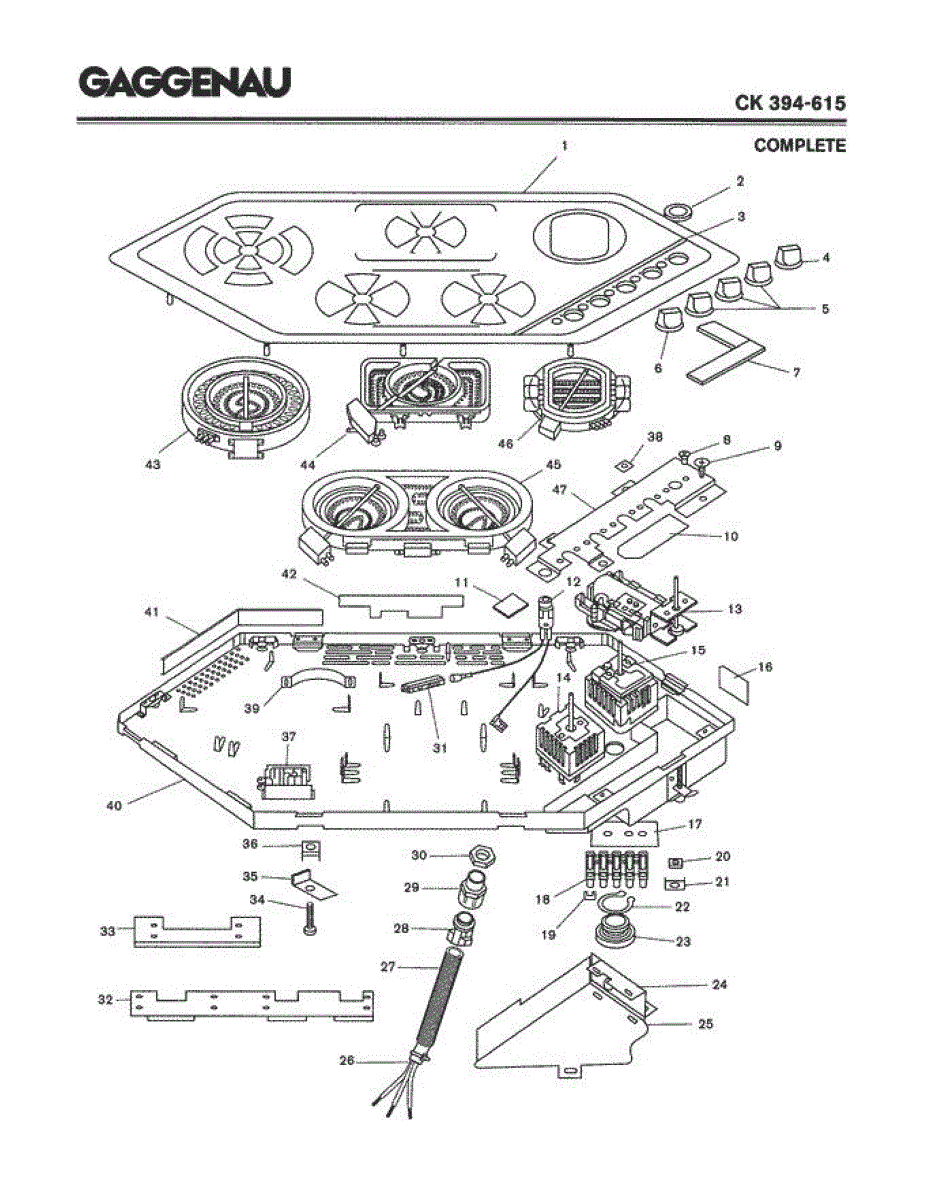

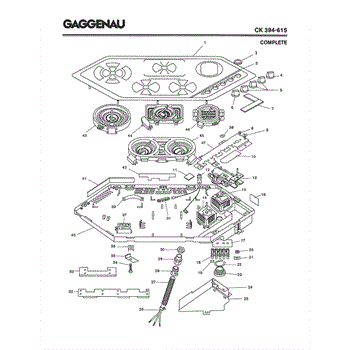

Parts for Gaggenau CK394-615: 01 - Complete Parts

Replace your damaged or cracked ceramic glass plate. This smooth cooking surface installs on top of your cooktop. Ideal when the original is chipped or broken.

This is a flexible sealing strip used in ranges and ovens to create a tight seal between panels or door components. It helps prevent heat from escaping and keeps moisture and debris out of internal areas. Replace this strip if you notice heat leaking from the oven cavity, uneven cooking temperatures, or visible wear and deterioration of the existing seal.

A small replacement square nut used to fasten the ground clamp assembly and secure the appliance grounding connection. Restores a reliable clamp attachment so the ground conductor stays firmly in place. What it does:

• Secures the ground clamp to the appliance grounding stud or bracket
• Keeps the grounding conductor tight to prevent loose or intermittent ground contact
• Helps stop visible movement or rattling at the ground connection
• Useful when the original nut is stripped, corroded, or missing

• Disconnect power and unplug the appliance before servicing to avoid electrical shock
• Use the correct wrench or socket size to avoid rounding the nut
• Tighten until snug; avoid over-torquing to prevent stud or clamp damage
• If corrosion is present, clean the mating surfaces before installing the new nut

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This frame support bracket secures and stabilizes the appliance cabinet/frame where panels and controls attach, helping maintain alignment and reduce vibration. Replaces a worn or damaged bracket for a stable enclosure. What it does

• Supports the appliance frame/cabinet and holds panels or trim in proper position.
• Restores correct panel alignment and helps prevent gaps or rubbing when the bracket is broken.
• Reduces vibration-related noise caused by loose or failed mounting points.
• Helps ensure controls and door/trim remain properly seated.

• One frame support bracket.

• Disconnect power and water before starting any repair.
• Access may require removing exterior panels, trim or the control console; keep fasteners organized.
• Use appropriate hand tools and avoid overtightening to prevent damage to the bracket or mounting holes.
• Follow OEM instructions and safety guidelines.

This spring clamp is a small metal retainer clip used to secure components in place on compatible Bosch appliances, helping maintain proper alignment and stable operation. It's a direct-fit replacement when the original clip is bent or missing. What it does:

• Holds trim, panels, or small assemblies in position to prevent rattling or movement
• Restores proper fit where a damaged or lost clip causes loose parts
• Helps eliminate noise from vibrating components by maintaining secure connections
• Common symptom: loose panel edges, trim pieces, or intermittent contact from shifted parts

• Basic hand tools may be required; inspect surrounding parts for damage before installing
• Disconnect power to the appliance before working near electrical components
• Install by aligning clip over mating surfaces and compressing until it snaps into place

This radiant surface heating element provides controlled heat for cooking on your electric stovetop. It features a smooth, flat surface that heats up when electricity flows through the internal coils. Replace this element if your cooktop won't heat up, heats unevenly, or shows visible cracks or damage.
