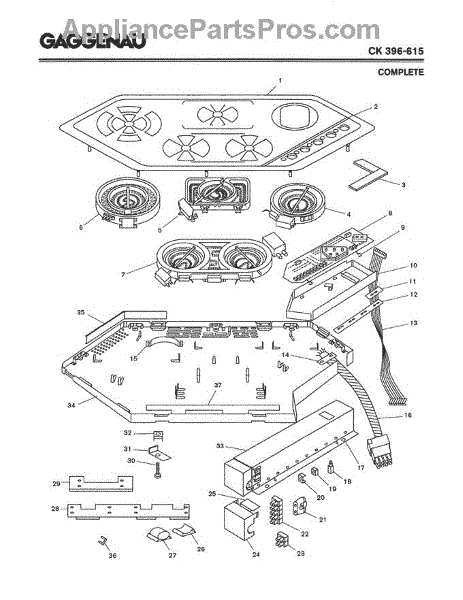

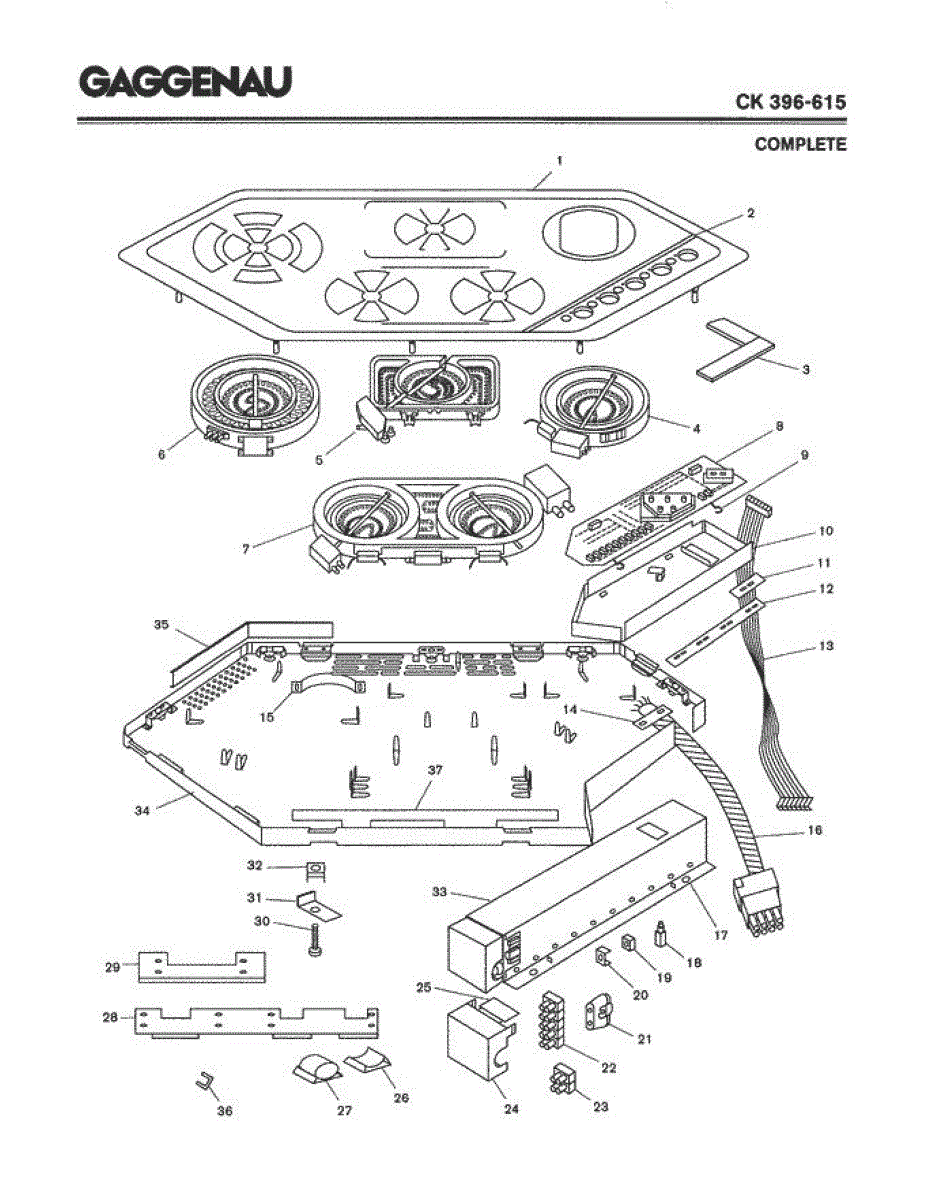

Parts for Gaggenau CK396-615: 01 - Complete Parts

This HiLight hotplate is the glass-ceramic surface heating element that replaces a damaged or non-heating cooktop zone. It restores even, safe heat transfer for standard electric smooth-top ranges. What it does:

• Heats the cooktop zone to allow normal cooking operations.
• Replaces cracked, broken, or non-responsive surface elements.
• Helps stop uneven or intermittent heating on the affected cooking area.
• Works with range controls and wiring to deliver power to the cooktop zone.

• Disconnect power at the breaker before servicing the cooktop to avoid shock.
• Handle the glass-ceramic carefully; replace if cracked or chipped to prevent injury.
• Verify fit and alignment with the cooktop opening and electrical connector type before final installation.

This replacement hotplate is the cooktop surface element that provides direct heat for pots and pans on electric ranges. It restores a damaged, cracked, or non-heating burner so you can cook safely and consistently. What it does

• Heats cookware directly as the primary cooking surface on electric ranges
• Replaces a cracked, visibly damaged, or non-functioning surface element
• Restores consistent heat delivery when the original burner fails to warm
• Works with the range's existing control and wiring when installed correctly

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or access panel per your model's service instructions to access the element
• Handle the element carefully to avoid bending terminals or damaging the mounting surfaces

This strain relief secures the cooktop power cord where it enters the appliance, protecting wiring from pull damage and reducing stress on the terminal connection for safer, more reliable operation. Ideal when the cord area shows wear or looseness. What it does:

• Holds the power cord firmly at the cooktop entry to prevent tugging on internal wiring
• Reduces risk of frayed wires, loose terminals, and intermittent power caused by cord movement
• Helps maintain a stable electrical connection at the terminal block
• Commonly replaced when the cord jacket is damaged or the cord pulls freely at the entry point

• One strain relief as shown

• Disconnect electrical power at the breaker before any service; confirm power is off with a multimeter
• Access typically requires removing the cooktop/back panel to reach the terminal area
• Secure the cord under the strain relief and tighten fasteners per OEM orientation; avoid overtightening

This spring clamp is a small metal retainer clip used to secure components in place on compatible Bosch appliances, helping maintain proper alignment and stable operation. It's a direct-fit replacement when the original clip is bent or missing. What it does:

• Holds trim, panels, or small assemblies in position to prevent rattling or movement
• Restores proper fit where a damaged or lost clip causes loose parts
• Helps eliminate noise from vibrating components by maintaining secure connections
• Common symptom: loose panel edges, trim pieces, or intermittent contact from shifted parts

• Basic hand tools may be required; inspect surrounding parts for damage before installing
• Disconnect power to the appliance before working near electrical components
• Install by aligning clip over mating surfaces and compressing until it snaps into place

This adhesive ground terminal label identifies the appliance's designated grounding connection, helping homeowners locate the correct terminal quickly for safe wiring and service. Durable, self-adhesive marking for internal appliance panels. What it does:

• Marks the chassis ground/earth connection so the grounding point is clearly visible
• Helps reduce wiring errors during service or installation
• Improves safety by making the ground terminal easy to find
• Intended for use on interior appliance sheet metal or electrical access panels

• Disconnect power before opening access panels or working near electrical components
• Clean and dry the mounting surface; peel adhesive backing and press firmly into place
• Position carefully before applying; adhesive is permanent and not intended for repeated repositioning
• Use only on appropriate interior panel surfaces away from high-heat components

A small replacement square nut used to fasten the ground clamp assembly and secure the appliance grounding connection. Restores a reliable clamp attachment so the ground conductor stays firmly in place. What it does:

• Secures the ground clamp to the appliance grounding stud or bracket
• Keeps the grounding conductor tight to prevent loose or intermittent ground contact
• Helps stop visible movement or rattling at the ground connection
• Useful when the original nut is stripped, corroded, or missing

• Disconnect power and unplug the appliance before servicing to avoid electrical shock
• Use the correct wrench or socket size to avoid rounding the nut
• Tighten until snug; avoid over-torquing to prevent stud or clamp damage
• If corrosion is present, clean the mating surfaces before installing the new nut

This strain relief secures the appliance power cord where it enters the cabinet, protecting wiring from pull, abrasion, and accidental disconnection. It restores a safe cord connection and helps prevent intermittent power or shorting. What it does:

• Secures the power cord at the cabinet entry to prevent the cord from being pulled out
• Reduces wear on wiring and insulation caused by movement or vibration
• Helps maintain reliable power connection to avoid intermittent operation or shutdowns
• Prevents chafing against sharp sheet metal that can cause shorts or exposed conductors

• Always disconnect power at the breaker or unplug the appliance before servicing
• Remove access panels as needed to reach the cord entry; note orientation for reassembly
• Seat the cord in the relief and tighten fastener(s) just until snug—do not overtighten
• Inspect cord and terminal wire ends for damage; replace cord or wiring if frayed or burned

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This small plastic cable clamp secures a wire harness or electrical cable to the appliance chassis, keeping wiring routed and protected to reduce wear and movement. It helps maintain reliable electrical connections and prevents chafing. What it does

• Holds and routes wiring to keep harnesses from shifting during operation
• Reduces cable abrasion and contact with sharp edges or hot surfaces
• Helps prevent intermittent electrical issues caused by loose or pinched wires
• Replaces broken, cracked, or missing retainers that no longer secure cables

• Disconnect power before accessing wiring or performing any repair
• Inspect surrounding wiring and insulation for damage; replace any frayed wires
• Snap the clamp into the chassis slot and seat the harness fully in the clamp
• Do not force cracked or deformed retainers; replace with a matching part

This frame support bracket secures and stabilizes the appliance cabinet/frame where panels and controls attach, helping maintain alignment and reduce vibration. Replaces a worn or damaged bracket for a stable enclosure. What it does

• Supports the appliance frame/cabinet and holds panels or trim in proper position.
• Restores correct panel alignment and helps prevent gaps or rubbing when the bracket is broken.
• Reduces vibration-related noise caused by loose or failed mounting points.
• Helps ensure controls and door/trim remain properly seated.

• One frame support bracket.

• Disconnect power and water before starting any repair.
• Access may require removing exterior panels, trim or the control console; keep fasteners organized.
• Use appropriate hand tools and avoid overtightening to prevent damage to the bracket or mounting holes.
• Follow OEM instructions and safety guidelines.
