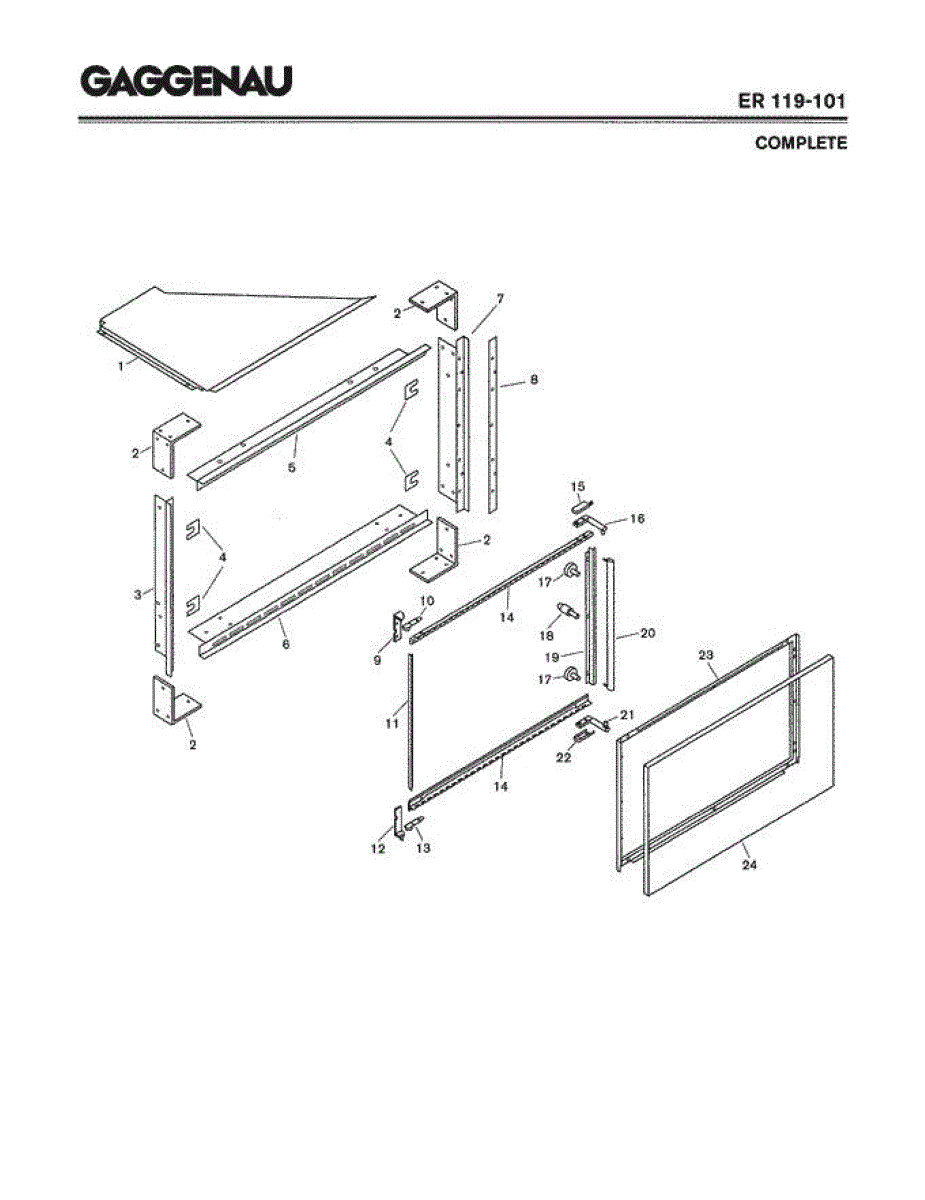

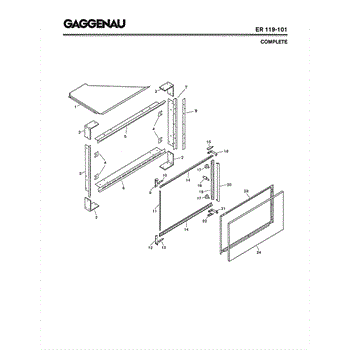

Parts for Gaggenau ER119-101: 01 - Complete Parts

This top panel replaces the upper exterior cover on the appliance, restoring a clean, finished appearance and protecting internal components from dust and debris. It's a direct-fit exterior panel used where the factory top is damaged or corroded. What it does:

• Covers and protects the appliance's upper housing and internal components
• Restores original appearance when the existing top is dented, rusted, or warped
• Helps maintain proper alignment and fit of control bezels and adjoining trim
• Prevents dust and debris from entering the cabinet area beneath the top

• Turn off and disconnect power to the appliance before beginning any work
• Remove surrounding trim or control bezel as needed to access mounting screws
• Handle panel edges carefully to avoid cuts or damage to finish
• Secure all fasteners

This spacer positions and secures oven components to maintain correct clearance and alignment for proper operation. It helps keep internal parts spaced to prevent rubbing, ensure seals seat correctly, and support stable mounting. What it does:

• Maintains correct gap and alignment between oven panels or components to prevent contact and wear
• Helps ensure oven door and internal panels seat and seal properly for consistent operation
• Reduces vibration or movement of mounted parts that can cause noise or misalignment
• Commonly replaced when the spacer is cracked, deformed, or missing and causing fit or alignment issues

• Disconnect power to the appliance before beginning any repair to avoid electrical shock
• Access may require removing the oven door or interior panels—follow your service manual for steps
• Replace only with the exact part to restore correct fit; inspect surrounding clips, fasteners, and seals

This bottom door frame rail secures the lower edge of the appliance door assembly and helps keep the door aligned for proper sealing and operation. It restores door fit and support when the original rail is damaged or bent. What it does:

• Provides structural support to the lower door edge so the door closes evenly and latches correctly
• Keeps the door liner aligned to reduce gaps that can cause leaking or poor sealing
• Prevents rattling or vibration from a loose or warped bottom door rail
• Restores proper door movement and helps maintain correct hinge alignment

• One bottom door frame rail

• Disconnect power (and water if working on a dishwasher) before beginning any repair
• Remove outer door panel or access panel per manufacturer instructions to reach the rail
• Handle door panels and any glass carefully to avoid damage or injury
• Reassemble and test door operation and seal after installation
