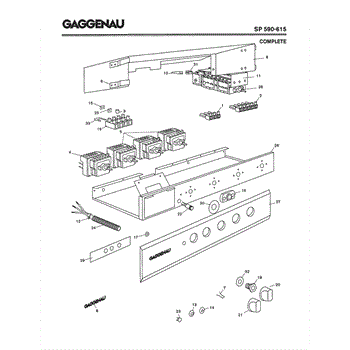

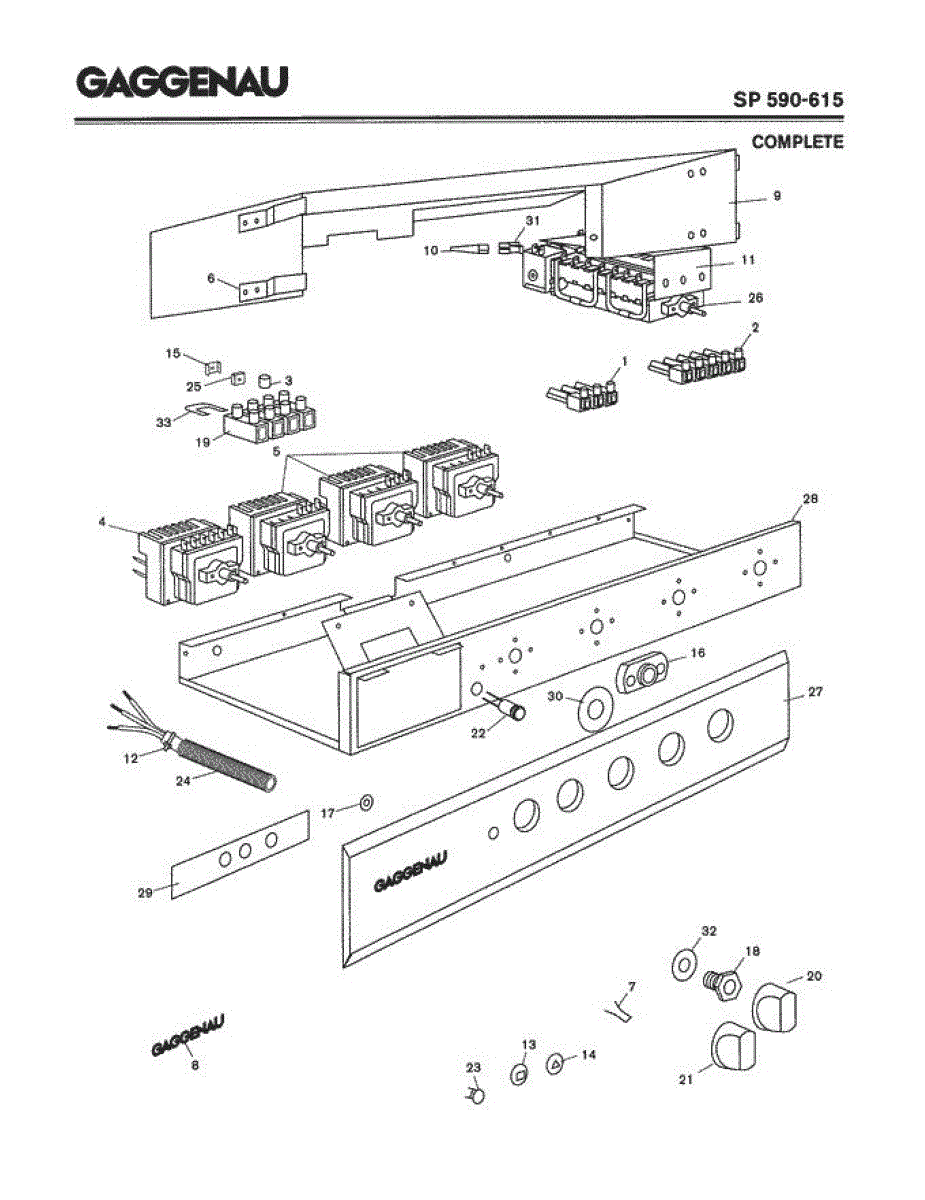

Parts for Gaggenau SP590-615: 01 - Complete Parts

This small metal spring retains a control knob on the shaft so the knob stays secure and provides proper detent action. It replaces a worn or missing knob spring to restore reliable knob feel and position. What it does

• Fits behind a control knob to hold it on the shaft and provide detent/return tension.
• Restores a loose, wobbly, or falling-off knob.
• Helps correct inconsistent knob positioning or skipped detents.
• Simple replacement that returns proper knob feel and control.

• Disconnect power to the appliance before servicing; for gas appliances also shut off the gas supply.
• Remove the knob and any escutcheon or retaining clip to access the spring; keep small parts away from children.
• Handle the spring carefully—small parts can fly when compressed; use long-nose pliers if needed.
• If knob or shaft is damaged, inspect those parts as well; this spring replaces only the retaining spring.

This insulator protects and isolates a wire terminal connection on the appliance, preventing shorts and stabilizing the terminal for reliable electrical contact. It's a direct-fit replacement used where the terminal mates to the wiring harness. What it does:

• Insulates and shields a wire terminal to prevent accidental shorts
• Helps stabilize and position the terminal for consistent electrical contact
• Used when a cracked, melted, or missing insulator causes loose or exposed connections
• Compatible with terminal blocks and connector housings where the OEM insulator is specified

• Disconnect power at the breaker or appliance plug before servicing electrical components.
• Replace only the failed insulator; inspect adjacent terminals and wiring for heat or damage.
• Push the insulator into place over the terminal until it seats firmly; ensure the wire is fully inserted and secured.
• If wiring, terminals, or connector housing show melting or corrosion, replace those parts as well.

This is a replacement screw for a control knob shaft that secures the knob to the appliance shaft so controls stay in place and operate correctly. Fits original-style knob shaft assemblies for compatible Bosch appliances. What it does:

• Secures the control knob to the shaft so the knob stays attached during use
• Keeps the knob aligned for accurate temperature or function selection
• Helps stop wobbling, slipping, or loss of knob engagement
• Commonly replaced when the knob feels loose, spins freely, or falls off

• Disconnect power to the appliance before starting any repair
• Handle small fasteners carefully and keep track of removed parts
• Use the proper screwdriver to avoid stripping the screw head

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.

This switch holder secures an appliance control switch in place to maintain reliable contact and stable operation. It replaces a worn or broken holder so the switch stays aligned and operates correctly. What it does:

• Provides a fixed mounting point for the control switch to prevent movement and intermittent contact
• Keeps the switch aligned with actuators, buttons or cams for consistent operation
• Helps stop symptoms like loose controls, intermittent power, or unresponsive buttons
• Works as the support piece when the existing holder is cracked, broken, or missing

• Disconnect power to the appliance before service to avoid electrical shock
• Access may require removing an access panel or control panel; keep fasteners organized
• Inspect the switch and wiring for damage while replacing the holder; replace damaged components as needed
• Test the control function after installation to confirm proper alignment and operation

This spade-style Y adapter terminal connector lets one male spade plug feed two female spade leads, restoring reliable electrical splits in appliance wiring. It's a simple replacement for damaged or corroded spade splitters. What it does:

• Splits a single male spade connection into two female spade outlets for parallel wiring
• Replaces cracked, bent or corroded spade adapters that cause intermittent power or connection loss
• Helps restore secure, low-resistance contact to prevent arcing and overheating risks
• Suitable for low-voltage appliance control and power connections where a spade split is required

• One spade Y adapter terminal connector

• Disconnect power to the appliance before accessing wiring or terminals
• Remove the access panel or control housing to reach the connector; avoid stressing nearby wires
• Slide wires fully into each spade and secure with appropriate crimps or tight push-fit; confirm a snug, non-wiggling connection
• Inspect surrounding insulation and replace any damaged wire or protective tubing as needed
