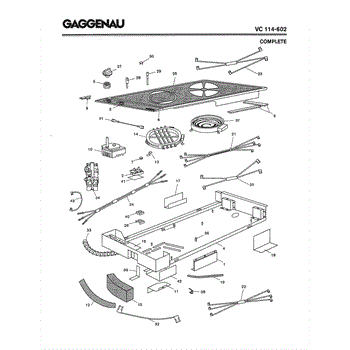

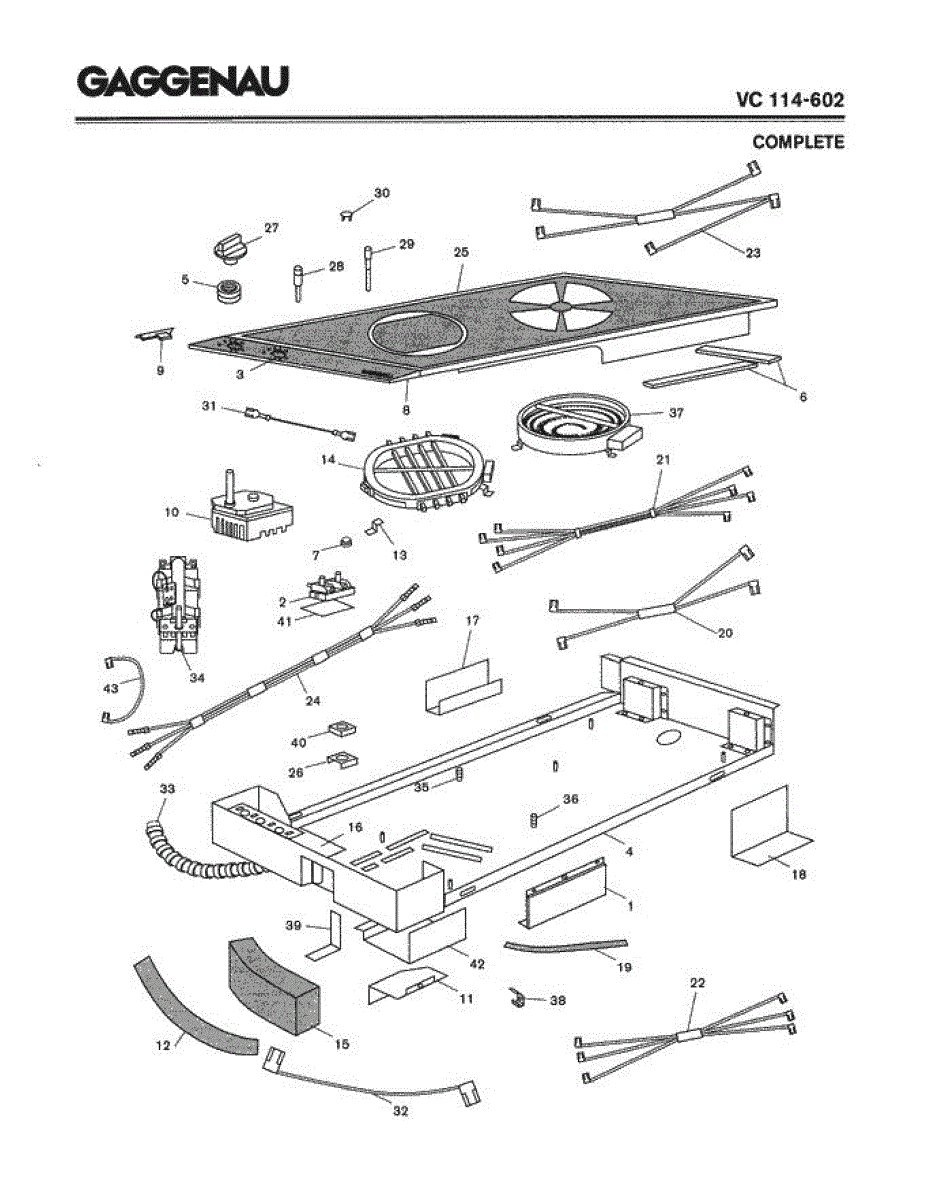

Parts for Gaggenau VC114-602: 01 - Complete Parts

This small rubber gasket seals and cushions an M4 fastener to help prevent leaks and reduce vibration at attachment points. It's a compact replacement part used where a watertight or vibration-damping seal is needed. What it does:

• Creates a seal around an M4 screw or bolt to help prevent water intrusion
• Cushions fasteners to reduce vibration, noise, and metal-on-metal wear
• Restores a tightened fastener's proper sealing surface when the original gasket is worn
• Helps maintain appliance integrity around panels, brackets, or connections

• Power off and unplug the appliance before starting any repair.
• Confirm the gasket's size matches the fastener and seating area before installation.
• Install flat against the mating surface; tighten fastener snugly but avoid over-torquing which can deform the gasket.
• Handle small parts carefully and retain any removed hardware for reassembly.

Replacement energy regulator that helps control power delivery to the appliance's heating and control circuits, restoring stable performance and addressing power-related faults. Installs in-line with the factory wiring to replace a failed regulator. What it does:

• Regulates power to heating and control components to maintain expected operation.
• Can resolve symptoms such as inconsistent heating, intermittent operation, or unexpected shutdowns.
• Prevents erratic behavior caused by a failing power-control component.
• Works as a direct replacement for the factory energy regulator to restore proper function.

• Disconnect all power before beginning service to avoid shock or injury.
• Use basic hand tools; inspect wiring and connectors for damage and replace any compromised parts.
• Refer to the appliance service manual or OEM instructions for specific removal and installation steps.

This supporting sheet is a stamped metal support panel that reinforces and stabilizes the appliance chassis where installed, helping keep internal components aligned for reliable operation. What it does

• Provides structural support to the appliance cabinet or internal assembly
• Helps stabilize mounted components and prevents movement or sagging
• Reduces vibration and rattling caused by loose or damaged support areas
• Can prevent misalignment that affect door seals or adjacent parts

• One supporting sheet

• Designed to mount using existing factory fasteners; inspect screws and clips and replace if damaged
• Turn off power to the appliance and disconnect power before beginning any repairs
• Handle edges carefully; metal panels may have sharp edges — wear gloves and eye protection

This replacement wire harness routes power and signal connections between internal components to restore reliable electrical operation. Use it when wiring is damaged, pinched, or shows burnt connectors to re-establish proper appliance function. What it does:

• Transfers electrical power and control signals between the appliance's modules and user interface
• Replaces damaged, frayed, or corroded wiring that can cause intermittent or no power
• Helps stop issues like sporadic operation, unresponsive controls, or components that fail to energize
• Maintains connector fit and routing to prevent chafing and short circuits

• Disconnect the appliance from power before servicing to avoid shock or damage
• Handle connectors gently and match keyed plugs to avoid bent pins
• Route and secure the harness per the appliance's wiring diagram to prevent rubbing or heat exposure

A replacement control knob that restores user control for range/oven cooktops. Fits the listed Bosch control shafts to provide a solid grip and clear position feedback when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can safely set heat levels and oven functions.
• Provides a secure fit on the control shaft for reliable on/off and temperature selection.
• Restores clear tactile and visual detents for accurate setting changes.
• Helps stop slipping or spinning knobs that prevent proper control.

• Disconnect power (or turn off gas supply for gas ranges) before replacing knobs.
• Most knobs pull straight off the shaft; gently pull while wiggling if needed. Do not force.
• If a retaining screw is present, loosen it first; keep hardware for reassembly.
• If the new knob does not fit, stop and verify shaft style and part number before forcing.

This replacement tension spring restores proper movement and tension for the related mechanism in compatible Bosch appliances, helping components open, close, or return smoothly and reliably. What it does

• Provides restoring force for a moving component, helping ensure controlled motion and positioning
• Can correct symptoms like loose or uneven movement, sagging panels, or components that don't return to position
• Works as the original-style spring used by the manufacturer for the specified mechanism
• Intended as a direct replacement for the worn or broken spring

• One replacement tension spring

• Inspect the mating parts and attachment points before installing; replace any damaged clips or anchors
• Use appropriate hand tools and keep hands/eyes protected — springs can release stored energy
• Follow the appliance's service manual instructions for safe removal and installation; disconnect power where applicable

A small replacement spring element that restores proper tension and movement to the associated appliance control or mechanism. Replaces a worn or broken spring to help eliminate loose or non-returning controls and restore normal operation. What it does

• Provides tension and return force for the linked control or mechanical element.
• Restores stable movement when the original spring is stretched, broken, or missing.
• Stops clicking, rattling, or intermittent engagement caused by a failed spring.
• Works as the direct-fit replacement for the factory spring element in the specified assembly.

• One (1) spring element as pictured and specified by the manufacturer.

• Disconnect power before starting any repair to avoid shock or injury.
• Small part — keep track of clips, retainers, and orientation during disassembly.
• May require partial disassembly of the control assembly or surrounding trim.

This HiLight hotplate is a single radiant cooktop element that restores heating on compatible glass-top ranges. It replaces a failed or damaged hotplate so cookware can heat evenly and burners function reliably again. What it does:

• Replaces a cracked, non-heating, or intermittently heating HiLight hotplate
• Provides the radiant heating surface under glass-ceramic cooktops
• Fixes symptoms such as a burner that won't glow, uneven heating, or no heat from one cooking zone
• Works with the existing element connections and retaining hardware on compatible cooktops

• Disconnect power to the cooktop at the breaker before servicing
• Handle glass-ceramic tops carefully to avoid chipping or cracking when removing/installing the element
• Verify the part number on the old element before installation

This spade-style Y adapter terminal connector lets one male spade plug feed two female spade leads, restoring reliable electrical splits in appliance wiring. It's a simple replacement for damaged or corroded spade splitters. What it does:

• Splits a single male spade connection into two female spade outlets for parallel wiring
• Replaces cracked, bent or corroded spade adapters that cause intermittent power or connection loss
• Helps restore secure, low-resistance contact to prevent arcing and overheating risks
• Suitable for low-voltage appliance control and power connections where a spade split is required

• One spade Y adapter terminal connector

• Disconnect power to the appliance before accessing wiring or terminals
• Remove the access panel or control housing to reach the connector; avoid stressing nearby wires
• Slide wires fully into each spade and secure with appropriate crimps or tight push-fit; confirm a snug, non-wiggling connection
• Inspect surrounding insulation and replace any damaged wire or protective tubing as needed

This glass scraper is a handheld tool designed to remove stubborn, baked-on residue from smooth cooktop glass and ceramic surfaces, helping restore a clean cooking surface without harsh scouring. What it does:

• Scrapes away burnt-on food, dried spills and adhesive residue that regular cleaning can't remove
• Helps maintain an even, smooth glass-ceramic cooktop surface for better cleaning and appearance
• Useful for spot-cleaning without abrasive pads that can scratch finishes
• Works as a prep tool before routine cleaning to speed up maintenance

• Use only on cool, unheated cooktop surfaces to avoid damage and injury
• Hold the scraper at a low angle and use light, controlled strokes; avoid excessive force
• Replace blades or blade inserts as needed — handle blades carefully and dispose of used blades safely
• Keep out of reach of children and store with blade covered or retracted when not in use
