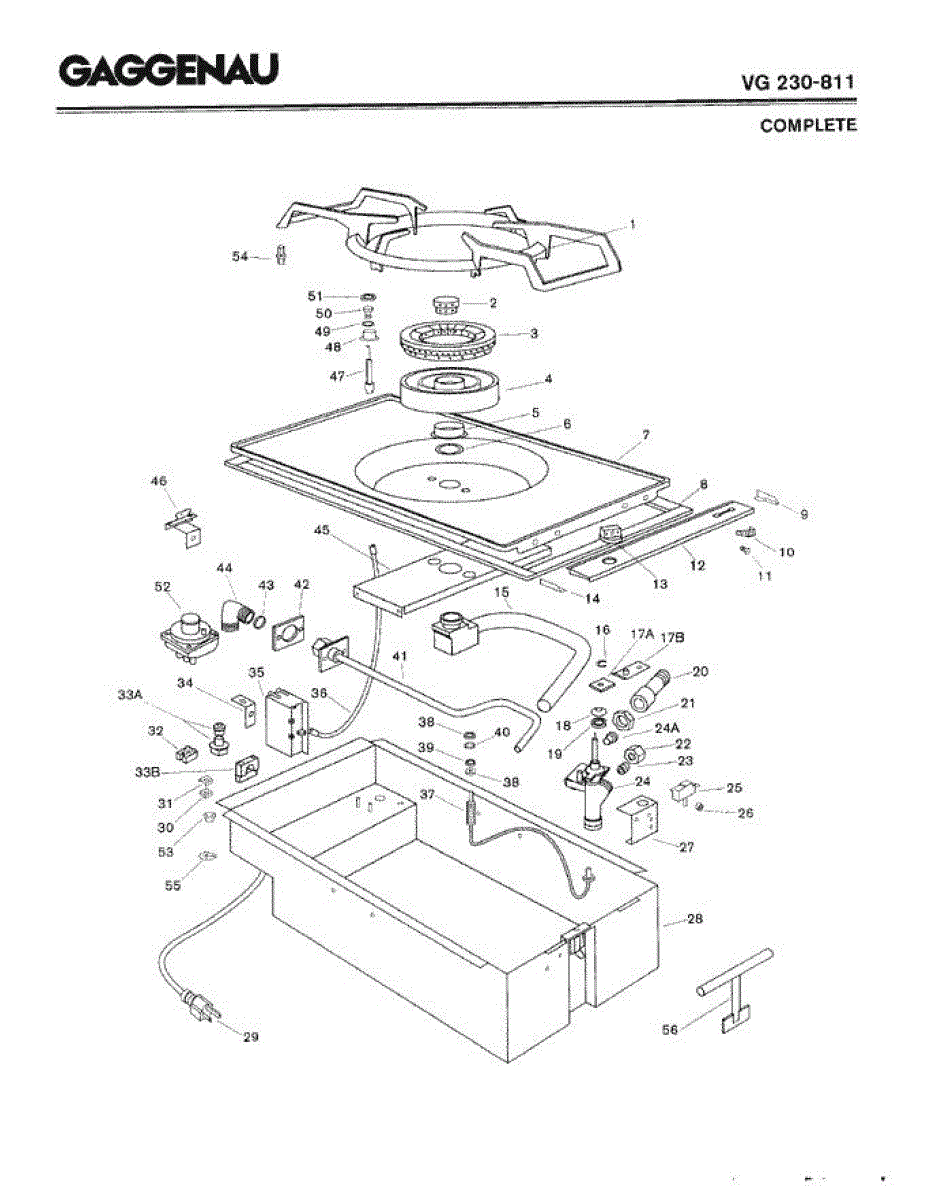

Parts for Gaggenau VG230-811: 01 - Complete Parts

This burner lid is the replacement top cover for a VG 230/330 gas burner assembly, restoring proper burner protection and heat distribution for reliable cooktop operation. Designed to fit the OEM burner geometry and surface finish. What it does:

• Covers and protects the burner cap and inner components from spills and debris.
• Helps channel flame and heat for more even cooking performance.
• Reduces the chance of food or liquids reaching ignition parts that can cause burner issues.
• Common symptom: cracked, warped, or missing lids that allow uneven flames or visible damage.

• Turn off gas and power to the appliance and allow all surfaces to cool completely before servicing.
• Remove burner grates and caps as needed; lift out the old lid and seat the new lid in the burner recess.
• Inspect surrounding components (cap, electrode/igniter) for damage while installing.

Replacement burner head for gas cooktops. Restores even flame distribution when original is corroded, damaged, or worn. Direct-fit part for VG models.

This is a replacement mounting nut for VG 230 assemblies. It provides a secure threaded connection to help keep the VG 230 component fastened and stable, restoring proper fit and reducing vibration-related looseness. What it does:

• Secures the VG 230 component to its mounting or mating hardware
• Maintains a tight threaded connection to prevent part movement or loosening
• Helps preserve alignment and stable operation of the connected assembly
• Can be used during routine repairs or when replacing stripped or damaged fasteners

• Disconnect power and any supply lines before starting repairs; follow appliance safety procedures
• Use the correct socket or wrench to avoid rounding the nut; hand-start the threads to prevent cross-threading
• Tighten to a snug fit—do not overtighten to avoid damaging mating threads or components
• If threads are damaged or corroded, replace mating hardware.

This is a foam sealing strip that creates an airtight seal between panels or the door area of the microwave. It helps prevent heat loss, air leaks, and moisture intrusion. Replace this strip if it appears compressed, crumbling, or if you notice gaps, rattling noises, or reduced heating efficiency.

This is a right-side holder or endcap bracket that secures an internal component in place within the microwave. It provides structural support and proper alignment for the part it holds. Replace this holder if it is cracked, broken, or missing, which can cause the supported component to shift or rattle during operation.

This is an M4 x 10 DIN 7500 screw used for securing appliance components where a precision machine screw is required. It provides a simple replacement for worn or missing screws to restore proper assembly fit. What it does:

• Fastens panels, brackets, or small components using an M4 thread and 10 mm length
• Replaces stripped, corroded, or lost screws to stop rattling or loose parts
• Matches DIN 7500 geometry for consistent seating and reliable clamping force
• Suitable for indoor appliance environments when the correct material/finish is specified

• One M4 x 10 DIN 7500 screw

• Use the correct M4 driver and avoid over-torquing to prevent thread damage
• Replace only with identical size/grade screws when fastening safety-related components
• If a screw was part of an assembly, retain any washers or clips originally used

Fix unresponsive controls or dead electrical functions on your lawn tractor with this switchboard panel. Moderate DIY repair requiring basic tools.

This is a control knob designed for use on a gas range cooktop or oven. It attaches to the control shaft and allows you to select burner or oven temperature settings. Replace this knob if it is cracked, broken, or if the printed markings have worn off, making it difficult to set the correct heat level.

This is a cutting disc used in range and oven assemblies. It serves as a component in the internal mechanism of the appliance. Replace this disc if it shows signs of wear, cracking, or damage that affects the operation of the associated assembly.

This is a thin cutting disc used in the assembly or servicing of range and oven components. It serves as a precision-cut part that fits within the appliance's mechanical structure. Replace this disc if it is worn, cracked, or damaged, which may affect proper fit or function of adjacent components.

This double ring (VG 230) is a small sealing ring used on select Bosch appliances to restore a secure seal and prevent leaks. It replaces worn or damaged rings to help maintain proper appliance function. What it does:

• Provides a sealed connection between mating parts to stop water or steam leakage
• Restores proper fit when an original ring has hardened, cracked, or deformed
• Helps prevent intermittent or continuous leaks that can cause poor performance or water damage
• Works where a dual-seal ring is required for pressure or liquid containment

• Disconnect power and water supply before servicing the appliance
• Verify correct orientation and seating of the ring; replace if it does not fit snugly
• Inspect mating surfaces for damage or residue and clean before installing the new ring
• Follow the appliance manufacturer's service instructions and safety guidelines

This gas control valve regulates the flow of natural gas or propane to your range's burners, allowing you to adjust flame size and heat output. It includes a precisely sized orifice that meters the correct amount of gas for safe operation. Replace this valve if a burner won't light, produces an uneven flame, or if you smell gas around the range.

This ignition switch bushing stabilizes the control shaft inside the appliance ignition assembly, helping maintain proper alignment and reduce wear for reliable spark control. Replaces worn or damaged bushings that allow excessive shaft play. What it does:

• Centers and supports the ignition switch/control shaft to keep electrical contacts aligned
• Helps prevent loose or wobbly switch operation that can cause intermittent ignition
• Reduces metal-on-metal wear inside the switch assembly
• Restores smoother knob/shaft movement when the original bushing is degraded

• Disconnect power and gas before beginning any service
• Requires partial disassembly of the control/manifold area to access the ignition switch; keep fasteners organized
• Inspect surrounding components and switch for wear; replace damaged parts as needed

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This spark ignition module generates the electrical spark needed to light gas burners on your range or cooktop. It sends timed electrical pulses to the spark electrodes when you turn on a burner. Replace this module when burners won't light, you hear clicking but no ignition occurs, or only some burners will light properly.

This thermocouple monitors the burner flame and works with the safety valve. It allows gas flow only while a flame is present and lets the valve close when no flame is detected, helping restore dependable burner operation.

• Senses burner flame heat and sends a small millivolt signal to the safety valve
• Works with the flame-failure safety system to maintain or cut gas flow based on flame presence
• Common symptoms can include: burner lights but goes out when the knob is released; needing to hold the knob down unusually long to keep the burner lit

• Disconnect power and shut off gas before servicing
• Allow the unit to cool; remove grates/caps to access the sensor tip and route the lead to the valve connection as originally installed
• Do not kink or sharply bend the lead; position the tip within the burner's flame envelope
• After reassembly, restore gas/power and test burner operation

This is a replacement nut for the VG 230 assembly, used to secure the associated hardware on compatible Bosch appliances. Installing the correct nut restores safe fastening and helps stop looseness, rattles, or misalignment. What it does:

• Secures the VG 230 component or bracket to its mounting point
• Keeps threaded connections tight under vibration and normal use
• Helps prevent intermittent contact, rattling, or movement of the assembly
• Restores proper mechanical alignment after a stripped or missing fastener

• Disconnect power and water (if applicable) before servicing the appliance.
• Use the correct size wrench or socket to avoid rounding the nut.
• Replace with the exact OEM part to maintain fit and function; do not overtighten.

Replacement gasket creates an airtight seal to prevent leaks. Replace if worn, cracked, or leaking. Verify compatibility with your model number.

This metal hinge connects the microwave door to the cabinet frame, allowing the door to open and close smoothly. It bears the weight of the door and ensures a proper seal when closed. Replace this hinge if the microwave door is sagging, not closing flush, or if the hinge is visibly bent or cracked.

This is a spark ignition head used in gas cooktops and ranges to ignite the burner. It generates a spark when the burner knob is turned, lighting the gas flow. Replace this part if the burner fails to ignite, clicks without producing a spark, or ignites inconsistently.

Replacement screw for securing components in your appliance. Needed when original screw is stripped, missing, or damaged during maintenance or repair work.

This is a cylindrical sleeve used in a range vent hood assembly. It serves as a pass-through or mounting insert that helps secure components or route ducting within the hood structure. Replace this sleeve if it is cracked, deformed, or missing, which can cause loose fittings or rattling noises during hood operation.

This is a small rivet used to secure components on a range or oven, such as brackets, panels, or other hardware. It provides a permanent fastening point to hold parts firmly in place. Replace this rivet if it is broken, missing, or corroded, which can cause loose or rattling components.

This adhesive ground terminal label identifies the appliance's designated grounding connection, helping homeowners locate the correct terminal quickly for safe wiring and service. Durable, self-adhesive marking for internal appliance panels. What it does:

• Marks the chassis ground/earth connection so the grounding point is clearly visible
• Helps reduce wiring errors during service or installation
• Improves safety by making the ground terminal easy to find
• Intended for use on interior appliance sheet metal or electrical access panels

• Disconnect power before opening access panels or working near electrical components
• Clean and dry the mounting surface; peel adhesive backing and press firmly into place
• Position carefully before applying; adhesive is permanent and not intended for repeated repositioning
• Use only on appropriate interior panel surfaces away from high-heat components
