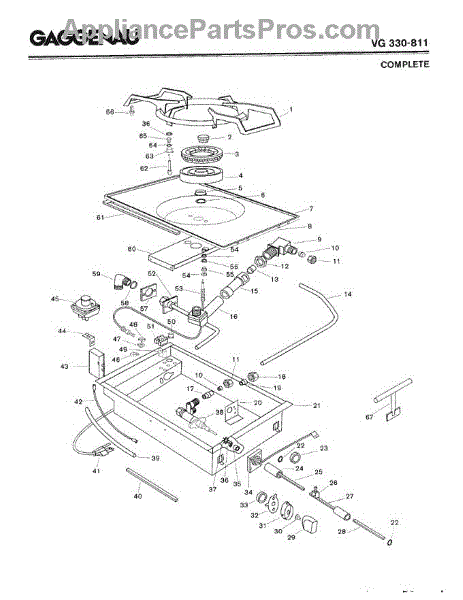

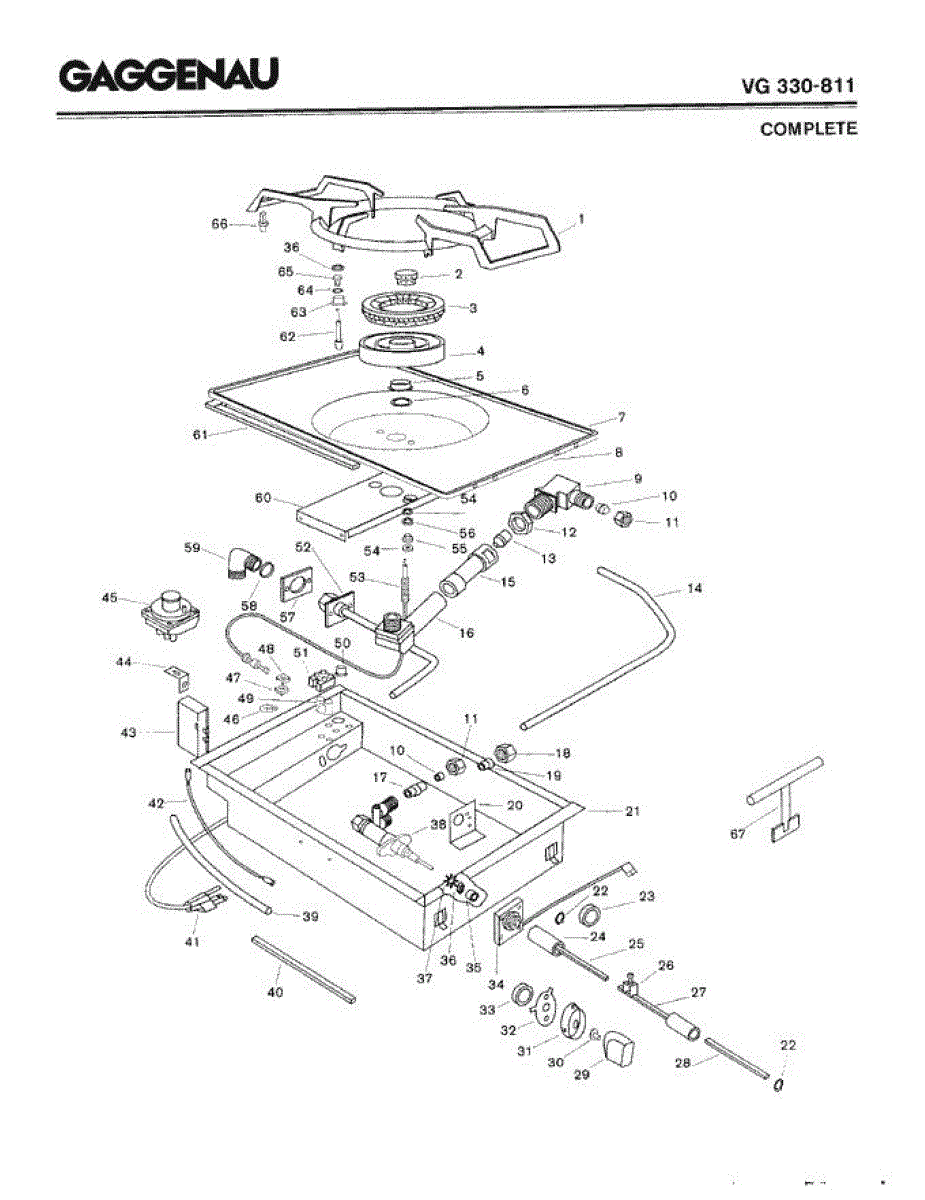

Parts for Gaggenau VG330-811: 01 - Complete Parts

This burner lid is the replacement top cover for a VG 230/330 gas burner assembly, restoring proper burner protection and heat distribution for reliable cooktop operation. Designed to fit the OEM burner geometry and surface finish. What it does:

• Covers and protects the burner cap and inner components from spills and debris.
• Helps channel flame and heat for more even cooking performance.
• Reduces the chance of food or liquids reaching ignition parts that can cause burner issues.
• Common symptom: cracked, warped, or missing lids that allow uneven flames or visible damage.

• Turn off gas and power to the appliance and allow all surfaces to cool completely before servicing.
• Remove burner grates and caps as needed; lift out the old lid and seat the new lid in the burner recess.
• Inspect surrounding components (cap, electrode/igniter) for damage while installing.

Replacement burner head for gas cooktops. Restores even flame distribution when original is corroded, damaged, or worn. Direct-fit part for VG models.

This is a replacement mounting nut for VG 230 assemblies. It provides a secure threaded connection to help keep the VG 230 component fastened and stable, restoring proper fit and reducing vibration-related looseness. What it does:

• Secures the VG 230 component to its mounting or mating hardware
• Maintains a tight threaded connection to prevent part movement or loosening
• Helps preserve alignment and stable operation of the connected assembly
• Can be used during routine repairs or when replacing stripped or damaged fasteners

• Disconnect power and any supply lines before starting repairs; follow appliance safety procedures
• Use the correct socket or wrench to avoid rounding the nut; hand-start the threads to prevent cross-threading
• Tighten to a snug fit—do not overtighten to avoid damaging mating threads or components
• If threads are damaged or corroded, replace mating hardware.

Stainless steel hob top tray for cooktops. Sits beneath burners to catch spills and protect internal components. Replace if cracked, warped, or rusted.

Replacement name plate for your appliance. Installs on the exterior to display model information. Needed when original plate is damaged, faded, or missing.

This M15 nut secures mating components on compatible Bosch assemblies, restoring fastener retention and helping prevent looseness or vibration. Use the correct nut size to keep moving parts aligned and operating safely. What it does:

• Fastens and secures M15-threaded shafts or studs in appliance assemblies
• Restores proper clamping force to prevent wobble or noise from loose parts
• Helps maintain alignment of motors, pulleys, or structural connections
• Simple replacement for a missing, stripped, or corroded nut

• Disconnect power and follow appliance manufacturer safety procedures before servicing
• Tighten to the manufacturer's recommended specification; avoid over-torquing
• Replace any damaged mating hardware (studs, washers) for a secure repair

This double ring (VG 230) is a small sealing ring used on select Bosch appliances to restore a secure seal and prevent leaks. It replaces worn or damaged rings to help maintain proper appliance function. What it does:

• Provides a sealed connection between mating parts to stop water or steam leakage
• Restores proper fit when an original ring has hardened, cracked, or deformed
• Helps prevent intermittent or continuous leaks that can cause poor performance or water damage
• Works where a dual-seal ring is required for pressure or liquid containment

• Disconnect power and water supply before servicing the appliance
• Verify correct orientation and seating of the ring; replace if it does not fit snugly
• Inspect mating surfaces for damage or residue and clean before installing the new ring
• Follow the appliance manufacturer's service instructions and safety guidelines

Snap ring secures and retains components in place on various appliances. Replace if ring is cracked, broken, or missing to restore proper assembly.

Replacement engine coupling for front-engine lawn tractors. Connects engine components for proper power transfer. Order new part if original is cracked or worn.

Spring for knob that restores proper tension and return action to a control knob, helping knobs operate smoothly and stay in position. Use this small replacement when a knob feels loose, won't center, or won't return. What it does:

• Provides tension and return action for a control knob so it centers and responds correctly.
• Replaces worn or broken knob springs that cause loose, wobbly, or non-returning knobs.
• Works as the mechanical spring behind the knob's rotation and detent action.
• Small, straightforward part used wherever a control knob needs restored tension.

• Disconnect power to the appliance (unplug or switch off circuit breaker) before servicing.
• Remove the knob and any bezels per the appliance's service instructions to access the spring.
• Handle small parts carefully; keep orientation noted for correct reassembly.

Secure loose components and prevent vibration issues with this toothed lockwasher. Quick 5-minute fix for rattling or shifting parts in appliances.

This gas control valve regulates the flow of natural gas or propane to your range's burners, allowing you to adjust flame size and heat output. It includes a precisely sized orifice that meters the correct amount of gas for safe operation. Replace this valve if a burner won't light, produces an uneven flame, or if you smell gas around the range.

This spark ignition module generates the electrical spark needed to light gas burners on your range or cooktop. It sends timed electrical pulses to the spark electrodes when you turn on a burner. Replace this module when burners won't light, you hear clicking but no ignition occurs, or only some burners will light properly.

This adhesive ground terminal label identifies the appliance's designated grounding connection, helping homeowners locate the correct terminal quickly for safe wiring and service. Durable, self-adhesive marking for internal appliance panels. What it does:

• Marks the chassis ground/earth connection so the grounding point is clearly visible
• Helps reduce wiring errors during service or installation
• Improves safety by making the ground terminal easy to find
• Intended for use on interior appliance sheet metal or electrical access panels

• Disconnect power before opening access panels or working near electrical components
• Clean and dry the mounting surface; peel adhesive backing and press firmly into place
• Position carefully before applying; adhesive is permanent and not intended for repeated repositioning
• Use only on appropriate interior panel surfaces away from high-heat components

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.

This oven grommet is a small rubber or plastic insulating component that cushions wires or protects openings. Replace when cracked, worn, or missing.

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This thermocouple monitors the burner flame and works with the safety valve. It allows gas flow only while a flame is present and lets the valve close when no flame is detected, helping restore dependable burner operation.

• Senses burner flame heat and sends a small millivolt signal to the safety valve
• Works with the flame-failure safety system to maintain or cut gas flow based on flame presence
• Common symptoms can include: burner lights but goes out when the knob is released; needing to hold the knob down unusually long to keep the burner lit

• Disconnect power and shut off gas before servicing
• Allow the unit to cool; remove grates/caps to access the sensor tip and route the lead to the valve connection as originally installed
• Do not kink or sharply bend the lead; position the tip within the burner's flame envelope
• After reassembly, restore gas/power and test burner operation

This is a replacement nut for the VG 230 assembly, used to secure the associated hardware on compatible Bosch appliances. Installing the correct nut restores safe fastening and helps stop looseness, rattles, or misalignment. What it does:

• Secures the VG 230 component or bracket to its mounting point
• Keeps threaded connections tight under vibration and normal use
• Helps prevent intermittent contact, rattling, or movement of the assembly
• Restores proper mechanical alignment after a stripped or missing fastener

• Disconnect power and water (if applicable) before servicing the appliance.
• Use the correct size wrench or socket to avoid rounding the nut.
• Replace with the exact OEM part to maintain fit and function; do not overtighten.

Replacement gasket creates an airtight seal to prevent leaks. Replace if worn, cracked, or leaking. Verify compatibility with your model number.

This is a replacement M5 x 20 gasket designed to restore a secure seal where the original small rubber gasket has failed. It prevents leaks and maintains proper pressure or fluid routing in the assembly. What it does:

• Provides a tight seal at the specified M5 x 20 connection to stop drips and seepage
• Restores proper seating for valves, fittings, or small housings that use this gasket
• Helps prevent airflow or fluid loss that can cause poor appliance performance
• Addresses common symptoms such as minor leaks, moisture buildup, or loose-fitting parts

• Replace with the appliance powered off and water/gas disconnected where applicable
• Inspect mating surfaces for damage or debris and clean before installing the new gasket
• Lubricate lightly with approved lubricant only if specified by the manufacturer

This VG 230 spark plug provides the spark electrode used by gas appliance ignitors to light burners and ovens. It restores reliable ignition and helps ensure safe burner startup when the electrode is worn or damaged. What it does

• Produces the ignition spark for gas burners and ovens so gas will light when the appliance calls for heat.
• Replaces a worn or cracked electrode that can cause weak, intermittent, or no spark.
• Helps stop clicking without ignition and reduces delayed or failed light-offs when compatible with the appliance.
• Functions as the replaceable spark electrode portion of the ignitor assembly.

• One VG 230 spark plug

• Disconnect power to the appliance and shut off the gas supply before beginning service.
• Handle ceramics and electrode tips carefully to avoid damage; use insulated tools and avoid bending the electrode.
• Verify replacement compatibility with your model's parts diagram before installing.

Replacement screw for securing components in your appliance. Needed when original screw is stripped, missing, or damaged during maintenance or repair work.

Plastic plug component that secures and stabilizes cooktop grates. Replace if original plug is cracked, broken, missing, or worn to restore proper grate fit.
