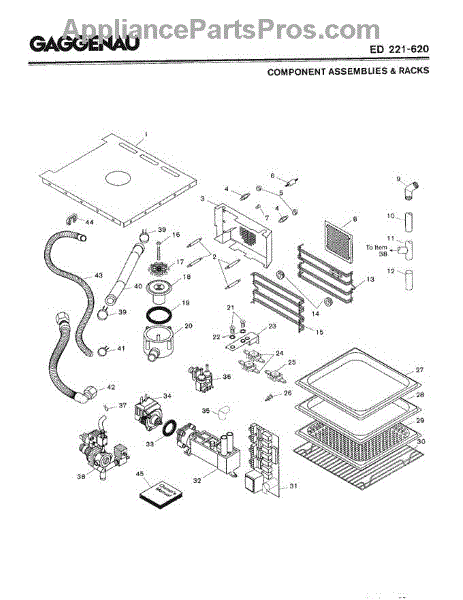

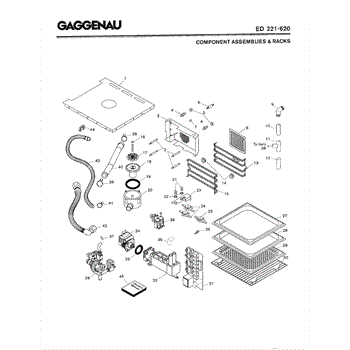

Parts for Gaggenau ED221-620: 01 - Component Assemblies & Racks Parts

This metal mesh grease filter captures airborne grease and large particles from range hood airflow to help keep the vent and exhaust path cleaner and reduce greasy buildup on internal components. What it does:

• Traps cooking grease and large particulates before they reach the blower or ducting
• Helps reduce greasy residue and buildup on internal hood surfaces
• Can improve airflow consistency when the filter is clean
• Common symptom: heavy visible grease, dark film on the filter, or smoke/odors not clearing effectively

• Turn off power to the range hood or vent before servicing
• Remove the old filter per the hood's access method (clips, slides, or screws), then insert the replacement securely
• Clean or replace regularly per the appliance owner's manual; do not operate with a damaged filter

This temperature limiter is a safety thermostat that stops heat when temperatures exceed safe limits, protecting the appliance from overheating and potential damage. It's a direct-fit replacement designed for the original thermal cutoff function. What it does:

• Monitors heater temperature and opens circuit if the unit overheats
• Prevents continuous heating that can cause component damage or fire risk
• Common failure symptoms: appliance won't heat, intermittent heating, or tripped thermal safety
• Works as part of the heating/temperature-control safety chain

• Disconnect power (and gas if applicable) before access and replacement
• Located near the heating element or blower housing; follow your model's service manual for access
• Inspect wiring and adjacent components for heat damage; replace damaged parts as needed

This PC board mount is a dedicated mounting bracket that secures the appliance control board in place, helping keep electrical connections stable and preventing damage from vibration or shifting during use. What it does:

• Secures the control (PC) board to the appliance chassis for reliable positioning
• Helps reduce board movement and vibration that can cause loose connections
• Minimizes risk of shorting from board contact with metal panels
• Needed when the board is loose, rattling, or shows visible mounting damage

• Disconnect power before starting any repair to avoid shock or damage
• Handle the control board carefully and use ESD precautions where possible
• Basic tools (screwdriver) typically required; follow OEM diagram for correct placement

This genuine replacement cooking dish provides a durable oven-safe surface for baking, roasting, and reheating foods. It restores proper fit and function to the oven cavity for safe, even cooking results. What it does:

• Holds food and bakeware while cooking in the oven
• Replaces cracked, chipped or damaged dishes that can impede proper cooking or cause spills
• Helps contain drips and crumbs for easier cleaning
• Restores correct clearance and support for oven racks and accessories

• Handle with care; dish may be heavy and slippery when wet or soiled
• Inspect for chips or cracks before each use; do not use damaged glass/ceramic parts
• Follow oven manufacturer's instructions for placement and compatible accessories
• Allow dish to cool before cleaning to avoid thermal shock; use recommended cleaning methods

This pump gasket seals the washer drain pump to prevent water leaks and ensure proper draining. It's supplied only as part of the pump assembly instead of as a separate replacement part. What it does:

• Seals the pump housing to stop water leaks around the drain pump
• Maintains proper pump pressure for reliable draining
• Helps prevent debris bypass that can cause pump jams or noise
• Common symptom: visible leak under the washer or poor/no draining

• This gasket is not sold as a standalone part; replace the entire pump assembly to get a new gasket
• Always disconnect power and water supply before servicing the washer
• Take care not to damage sealing surfaces when removing or installing the pump assembly

This water inlet hose supplies fresh water to the appliance's fill system, restoring proper fill and preventing leaks where the original hose is cracked or worn. Durable replacement for the factory inlet connection. What it does

• Delivers incoming water from the home supply to the appliance's fill valve and tub.
• Restores normal fill when original hose is split, pinched, or leaking.
• Helps prevent intermittent or no-fill symptoms caused by damaged inlet tubing.
• Works with the appliance's existing clamps and fittings when installed correctly.

• One water inlet hose assembly as shown

• Turn off water supply and disconnect power before replacing the hose.
• Inspect fittings and replace any damaged clamps or seals; tighten to a secure, leak-free fit.
• Route the hose to avoid kinks and pinching; test with a short fill cycle and check for leaks.

This water drain hose routes wastewater from the appliance to the household drain so the unit can empty properly. Durable flexible hose built to resist kinks and normal wear, restoring reliable draining and preventing pooling. What it does:

• Directs wastewater from the appliance pump to the drain plumbing
• Replaces cracked, split, collapsed or clogged drain tubing
• Helps stop leaks, slow draining, and water pooling in the appliance base
• Works with the appliance's pump and drain fittings to maintain proper flow

• Turn off and unplug the appliance and shut off water supply before starting
• Remove access panels as needed to reach hose connections; note routing before removal
• Ensure hose is seated fully on fittings and secured with the proper clamps; avoid sharp bends or kinks
• Test for leaks after reconnecting power and water; for routing specifics
