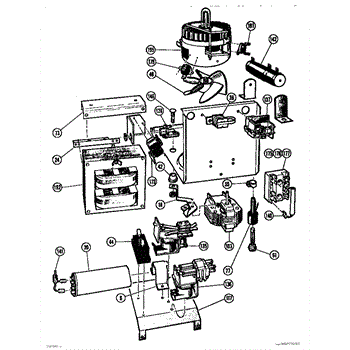

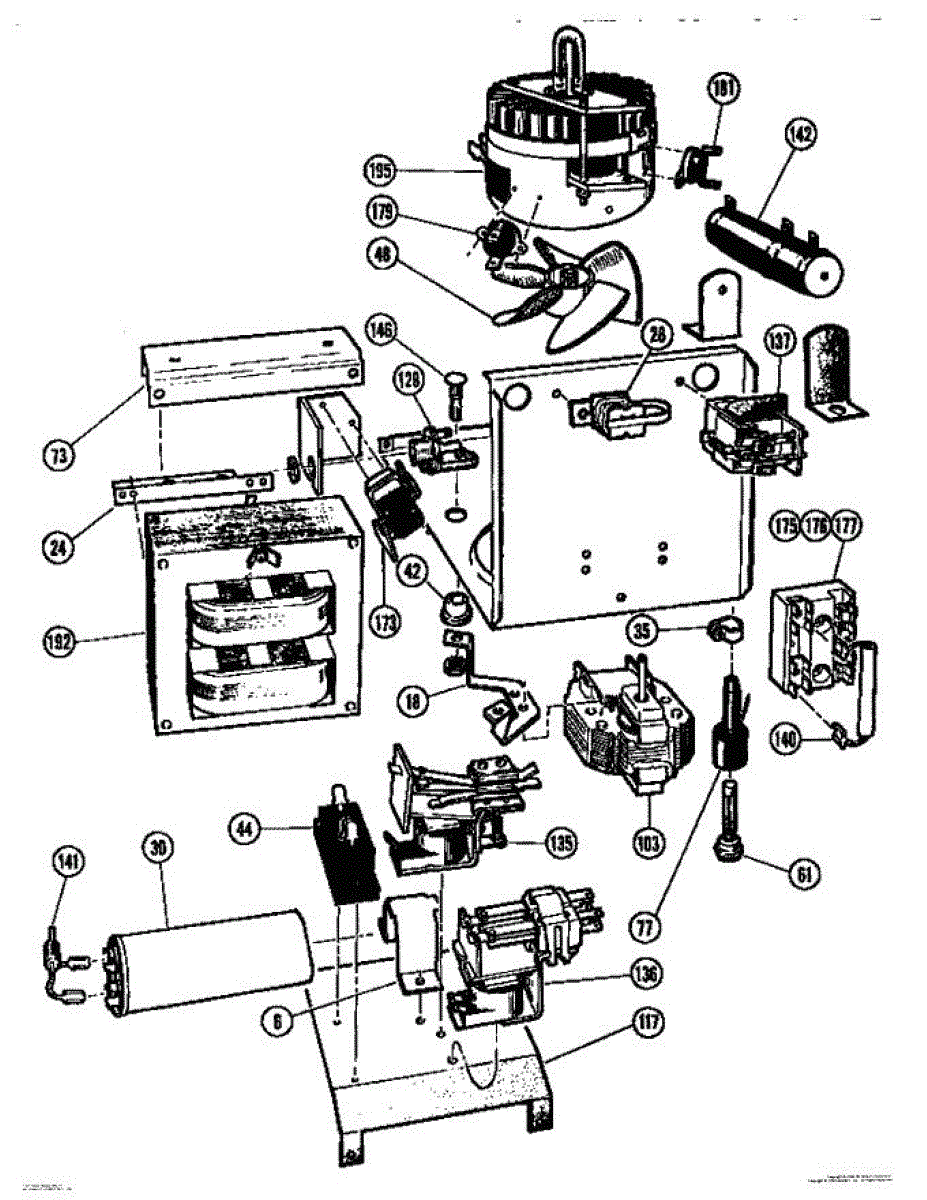

Parts for Thermador MC15: 01 - Compressor Parts

This replacement mounting bracket secures appliance components to their frames, restoring proper alignment and preventing movement. It's a simple, durable part that helps stop rattling and keeps assemblies stable during operation. What it does:

• Secures and supports internal components or subassemblies to the appliance frame
• Prevents parts from shifting, vibrating, or rubbing during use
• Helps restore proper alignment for smooth operation
• Common symptom: loose, rattling, or misaligned components near the bracket location

• Bracket only

• Turn off power to the appliance and disconnect power before starting work
• Inspect adjacent fasteners and mounting points; replace any damaged hardware
• Use manufacturer-recommended screws and torque; avoid over-tightening

This 3/8 in. cable clamp secures wiring and small hoses to the appliance chassis to prevent chafing and keep connections tidy. It's a simple replacement that restores proper routing and strain relief. What it does:

• Holds a single cable or small hose in place to reduce movement and wear
• Prevents wiring from rubbing against sharp edges or vibrating loose
• Helps maintain safe, organized internal routing for better reliability
• Commonly used where a compact clamp is needed for 3/8 in. diameter cables

• One 3/8 in. cable clamp

• Inspect surrounding wiring and routing before installing; replace any damaged wires or insulation
• Install in the same location and orientation as the original; secure firmly but avoid over-tightening
• Disconnect power to the appliance before servicing to reduce shock risk
• Use basic hand tools; no special tools required for most installations

This diode is a small rectifier used on the appliance control electronics to allow current to flow in one direction, protecting the board and enabling proper control signals. Replacing a failed diode restores correct circuit behavior. What it does:

• Provides one-way current flow on the control board to prevent reverse voltage
• Protects sensitive electronics from backfeed and voltage spikes
• Can prevent control errors caused by a shorted or open diode
• Commonly replaced when control circuits fail to power or behave intermittently

• Disconnect power to the appliance before accessing controls to avoid shock
• Handle circuit boards and components with ESD care; avoid touching traces and contacts

This thermal fuse stops excessive heat build-up by opening the circuit when temperatures get unsafe, protecting the appliance and its heating components. Replace a failed fuse to restore normal heating and safety functions. What it does

• Opens the circuit if overheating is detected to prevent damage or fire risk.
• Prevents the heating element or motor from running when the fuse is blown.
• Common symptom: appliance fails to heat or runs but produces no heat.
• Common symptom: appliance does not start or suddenly stops during a heat cycle.

• One thermal fuse.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Replace with the exact OEM part number; improper substitutes may cause malfunction or safety issues.
• Inspect surrounding wiring and heating components for faults that could cause repeated fuse failures.

This part has been discontinued by the manufacturer and is no longer available.

This listing indicates the manufacturer has discontinued this replacement part and the exact item is no longer available for purchase through this listing. Check below for next steps and options for replacement. What it does

• Not applicable — the original OEM part is discontinued and not offered here.
• If you were searching for this part due to a failed component, a functioning equivalent or updated replacement may exist from the manufacturer or aftermarket suppliers.
• Common symptoms that led customers to search for this part include the appliance not operating properly, error codes, or a non-working specific component.

• This listing is informational only; no replacement part is included or ships from this page.

• Do not attempt repairs until you confirm a valid replacement part and service instructions for your specific model.
• Contact the appliance manufacturer to identify current OEM replacements or updated part numbers.
• If an alternative or superseded part is available, confirm compatibility with your exact model before ordering.

This replacement capacitor with internal resistor helps stabilize control circuits and assist motor start in compatible appliances, restoring reliable electrical performance and preventing intermittent operation. What it does

• Provides the capacitance needed for motor start/run and helps suppress electrical noise in control circuits.
• Supports steady voltage during startup to reduce motor humming or failure to start.
• Can resolve intermittent operation, erratic control behavior, or startup delays when failing.
• Contains an internal bleed/resistor to safely discharge stored energy and reduce residual charge risk.

• Disconnect power at the breaker and unplug the appliance before accessing electrical components.
• Capacitors can hold a charge — discharge safely and use insulated tools.
• Handle carefully to avoid damage from bending leads or crushing the housing.

This part has been discontinued by the manufacturer and is no longer available.

This lock washer secures fasteners by biting into the mating surface to resist loosening from vibration and thermal cycling. It's a small but critical retaining part used on appliance assemblies where a secure, vibration-resistant connection is required. What it does

• Provides a spring clamp action that helps keep bolts and screws from backing out under vibration
• Maintains tension on threaded connections during thermal expansion and contraction
• Commonly used on motor mounts, pump assemblies, and panels that experience movement
• Can reduce intermittent electrical/grounding issues caused by loose hardware

• One lock washer

• Inspect threads and mating surfaces; replace any damaged fasteners before installing the washer
• Install with the correct-sized bolt or screw; washer must fit snugly to function properly
• Tighten to manufacturer torque specifications when available; avoid over-tightening
• Disconnect power and follow all safety precautions before servicing the appliance
