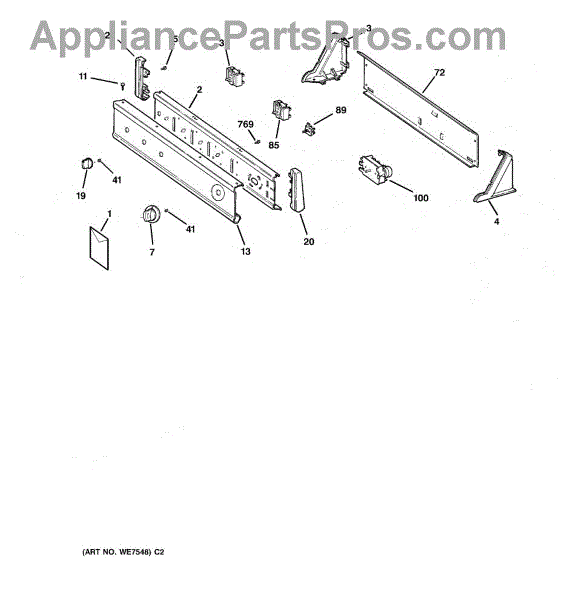

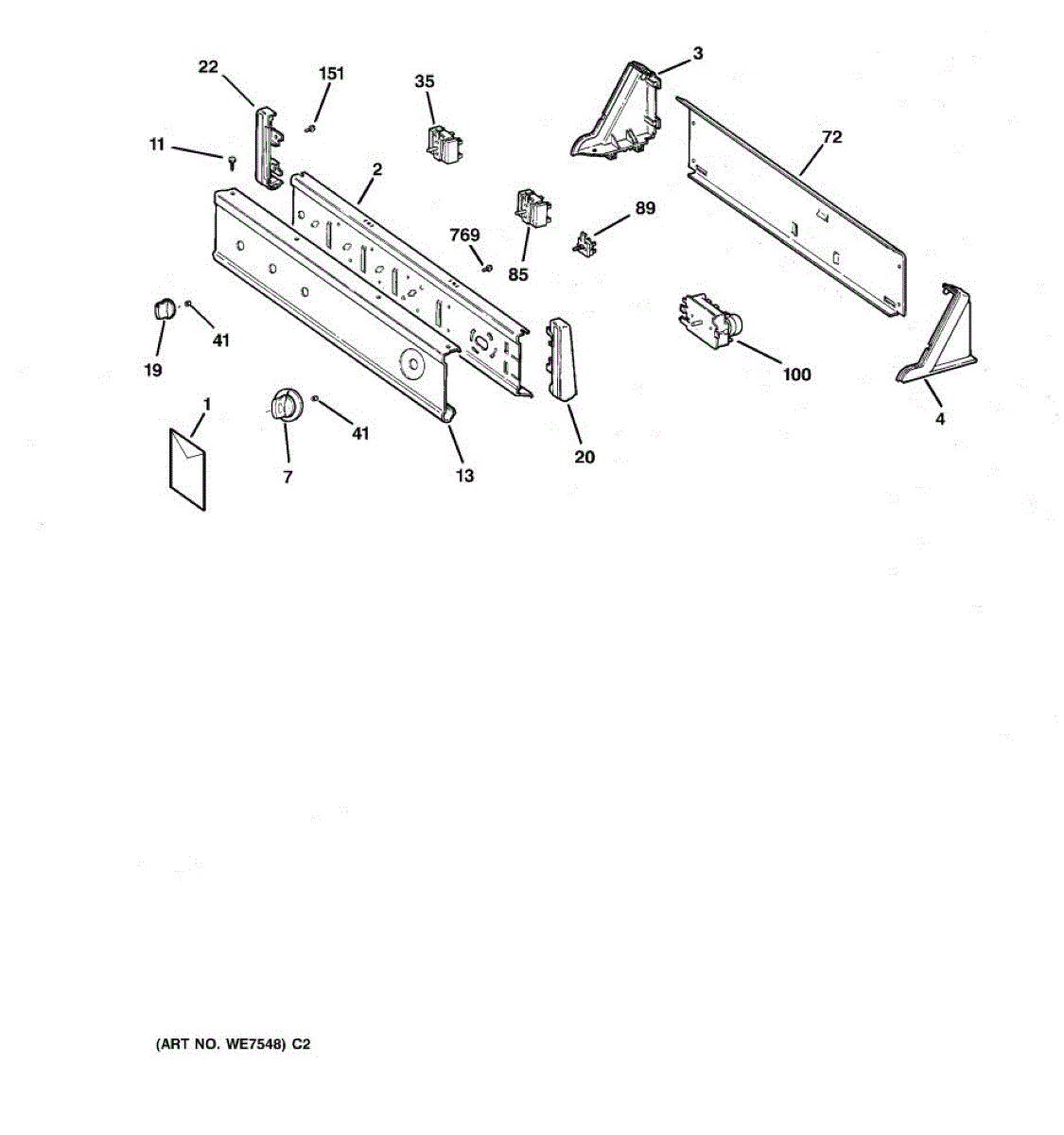

Parts for Ge NJLR473GT0WW: 01 - Control Assembly Parts

White. Left hand side

White. Right had side

8 - 18 abflt 5/8 sn bk

This Rotary Start Switch is an OEM replacement part for GE dryers It is responsible for initiating the dryer's operation when the user turns the knob to the desired cycle and presses the start button. The rotary start switch is typically located on the control panel of the dryer, where the user interacts with the various settings and functions.
The GE dryer rotary start switch can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part fixes the following symptoms:

• The dryer not starting or responding when the start button is pressed
• The start button feeling loose or not engaging properly
• The dryer starts intermittently or only when the start button is held down
• The dryer starts but immediately stops once the start button is released
• The start switch becomes unresponsive or difficult to turn
• The dryer not cycling through the different drying modes or settings

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

Size: 8 - 18 ab.
