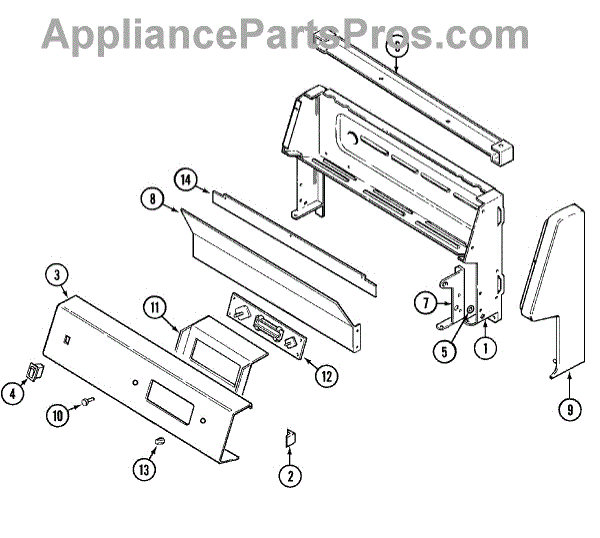

Parts for Admiral D3167XRWLT: 01 - Control Panel Parts

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Color: Black

This part has been discontinued and is no longer available

This shaft-bit generator is a replacement drive shaft component that transfers motor rotation to the appliance's moving assemblies, restoring proper mechanical motion and reducing noise from damaged or worn shaft parts. What it does:

• Transfers rotary motion from the motor to the driven components for normal operation
• Helps maintain alignment and smooth rotation of connected parts
• Worn or broken units can cause grinding, rattling, or loss of movement
• Replacing a failed shaft can stop intermittent operation and restore reliable performance

• High-level replacement only: remove power before accessing internal assemblies
• Follow appliance-specific disassembly steps; secure panels and wiring before removing the old shaft
• Inspect adjacent bearings, seals, and mounting hardware; replace any damaged items
