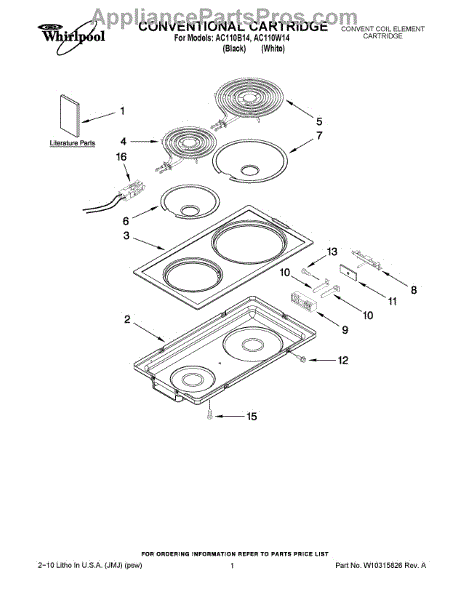

Parts for Whirlpool AC110B14: 01 - Conventional Cartridge Parts

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

2100W. Size: 8 inch. Location: Right front.

The 6 inch Drip Pan is an OEM replacement part for Whirlpool ranges and ovens. It is designed to catch spills, drips, and overflows that may occur during cooking, helping to keep the oven cavity clean and preventing potential messes.

Symptoms of a need to replace the drip pan:

• Excessive buildup of baked-on or burnt food residue
• Warping or deformation of the pan due to high temperatures
• Rust or corrosion compromising the integrity of the pan

Causes of a faulty or damaged drip pan can include general wear and tear from regular use, exposure to acidic or corrosive spills, or physical impact or mishandling during cleaning or maintenance.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

The 8 inch Drip Pan is an OEM replacement part for Whirlpool ranges and cooktops. It is designed to catch spills, boilovers, and other messes that may occur during cooking, helping to keep the cooktop surface clean and preventing potential damage.

Symptoms of a need to replace the drip pan include:

• Excessive wear, warping, or damage to the pan itself
• Difficulty fitting or securing the pan properly under the burners
• Staining or discoloration that cannot be removed through regular cleaning

Causes of a faulty drip pan can include exposure to excessive heat, spills of acidic or abrasive substances, general wear and tear over time, or improper cleaning methods.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges and cooktops.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This plastic terminal block insulator protects the dryer's power terminal area by covering exposed connections and helping prevent accidental shorts or arcing. Replaces a cracked or melted insulator to restore basic electrical protection at the terminal block. What it does:

• Covers and insulates the terminal block to reduce risk of electrical shorts and arcing
• Keeps wiring routed and separated at the power connection point
• Helps prevent damage from heat or contact that can lead to melting or sparking
• Commonly replaced when the original insulator is cracked, burned, or deformed

• Always disconnect power (unplug or shut off house circuit) before servicing electrical components.
• Inspect terminal block and wiring for heat damage; replace damaged wires or terminals as needed.
• Ensure terminals are cool and dry before reinstalling the insulator; seat it fully over the block for proper protection.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Replacement screw used to secure components and panels in household appliances, restoring proper fit and effectively reducing movement or rattling from loose or missing fasteners. What it does:

• Secures panels, trim and internal components to keep parts aligned and stable.
• Helps stop rattling, vibration or noise caused by loose or missing fasteners.
• Restores proper mounting for brackets, covers and control housings.
• Useful wherever a worn or stripped screw is causing play or loose parts.

• Disconnect power and unplug the appliance before doing any work.
• Use the correct driver and size to avoid stripping the head or threads.
• Tighten snugly but avoid overtightening—replace with the exact OEM screw when specified.
