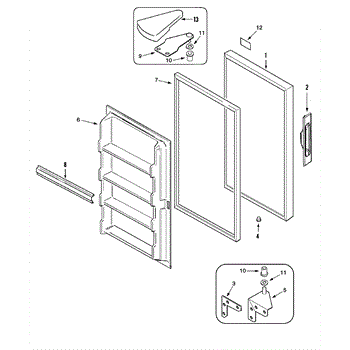

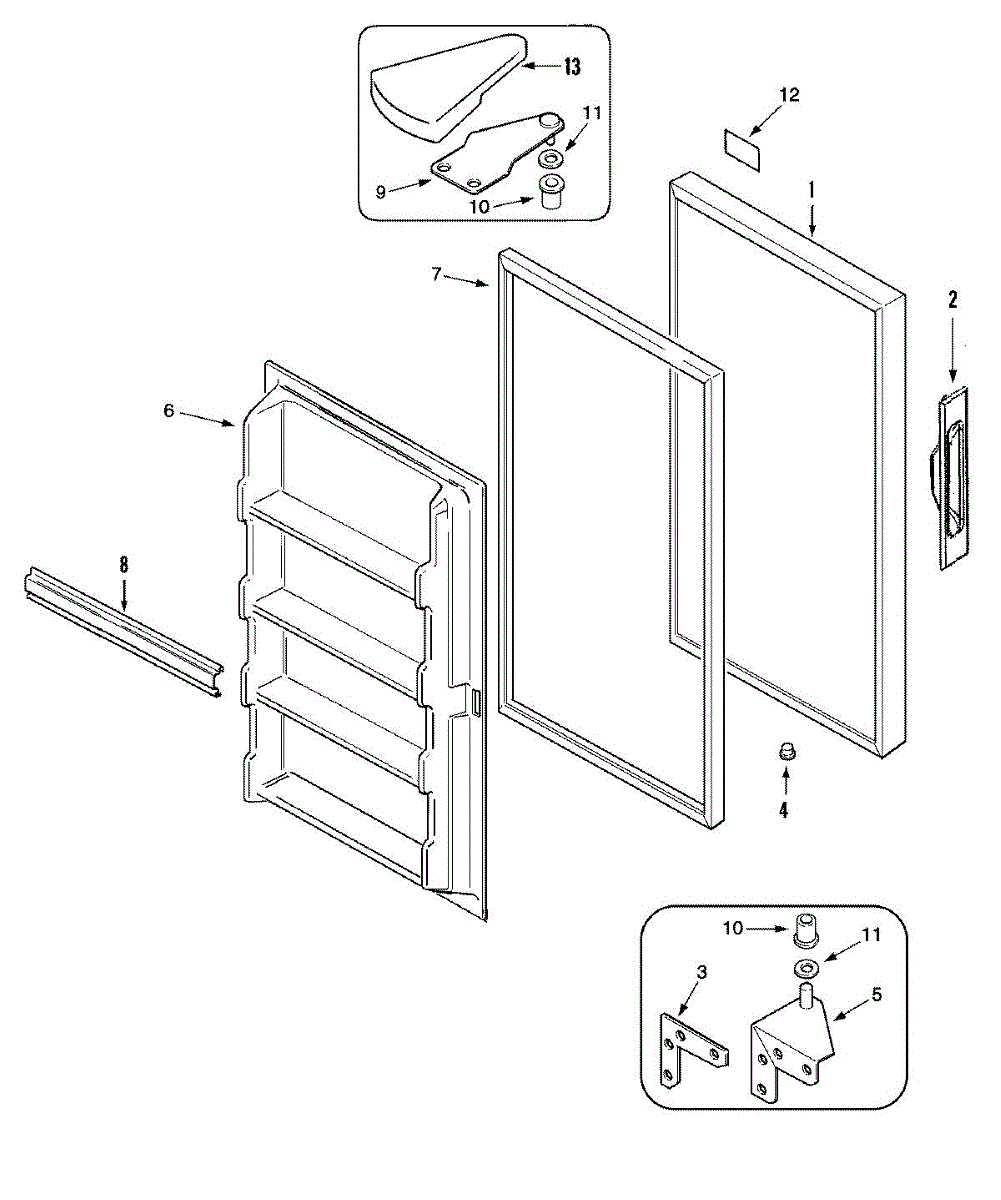

Parts for Amana AFU1202BW: 01 - Door Parts

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

This is a replacement name plate — a thin adhesive label that restores factory identification and on-surface markings so your appliance looks finished and readable. It's a simple cosmetic replacement that preserves original appearance. What it does:

• Provides factory identification markings and surface graphics for the appliance
• Restores faded, scratched, or missing labeling that affects appearance
• Helps make model/feature markings readable where visible on the exterior
• Serves as the original-style surface label used by the manufacturer

• One replacement name plate

• Disconnect power to the appliance before starting any work
• Clean and dry the mounting surface thoroughly for proper adhesion
• Peel adhesive backing and align carefully; press firmly to ensure full contact
• If adhesive residue remains from the old plate, remove it completely before installing
