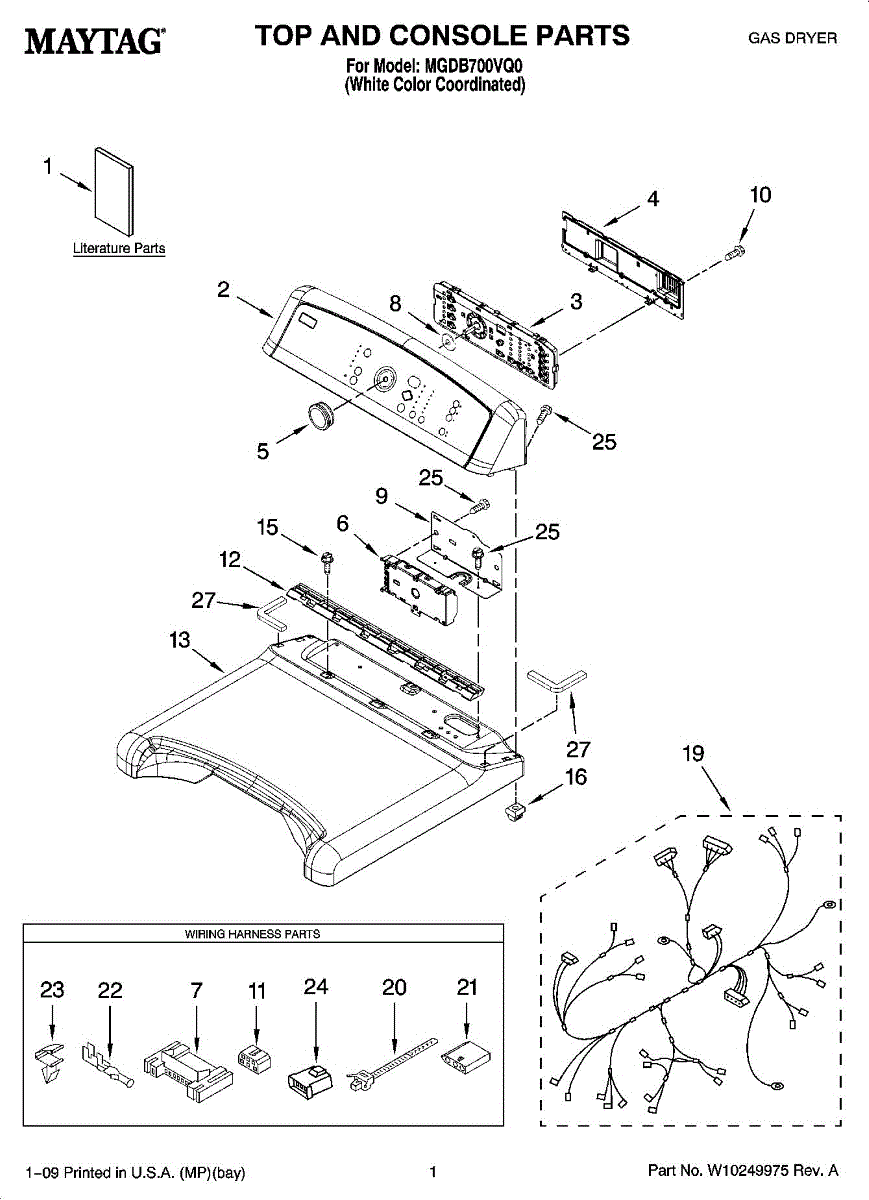

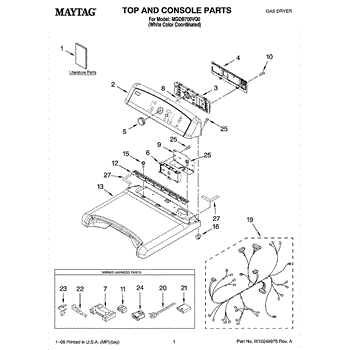

Parts for Maytag MGDB700VQ0: 01 - Top And Console Parts

This electronic control board manages the appliance's user interface and cycle operations so your appliance runs the selected programs and responds to controls. Replacing a faulty board restores reliable control and display functions. What it does:

• Controls and sequences cycles, timers and user commands for normal operation
• Manages display and button/knob inputs so selections register correctly
• Helps coordinate power to motors, valves and heating elements as designed
• Common symptom: appliance is unresponsive, displays errors, or cycles incorrectly

• 1 electronic control board

• Disconnect power before starting any repair to avoid shock or injury
• Handle the board carefully; avoid static discharge and contact with connectors
• Keep screws and mounting hardware for reinstallation; align connectors fully before securing
• Test appliance after reconnecting power and reassembling panels

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Screw for control panel.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This genuine wire harness is the complete wiring assembly that routes power and control signals between the appliance's control and its components, restoring reliable electrical connections and consistent operation. What it does:

• Routes power and control signals between the control board and components
• Replaces damaged or frayed wiring that can cause intermittent operation
• Restores continuity to components that fail to receive power
• Helps eliminate visible burn marks, melted insulation, or loose connector issues

• Disconnect power before starting any repair to avoid electrical shock
• Label or photograph existing wire locations before removing the old harness to ensure correct reconnection
• Inspect connectors and mating terminals for damage; replace any damaged hardware separately
• Secure harness away from moving parts and heat sources; test appliance function after installation

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

For mating terminal use WP94614.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair
