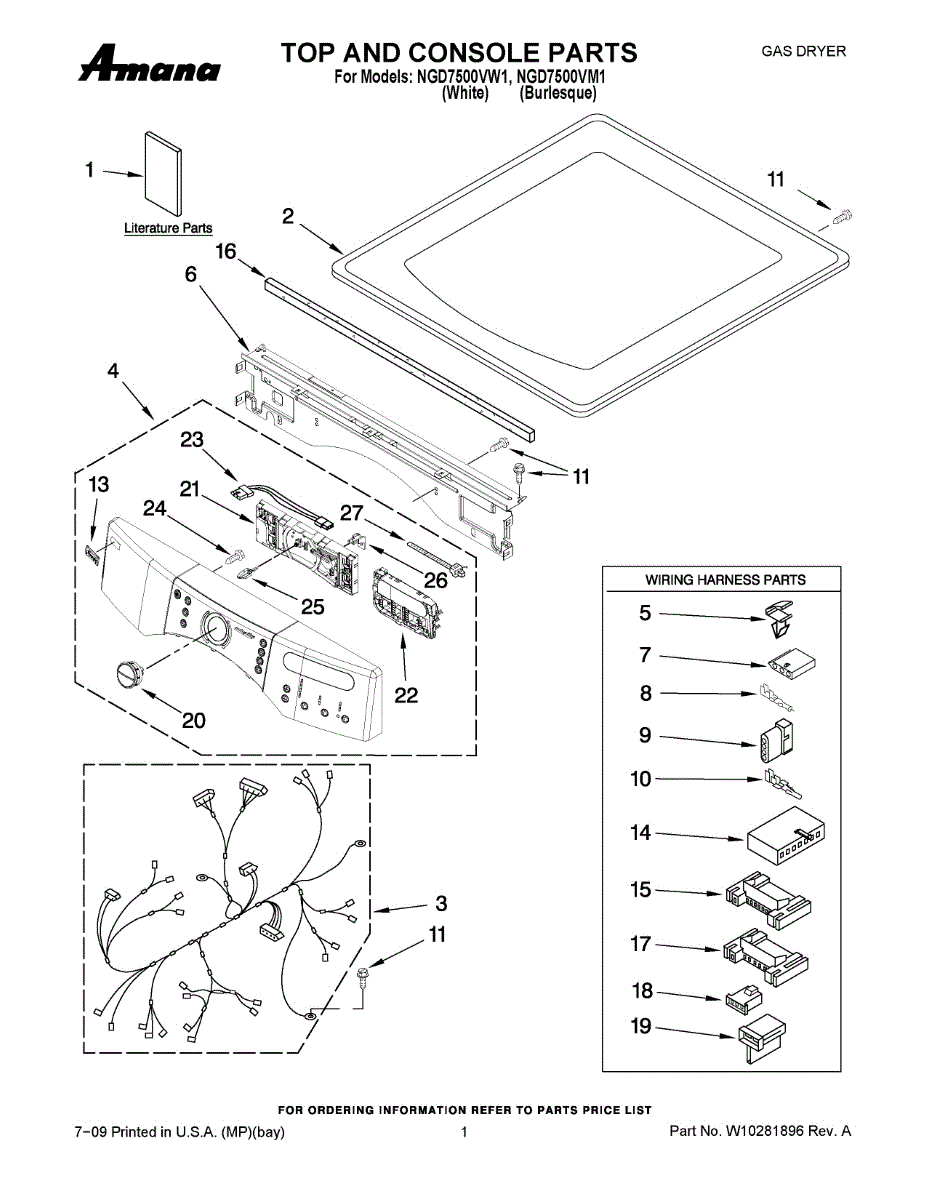

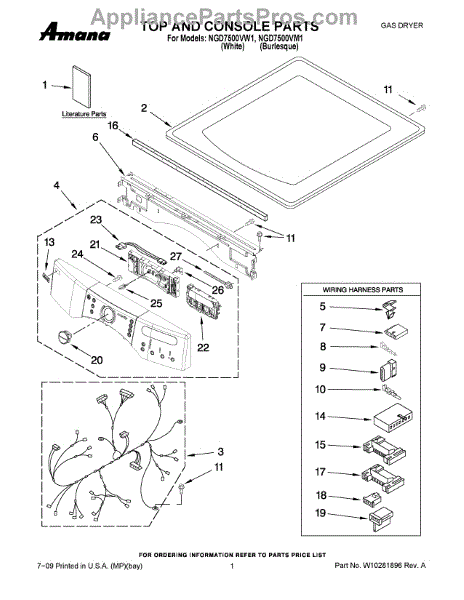

Parts for Maytag NGD7500VM1: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This round control knob replaces a worn or broken range/oven control knob so you can easily select heat settings and operate the appliance with a secure, easy-grip control. Restores tactile control and clear setting selection. What it does:

• Fits on the range/oven control shaft to allow selection of heat or function settings
• Provides a secure grip for turning burner or oven controls
• Replaces damaged, cracked, or missing knobs that prevent accurate control
• Helps restore proper alignment and detent feel when shifting settings

• Pull off the old knob and push the replacement onto the control shaft until seated; no special tools typically required
• Ensure the control is in the OFF position before removing or installing the knob
• If knob does not seat properly, verify shaft type and orientation; do not force—stop and confirm correct fit
• Disconnect power to the appliance before working on internal controls or wiring

This is a single replacement screw used to secure appliance panels and components. It restores proper fastening to help eliminate looseness and rattling and keep parts aligned for safe operation. What it does:

• Secures trim, panels or internal components to maintain proper alignment
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or stripped screws for safe, reliable fit
• Works wherever the OEM screw specification and fit match the original

• One screw as shown

• Disconnect power and/or gas before accessing internal components
• Use the proper driver size and avoid over-tightening to prevent thread damage
• Verify correct screw placement against the appliance's service diagram

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it
