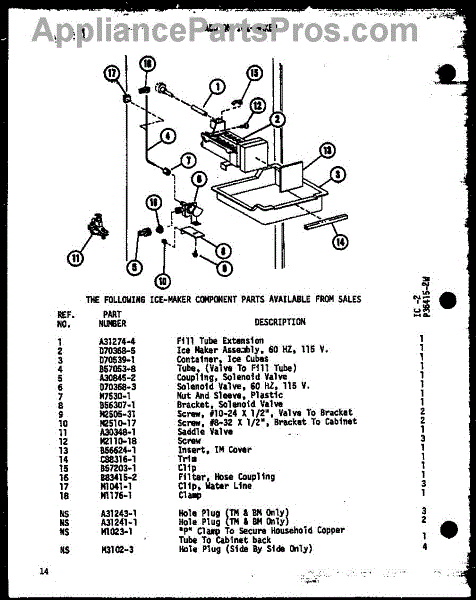

Parts for Amana IC-2 / P3641502W: 02 - Add On Ice-Maker Parts

This refrigerator ice bucket stores ice made by the icemaker and positions it for dispensing. Replacing a cracked or warped bin restores smooth ice flow and helps prevent jams, spills, and mess inside the freezer.

• Holds and contains ice cubes in the freezer for easy access and dispensing
• Interfaces with the auger/crusher assembly in dispenser-equipped models
• Helps correct issues like ice jamming or inconsistent dispensing caused by a damaged bin
• Addresses visible damage such as cracks, chips, warping, or a bucket that won't seat properly
• Can reduce stray ice or moisture under/around the bin when the original is compromised

• Unplug the refrigerator and turn off the icemaker/water supply before starting
• Remove the old bin; transfer any auger/crusher components from the original if your model uses them
• Seat the new bucket fully so it latches/aligns correctly with the drive
• Restore power and verify proper dispensing operation

Ice maker water line: 1/4x 8ft.

The Single Water Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water to the refrigerator’s ice maker and water dispenser, ensuring a consistent and reliable supply of water for ice production and dispensing.

Causes of a bad single water valve can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions.

Symptoms of a bad single water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the water dispenser is activated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch. Nut for plastic water line.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This part has been discontinued by the manufacturer and is no longer available.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free
