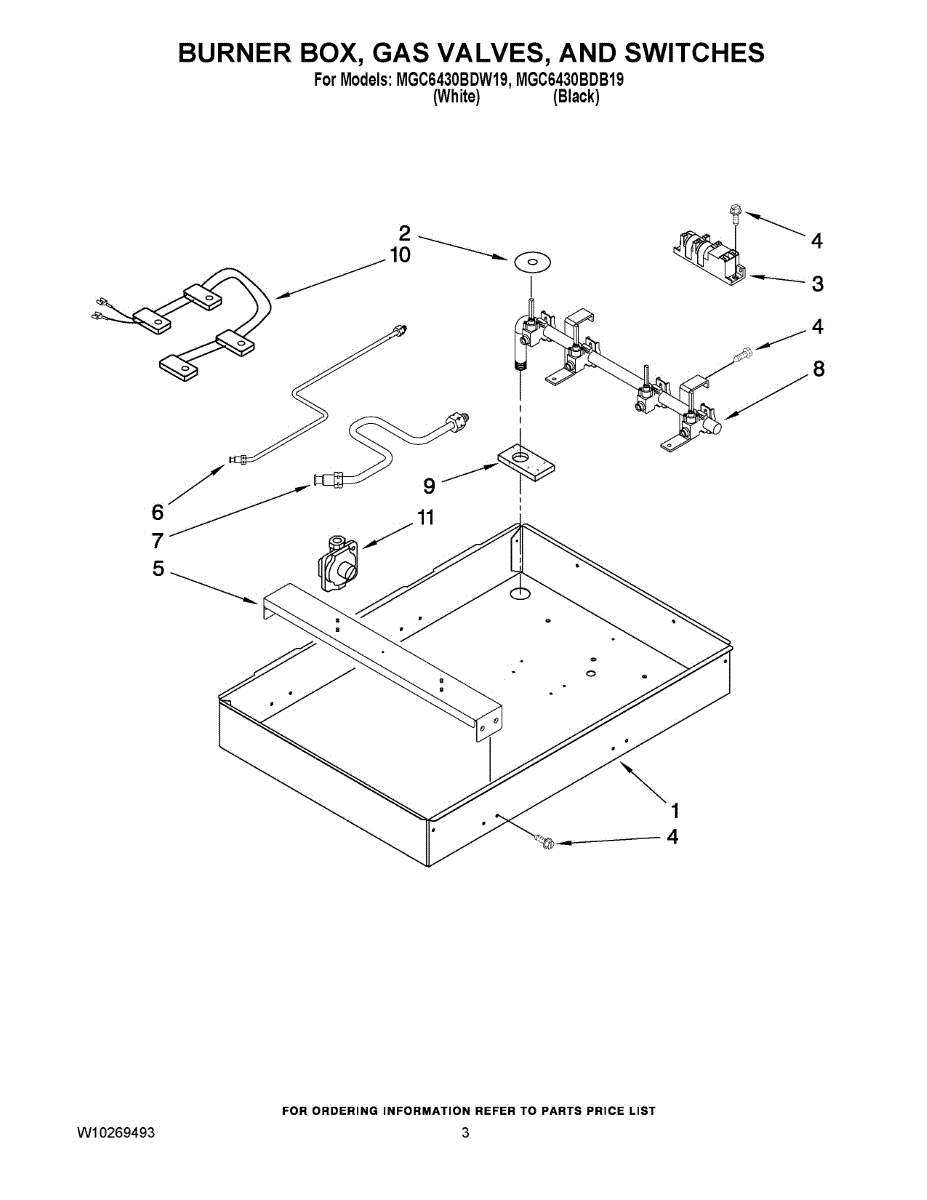

Parts for Maytag MGC6430BDB19: 02 - Burner Box, Gas Valves, And Switches Parts

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use
