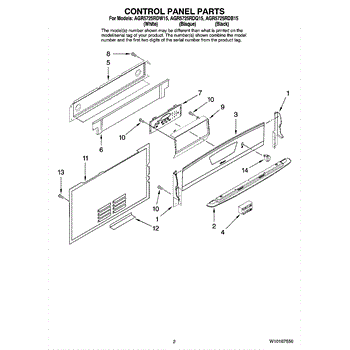

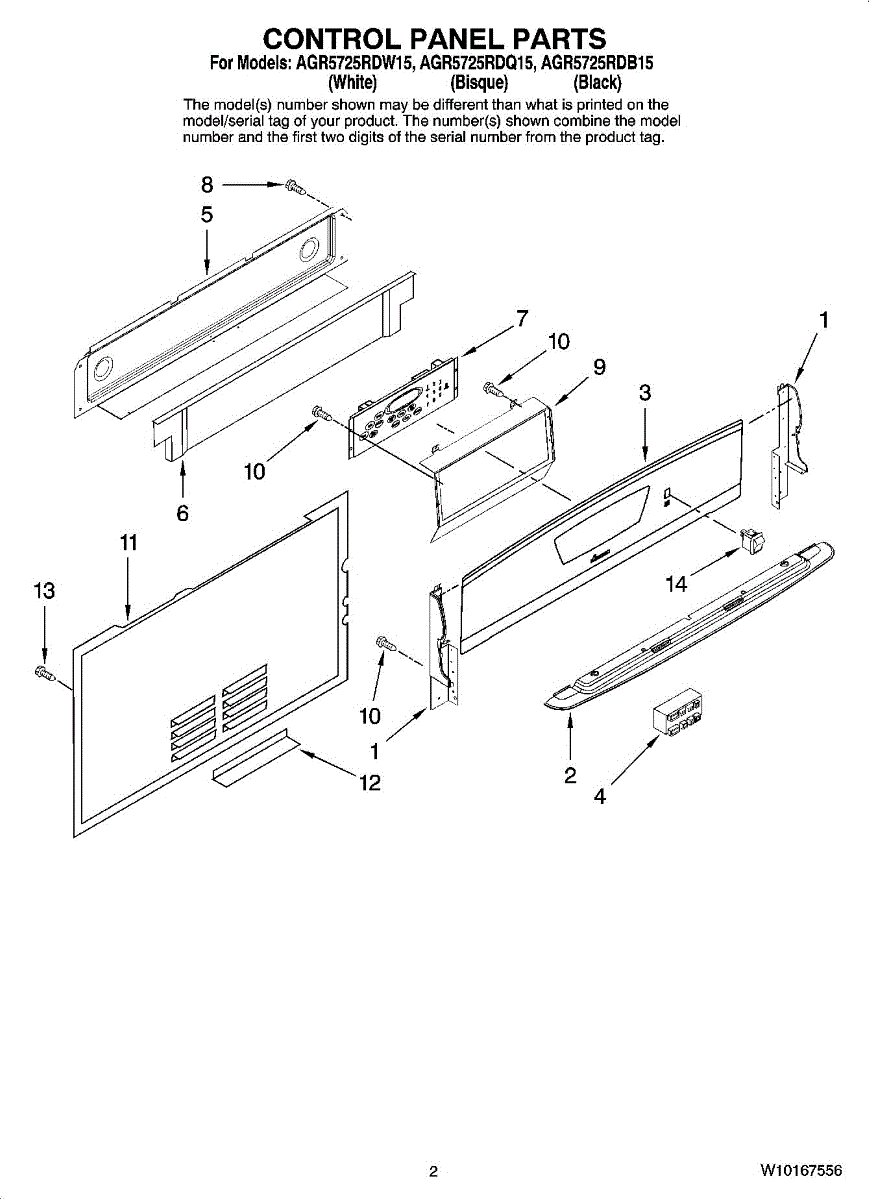

Parts for Maytag AGR5725RDW15: 02 - Control Panel Parts

Biscuit. Left hand side

Black. Right hand side

White. Right hand side

White. Left hand side

Color: White

A replacement spark module that controls timed ignition sparks to burner electrodes so gas burners light reliably. Restores proper ignition when the cooktop clicks continuously or burners fail to light. What it does:

• Sends high-voltage sparks to the burner ignitors so gas burners ignite
• Stops continuous or rapid clicking when the module is faulty or intermittent
• Helps diagnose ignition issues when used with known-good ignitor electrodes and harnesses
• Works as the electronic control for the cooktop/range ignition system

• Disconnect electrical power and shut off gas supply before beginning service
• Handle the board and connectors carefully to avoid static damage; do not touch exposed contacts
• After installation, test all burners for correct ignition and check for gas leaks before normal use

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components in place to restore proper alignment and reduce movement. It provides a stable connection point to keep assemblies from shifting during normal use. What it does:

• Holds and supports a specific internal assembly or panel to prevent loosening or sagging
• Restores correct alignment when a worn or broken bracket causes parts to sit unevenly
• Reduces vibration and rattling that can occur from unsecured components
• Helps maintain safe, reliable operation by keeping fastened parts in position

• One mounting bracket

• Disconnect power to the appliance before starting any repair
• Installation typically requires common hand tools; keep original fasteners if reusable
• Inspect surrounding parts and mounting points for damage; replace any stripped threads or broken clips
• Wear gloves to protect against sharp edges and follow all safety guidelines from the appliance manufacturer

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Color: White
