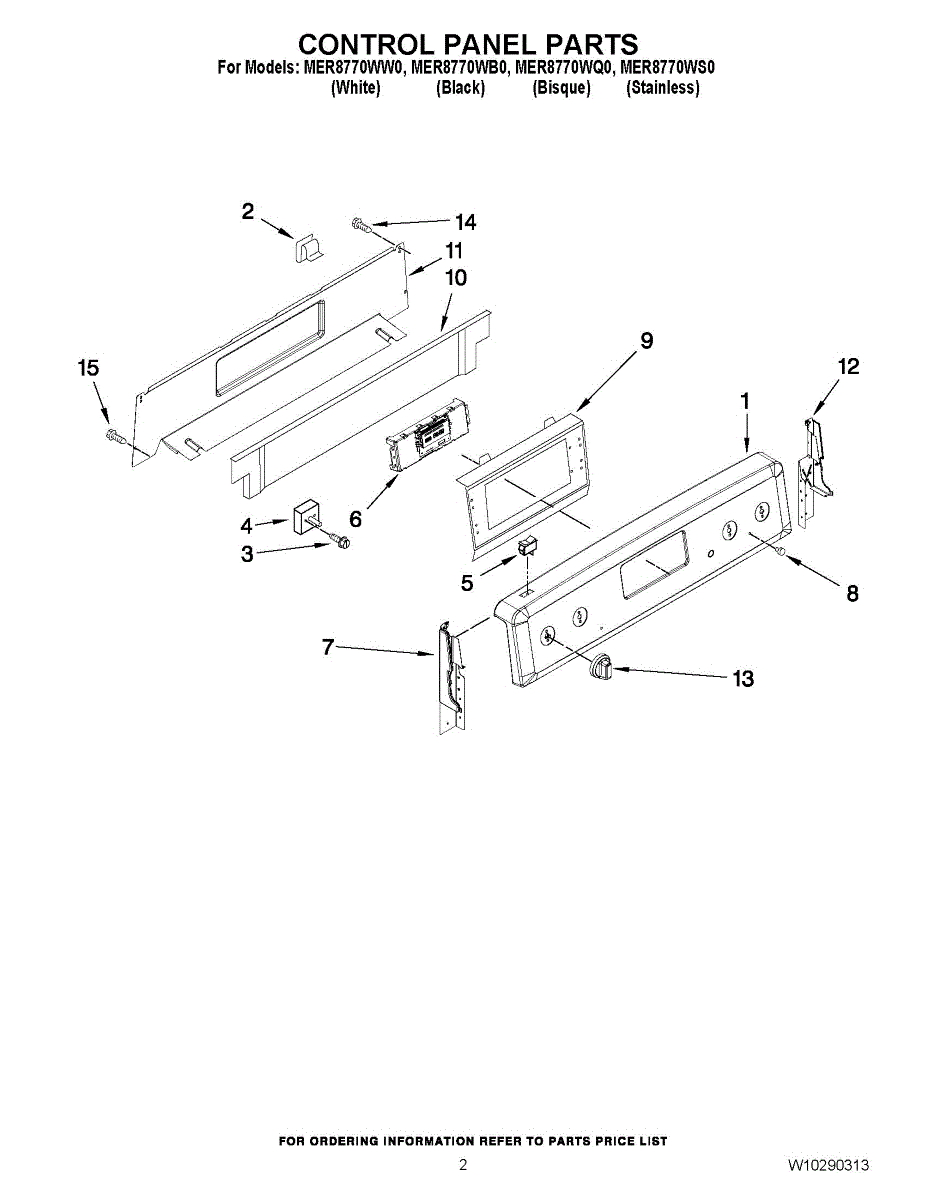

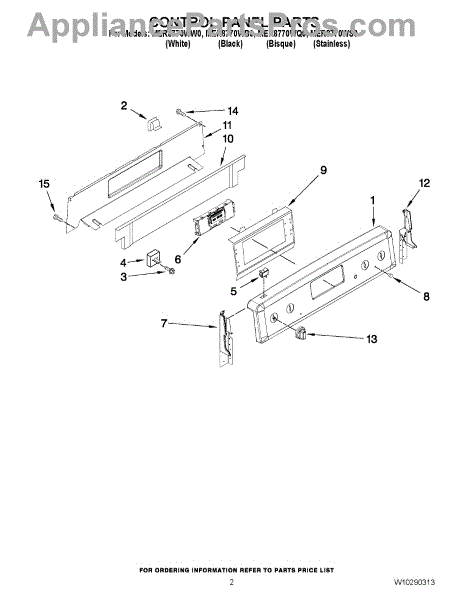

Parts for Maytag MER8770WS0: 02 - Control Panel Parts

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

The Infinite Switch is an OEM replacement part for Whirlpool ovens and ranges. It is a crucial component that controls the flow of electricity to the heating elements, allowing for precise temperature regulation during cooking.

Symptoms of a need to replace the infinite switch:

• Oven or range not heating properly or cycling on and off erratically
• Inability to maintain consistent temperatures during cooking
• Knob or dial feeling loose or not turning smoothly
• Heating elements not turning on or off as expected

Causes of a faulty infinite switch can include general wear and tear, electrical malfunctions, or physical damage due to impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven and range models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit

Color: White

Color: Black. Instruction sheet included.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

Color: White

The Range Knob is an OEM part for Whirlpool ranges. This component allows the user to control the heat output for elements on the stovetop. It is designed to fit snugly onto the control switch and rotates smoothly to adjust the desired level of heat.

A range knob may go bad due to factors like frequent use, physical impact that causes it to crack or break, or worn internal parts that prevent it from gripping the control valve securely.

Color: Black

Symptoms of a bad Range Knob include:

• Difficulty in adjusting element heat
• Knob slipping or not gripping the control valve
• Cracked, broken, or missing knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

Screw for side trim.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
