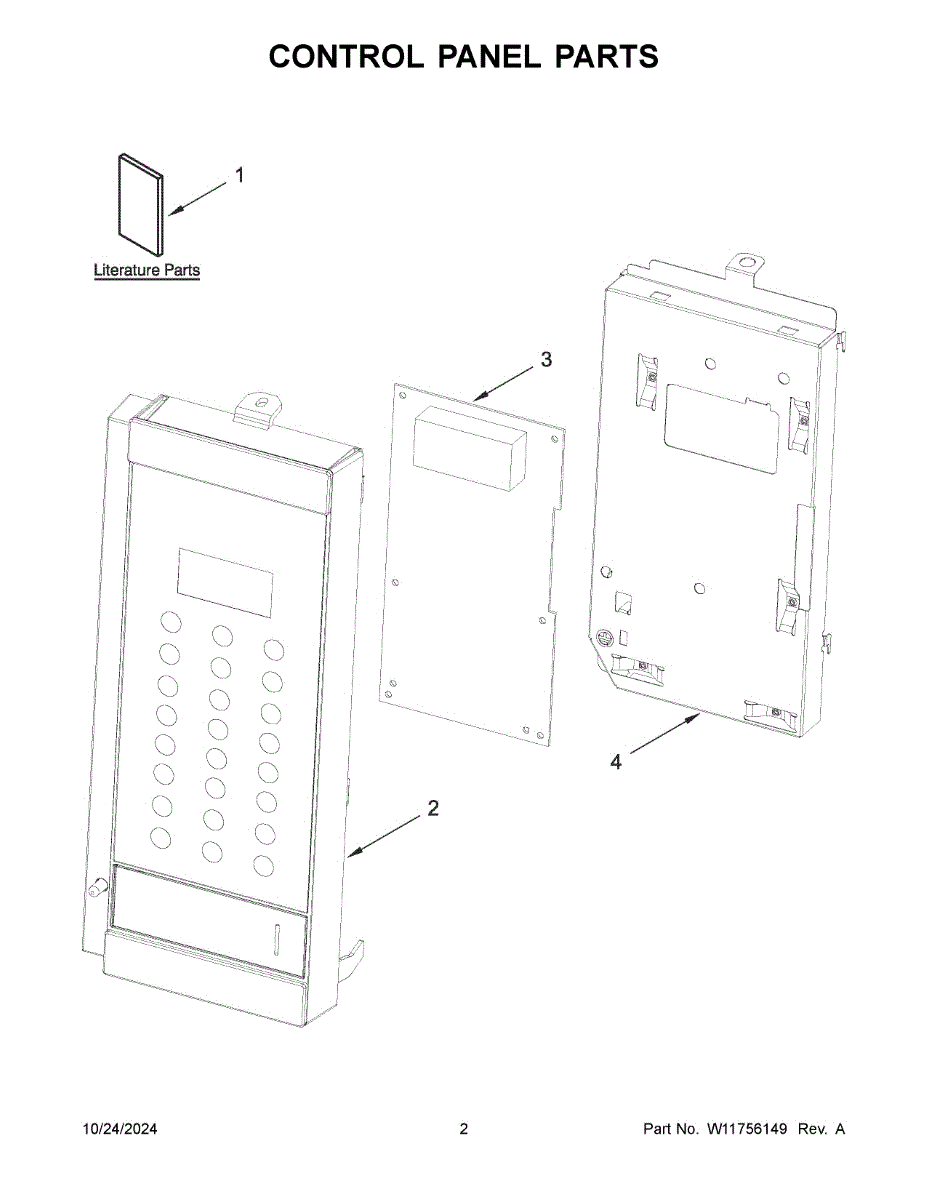

Parts for Whirlpool UMV1170LS02: 02 - Control Panel Parts

Display blank or buttons not responding? This electronic control panel restores user controls and display functions. Moderate DIY repair with proper setup.

This control panel is the user-facing interface that houses the appliance's buttons and display, restoring reliable control and clear status feedback for cycle selection and settings. What it does

• Provides the main button and display assembly used to select cycles, options and start/stop functions
• Transmits user commands to the appliance's control system so selected functions run correctly
• Replaces worn, cracked, or unresponsive panels that cause buttons not to register or displays to be unclear
• Helps resolve symptoms like unresponsive keys, missing display segments, or intermittent control behavior

• Disconnect power (unplug or shut off breaker) before starting any repair
• Basic hand tools typically required; panel may fasten with clips or screws and could require removing trim or console
• Handle with care to avoid damaging the display or keypad; transfer any clips or trim from the old panel if needed

This control panel is the user interface assembly that lets you select and control oven functions, cycles, and settings. It restores responsive touch/buttons and readable display feedback so the range operates as intended. What it does

• Houses the oven/range touchpad/buttons and display used to select cook modes, temperatures, and timers.
• Passes user commands to the range's electronic control so cycles start and stop when instructed.
• Can resolve symptoms like unresponsive or intermittent buttons, no display feedback, or inability to change settings.
• Works with the range's main control board to communicate user selections.

• One control panel assembly.

• Disconnect power (unplug or switch breaker off) before servicing to avoid electric shock.
• Handle gently to avoid damaging the display lens, touchpad, ribbon cable, or connector pins.
• Installation typically requires removing the oven/range back or front bezel and unplugging/reconnecting the panel ribbon/plug — keep hardware organized.

Fix a microwave light that won't turn off or unit that won't power on. This electronic control board replaces failed relays and controls. DIY-friendly repair.
