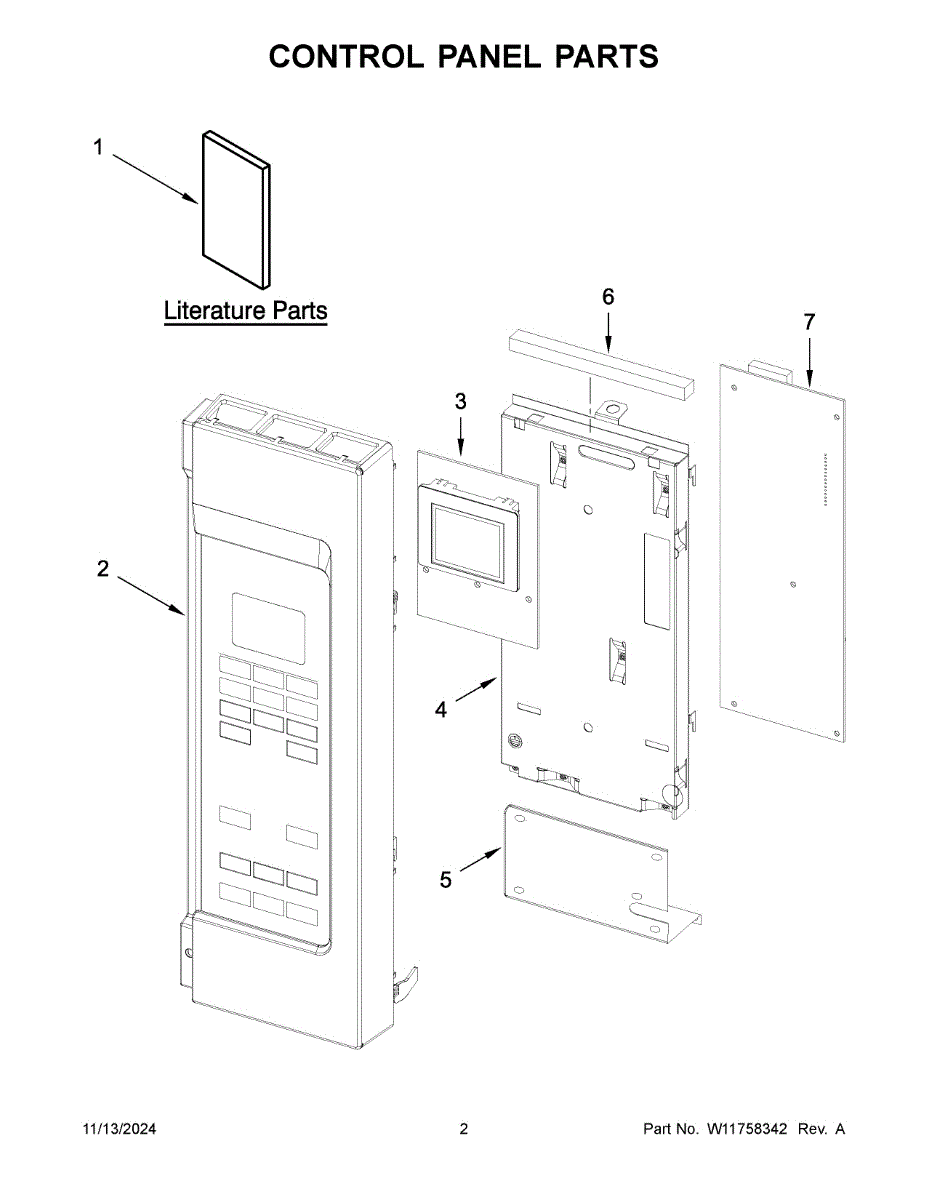

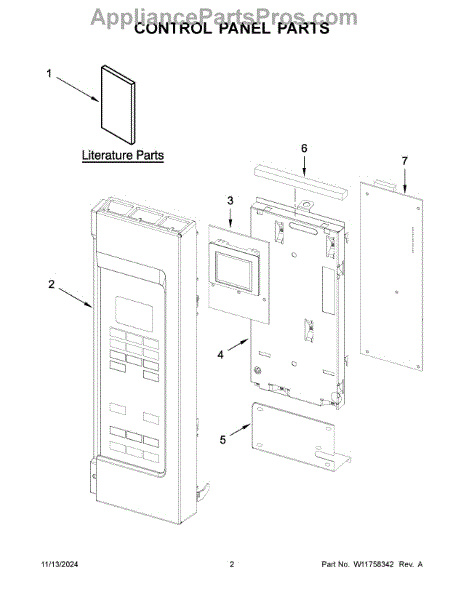

Parts for Whirlpool WMMS3330RT00: 02 - Control Panel Parts

This electronic control panel is the user interface for your appliance, replacing a damaged or unresponsive console so you can restore normal control of settings and cycles. It fits OEM specifications and mounts in the console area. What it does:

• Houses the buttons/touchpads and display for selecting cycles, temperature, and options.
• Sends user commands to the appliance's main control board for execution.
• Common symptoms it addresses: unresponsive or stuck buttons, blank or erratic display, or inability to select cycles.
• Interfaces with the console trim and internal wiring harness to relay signals.

• Disconnect power to the appliance before beginning any repair to avoid shock or damage.
• Handle the board and display carefully to avoid static damage; avoid touching circuitry and use anti-static precautions if available.
• Installation typically requires removing the console trim and disconnecting the wiring harness; keep track of fasteners and connector locations.
