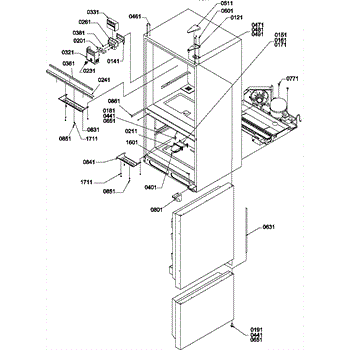

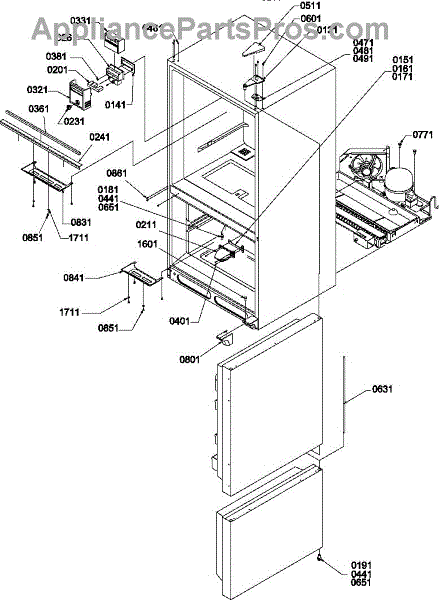

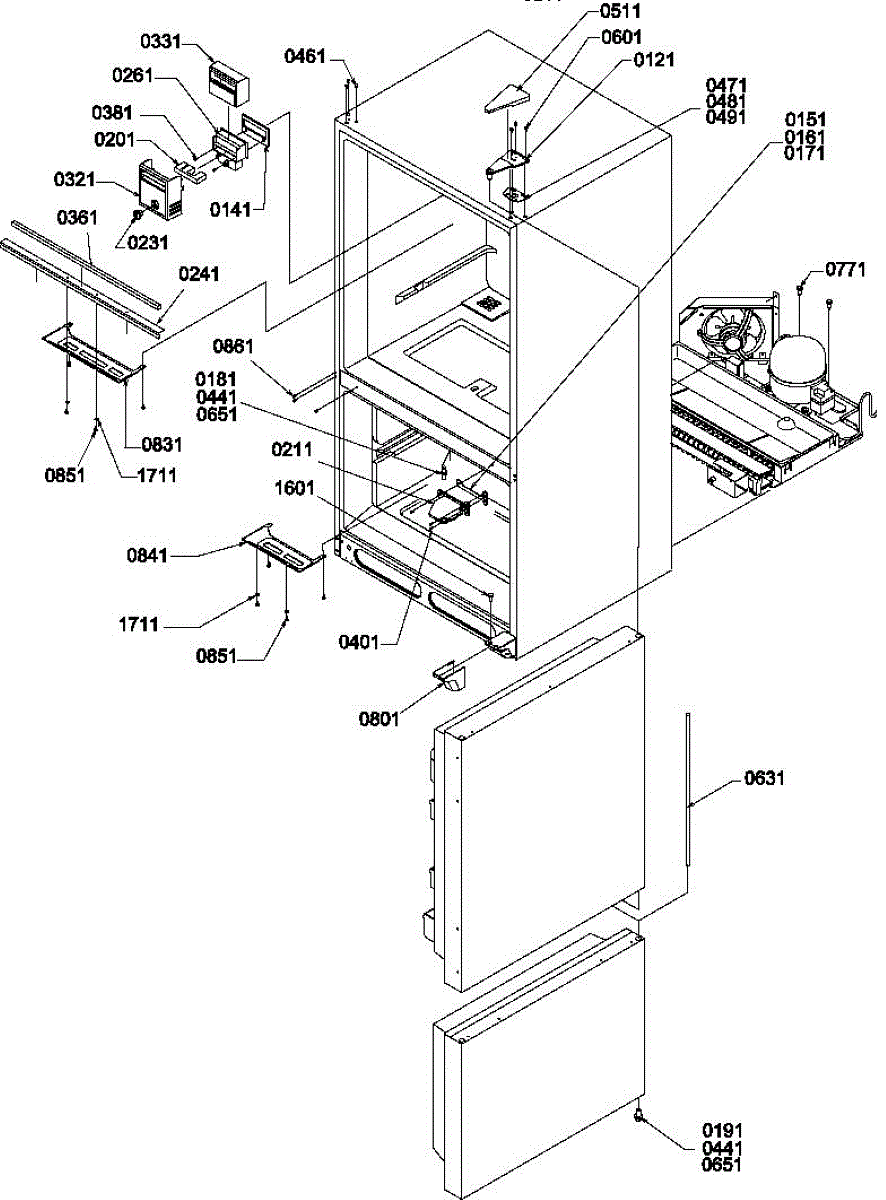

Parts for Amana BR22TE / P1196710W E: 02 - Controls & Light Covers Parts

A replacement center hinge pin that secures the refrigerator door at the center hinge assembly to restore proper pivoting and alignment. Use this pin to correct door sag or uneven closing caused by a worn or bent hinge pin. What it does

• Secures the door to the center hinge so the door can pivot smoothly.
• Restores proper door alignment and helps the door seat evenly against the cabinet.
• Commonly used to address door sag, rubbing, uneven gaps, or difficulty closing.
• Works as a direct replacement for the center hinge pivot in the hinge assembly.

• Always disconnect power to the appliance before servicing to avoid electrical hazards.
• Support the door and follow the appliance manufacturer's hinge removal steps before removing or installing the pin.
• Inspect surrounding hinge components (bushings, brackets) for wear while replacing the pin; replace as needed.

This Bottom Hinge Pin supports the refrigerator door at the lower hinge, providing a smooth, stable pivot. Replace a worn or bent pin to restore proper door alignment, closing action, and gasket sealing.

• Serves as the pivot point for the door on the bottom hinge bracket
• Helps maintain alignment so the door gasket seals correctly
• Wear/failure symptoms can include door sagging, wobble at the hinge, squeaks or grinding, and poor self-closing
• Replacing a damaged pin can reduce hinge play and improve door operation

• Disconnect power; turn off water supply if working near a dispenser line
• Remove items from the door and support the door to prevent strain on hinges
• Detach bottom hinge fasteners, lift door off, replace the pin, and reassemble
• Adjust hinges as needed

This part has been discontinued and is no longer available.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This nonmetal shim spaces and cushions appliance components to improve alignment and reduce rubbing or vibration. Use it to replace a missing or worn shim and help restore quieter, smoother operation. What it does:

• Provides a thin, durable spacer to correct component alignment and clearances
• Cushions parts to reduce rubbing, squeaks, and vibration during operation
• Helps stabilize panels, housings, or assemblies that sit unevenly
• Can prevent premature wear where metal parts contact one another

• Disconnect power (and water, if applicable) before accessing internal components.
• Verify exact shim location against the appliance diagram; position shim between mating surfaces as shown.
• Use basic hand tools as needed; ensure parts are reassembled and fasteners are secure before testing.

A direct-replacement Plug B push button for the appliance control panel that restores tactile operation for the associated function. Ideal for replacing cracked, worn, or missing buttons so controls respond and look right again. What it does:

• Replaces the Plug B push button on the appliance control/interface so the linked control works properly.
• Provides the tactile surface users press to select a setting, cycle, or function.
• Common symptoms this part can fix: button is cracked, sticking, missing, or no longer actuating the switch.
• Cosmetic refresh when a button is faded or damaged.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Replacement typically requires removing the control panel or trim; keep screws and small parts organized.
• Handle the button and panel clips gently to avoid breaking plastic retainers.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

A non-metal shim used to stabilize and level your appliance for quieter, more reliable operation. Simple, low-profile support that helps correct minor height and balance issues so doors and drawers align and appliances sit securely. What it does:

• Adds thin, non-metallic spacing under feet or frame to correct slight height differences
• Helps stop rocking or tipping that can cause noise, vibration, or misaligned doors
• Supports even weight distribution to reduce uneven wear on adjustable legs
• Useful when adjusting leveling feet can't fully correct a gap or tilt

• Place shim under the appliance foot or frame where additional height or support is needed
• Re-check appliance level and stability after installing; add/remove shims as required
• Use with care to avoid creating instability; pair with proper leveling adjustments

Color: Black
