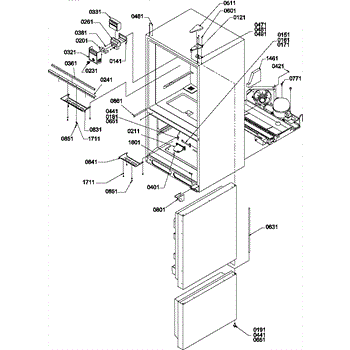

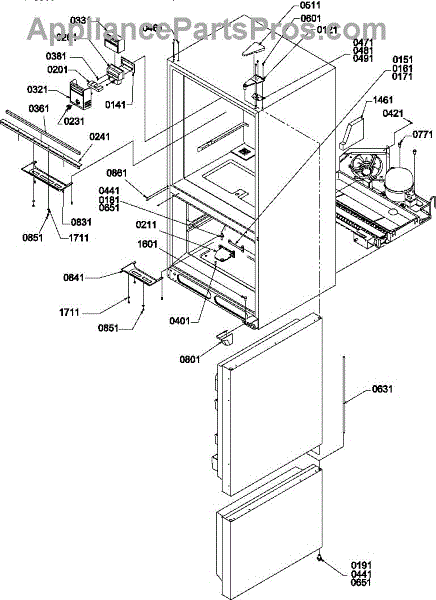

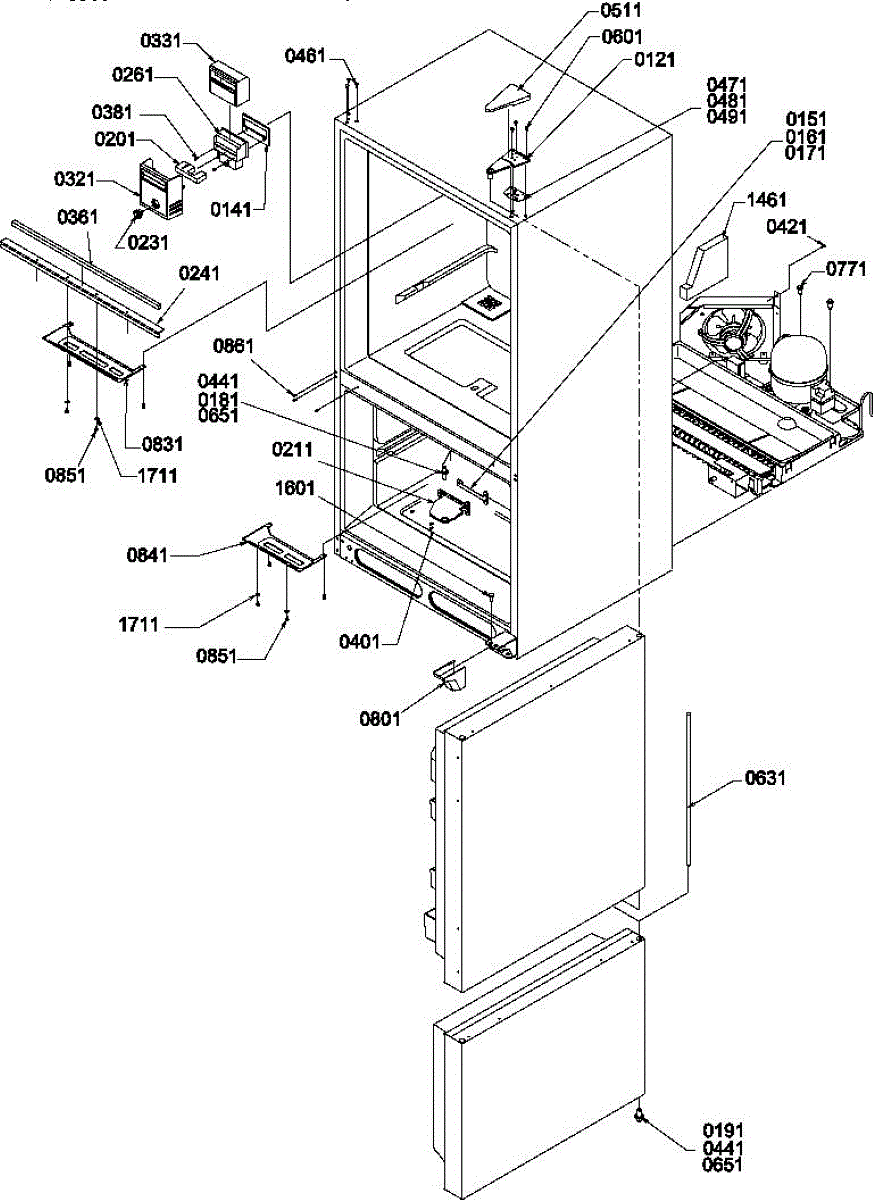

Parts for Amana BX22S5E / P1196705W E: 02 - Controls & Light Covers Parts

Center hinge pin that secures the refrigerator door at the pivot point. Replace if your original pin is worn, bent, or missing to restore alignment.

Replacement bottom hinge pin for refrigerator doors. Restores proper door pivot and alignment when original pin is worn, bent, or missing during moves.

This part has been discontinued and is no longer available.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Mounting screw for refrigerator assembly. Secures components and panels in place. Replace if screw is stripped, missing, or no longer holding tight.

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Nonmetal shim spaces and cushions refrigerator components to improve alignment and reduce vibration. Replace when worn to restore quiet operation.

Replace the control panel push button cap on your bottom-mount refrigerator. Restores appearance and tactile feel when original is cracked, worn, or missing.

This screw kit provides replacement fasteners used to secure appliance panels and internal components, helping restore proper fit and reduce vibration or rattling caused by missing or damaged screws. Ideal for maintenance and small repairs. What it does:

• Replaces missing, stripped, or damaged screws to restore secure panel and component attachment
• Helps eliminate rattling, vibration, and loose or misaligned panels
• Allows reassembly after part replacement or routine service
• Works with the appliance's original mounting points and threaded holes

• Always disconnect power and, if applicable, gas supply before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping screw heads
• Tighten screws snugly but avoid over-torquing which can strip threads or crack panels
• Keep small fasteners away from children and pets; work on a stable, well-lit surface

This thin plastic or metal shim provides proper alignment and spacing for your refrigerator door hinge. It ensures the door closes properly and maintains correct gaps around the door seal. Install this shim if your refrigerator door doesn't align properly, has uneven gaps, or doesn't seal tightly.

Color: Black
