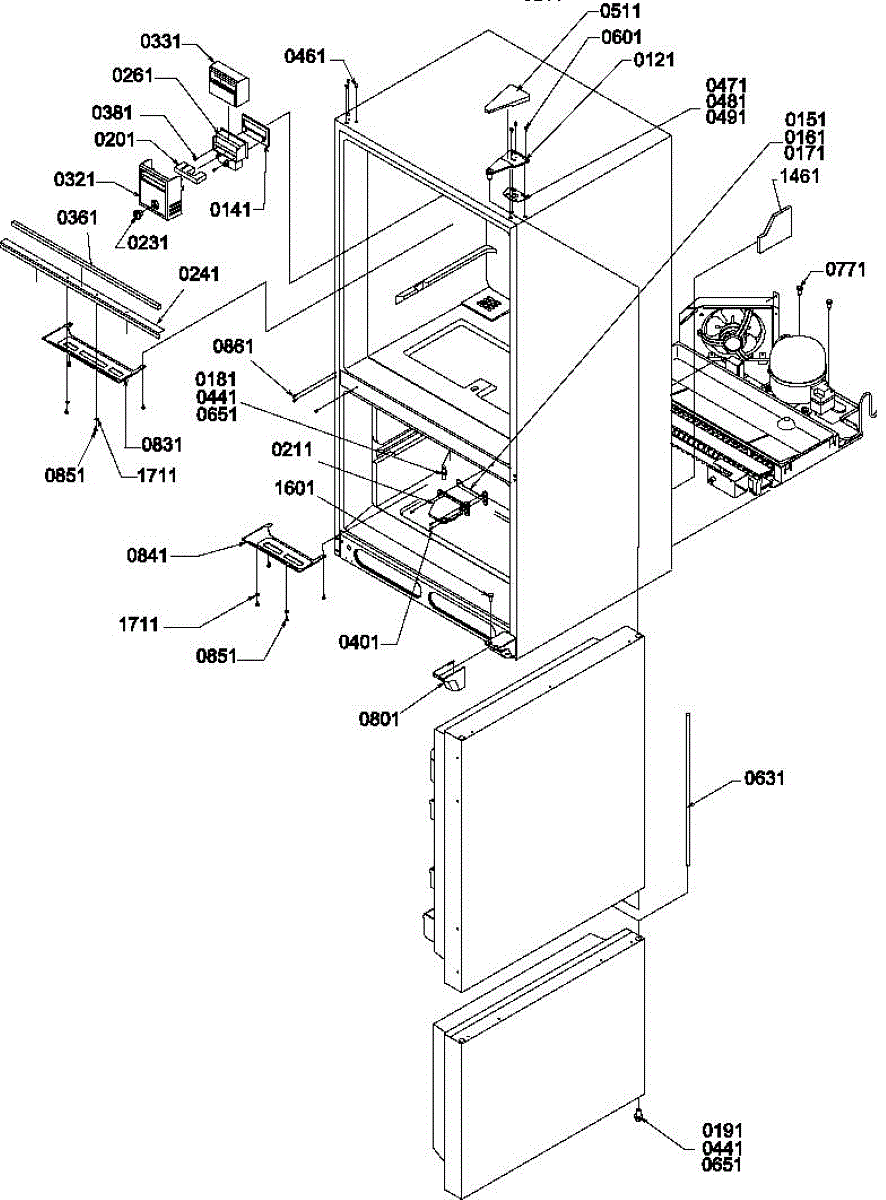

Parts for Amana BX22TE / P1196711W E: 02 - Controls & Light Covers Parts

Center hinge pin that secures the refrigerator door at the pivot point. Replace if your original pin is worn, bent, or missing to restore alignment.

Replacement bottom hinge pin for refrigerator doors. Restores proper door pivot and alignment when original pin is worn, bent, or missing during moves.

This part has been discontinued and is no longer available.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Mounting screw for refrigerator assembly. Secures components and panels in place. Replace if screw is stripped, missing, or no longer holding tight.

Nonmetal shim spaces and cushions refrigerator components to improve alignment and reduce vibration. Replace when worn to restore quiet operation.

Replace the control panel push button cap on your bottom-mount refrigerator. Restores appearance and tactile feel when original is cracked, worn, or missing.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This thin plastic or metal shim provides proper alignment and spacing for your refrigerator door hinge. It ensures the door closes properly and maintains correct gaps around the door seal. Install this shim if your refrigerator door doesn't align properly, has uneven gaps, or doesn't seal tightly.

Color: Black
