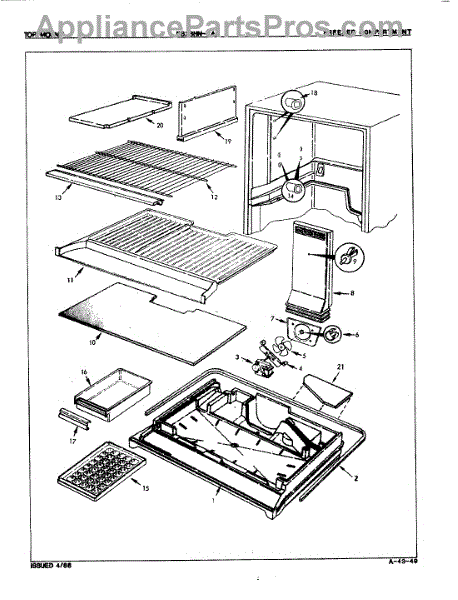

Parts for Magic Chef RB23HA-3AF / 7D30A: 02 - Freezer Compartment Parts

This evaporator fan motor circulates cold air across the evaporator coils and through the freezer and fresh-food sections to maintain even temperatures. Replacing a failed or noisy motor restores proper airflow and dependable cooling performance.

• Drives the evaporator fan blade to move air over the coils and throughout the cabinet
• Helps maintain consistent temperatures between freezer and refrigerator compartments
• Failure symptoms include weak/no airflow, the fan not running, loud squealing/rumbling, or the fresh-food section warming up
• Poor airflow can also lead to frost or ice buildup on the freezer back panel

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the motor behind the freezer's rear panel; use caution around sharp metal and evaporator fins
• Note wire positions; transfer the fan blade and any brackets/grommets from the original motor; secure wiring connections
• Ensure the blade spins freely; engage the door switch when testing and strong airflow after reassembly

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement ice tray holds and releases frozen cubes for a refrigerator icemaker, restoring normal ice production and cube release. Durable molded plastic fits the icemaker assembly and resupplies the ice bin with uniformly sized cubes. What it does

• Holds water while it freezes to form individual ice cubes.
• Releases formed cubes to the ice bin when the icemaker cycles, restoring proper dispensing.
• Commonly used when trays are cracked, warped, or no longer shedding cubes.
• Helps resolve symptoms like leaking inside the freezer, misshapen cubes, or reduced ice output.

• One replacement ice tray.

• Turn off power to the refrigerator or unplug before service to avoid injury.
• Remove ice bin and any retaining clips or fasteners to access the tray; handle gently to avoid damage.
• Inspect surrounding icemaker components for wear; replace additional damaged parts as needed.

This part has been discontinued by the manufacturer and is no longer available.
