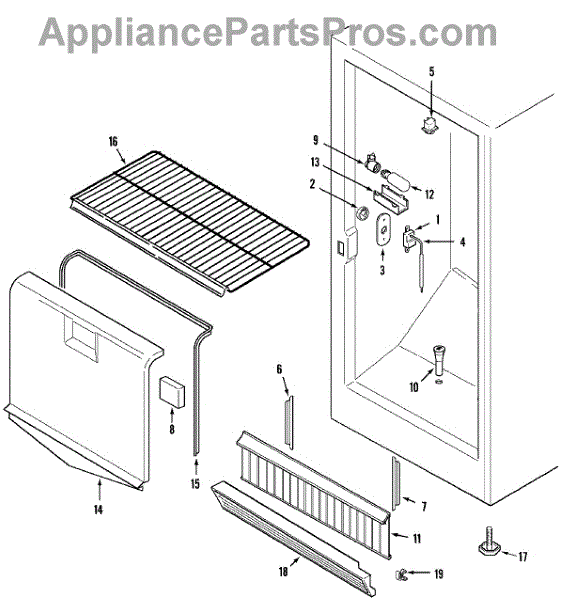

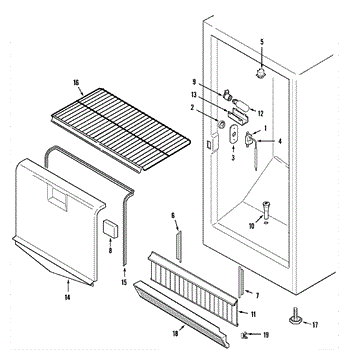

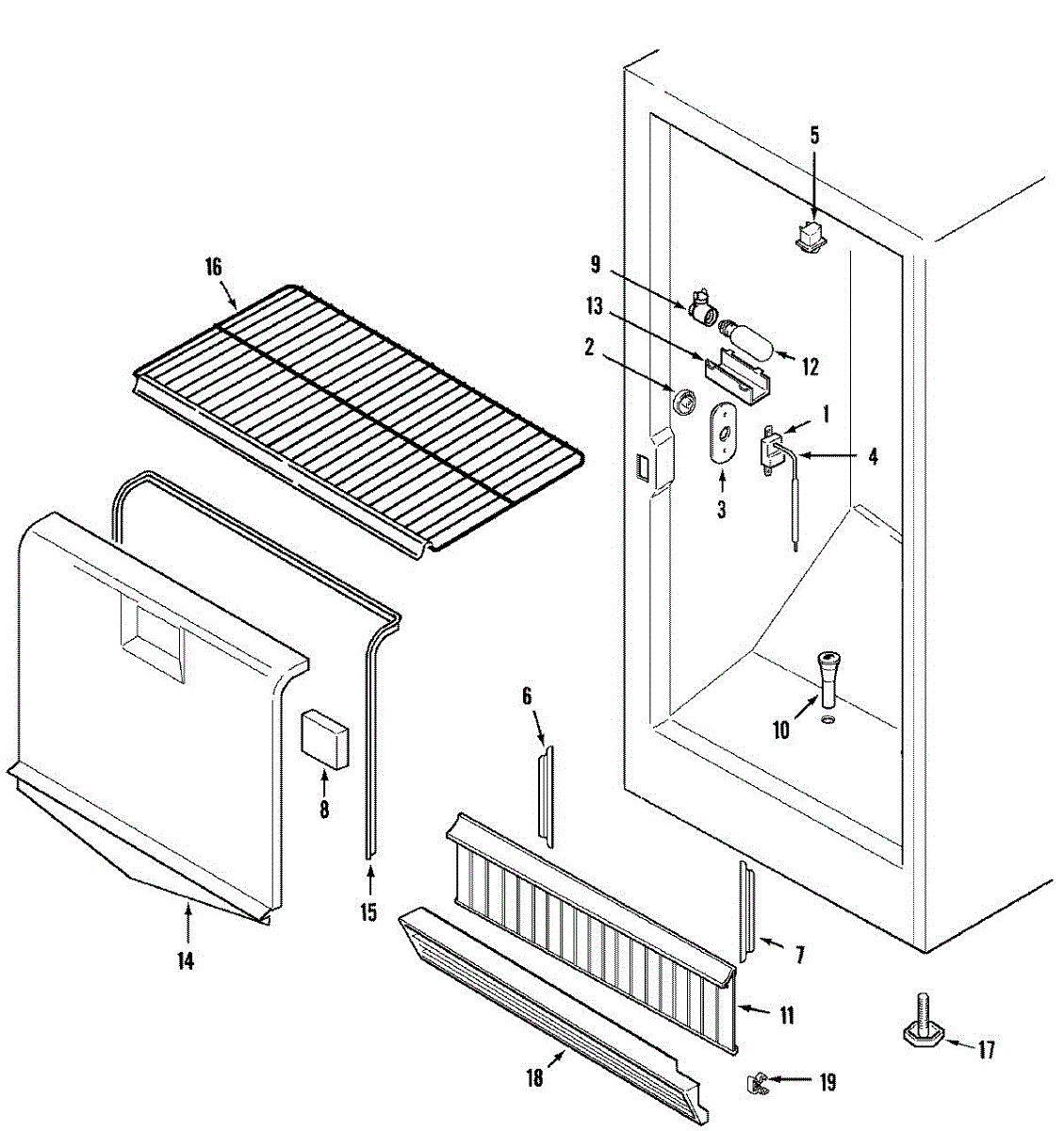

Parts for Maytag MQU1556AEW: 02 - Freezer Compartment Parts

This thermostat regulates the appliance's internal temperature by cycling the cooling or heating circuit on and off to maintain your set point. Replacing a failing thermostat restores accurate temperature control and consistent performance.

• Monitors temperature and opens/closes electrical contacts to maintain the selected setting
• Helps resolve symptoms like temperatures that drift, nonstop running, or failure to start/stop at the set point
• Can address an unresponsive or erratic control knob and irregular cycling
• Restores stable, predictable operation after a worn or stuck thermostat

• Disconnect power before servicing; work in a cool, dry area
• Note wire positions; transfer leads one at a time to the new control
• Mount the control securely and align the control shaft with the knob
• Restore power and verify proper cycling with a thermometer

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This gate support is the structural bracket that stabilizes the gate or flap inside your appliance, keeping it aligned and moving freely. Replacing a worn support restores smooth operation and helps eliminate noise from loose or misaligned parts.

• Provides stable support for the gate/flap within the assembly
• Maintains correct alignment and clearance for smooth opening/closing
• Reduces excess movement that can cause rattling or rubbing
• Replace if the gate feels loose, binds, won't stay closed, or the support is cracked/broken

What's included: 1 gate support Install notes:

• Disconnect power; also turn off gas or water supply
• Allow the unit to cool and wear cut-resistant gloves
• Access the gate assembly and note fastener locations/orientation before removal
• Transfer existing hardware, secure the new support, and verify smooth gate movement before reassembly

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This right-side evaporator cover gasket seals the evaporator cover to help prevent air leaks and reduce frost buildup, supporting consistent cooling and efficient refrigerator operation. What it does:

• Seals the evaporator cover to minimize warm air intrusion and reduce ice accumulation on the evaporator
• Helps maintain stable compartment temperatures for better cooling performance
• Reduces moisture and dripping that can cause water pooling inside the cabinet
• Can address symptoms such as increased frost on the evaporator, higher-than-normal temperatures, or water inside the fresh food/freezer area

• Disconnect power to the appliance before beginning any repair
• Remove necessary interior panels or shelves to access the evaporator cover per the service manual
• Seat the gasket fully around the cover flange; inspect the cover and seating surface for damage or debris

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

This part is White.

This small clip secures a component, panel, or cover so it stays firmly in place during appliance operation. Replacing a bent or missing clip restores a tight fit and helps eliminate unwanted movement or vibration.

• Retains a panel, cover, bracket, or harness at its mounting point
• Helps prevent shifting, rattling, or parts coming loose
• Direct replacement for a broken, bent, or missing clip
• Common symptoms: loose or sagging panel/cover, buzzing or rattling noises, part that will not stay attached

• Disconnect power and, if applicable, shut off gas/water supplies before servicing
• Note the original clip's orientation; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid over-bending the clip
• After installation, ensure the clip is fully seated and clears any moving parts

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Air duct baffle that seals and directs airflow between freezer and fresh-food compartments, helping maintain even temperatures and reduce temperature fluctuations. Replaces a worn or broken vent plug to restore proper airflow. What it does:

• Directs cold air through the refrigerator air duct to help balance temperatures between compartments.
• Seals the duct opening to limit warm air intrusion and reduce uneven cooling.
• Common symptom: refrigerator or fresh-food compartment feels warmer than expected or shows inconsistent cooling.
• Plastic replacement part; use when the existing vent plug is cracked, warped, or missing.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Access typically requires opening the refrigerator interior; remove shelves or bins as needed for clearance.
• Part generally snaps or slides into the duct opening—minimal tools may be required; handle clips and plastic gently to avoid breakage.
