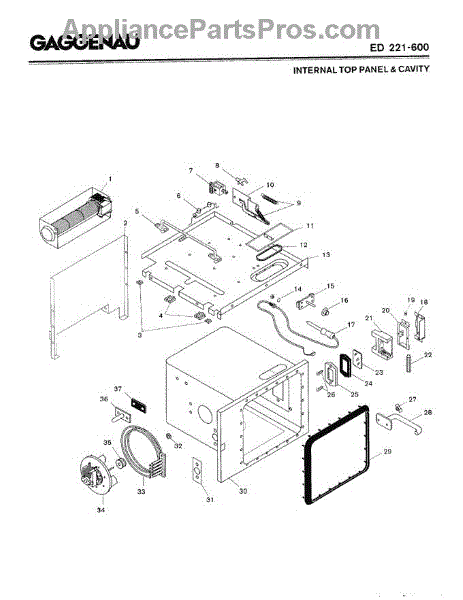

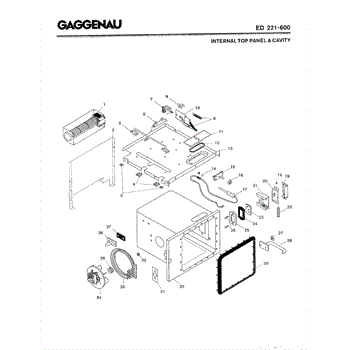

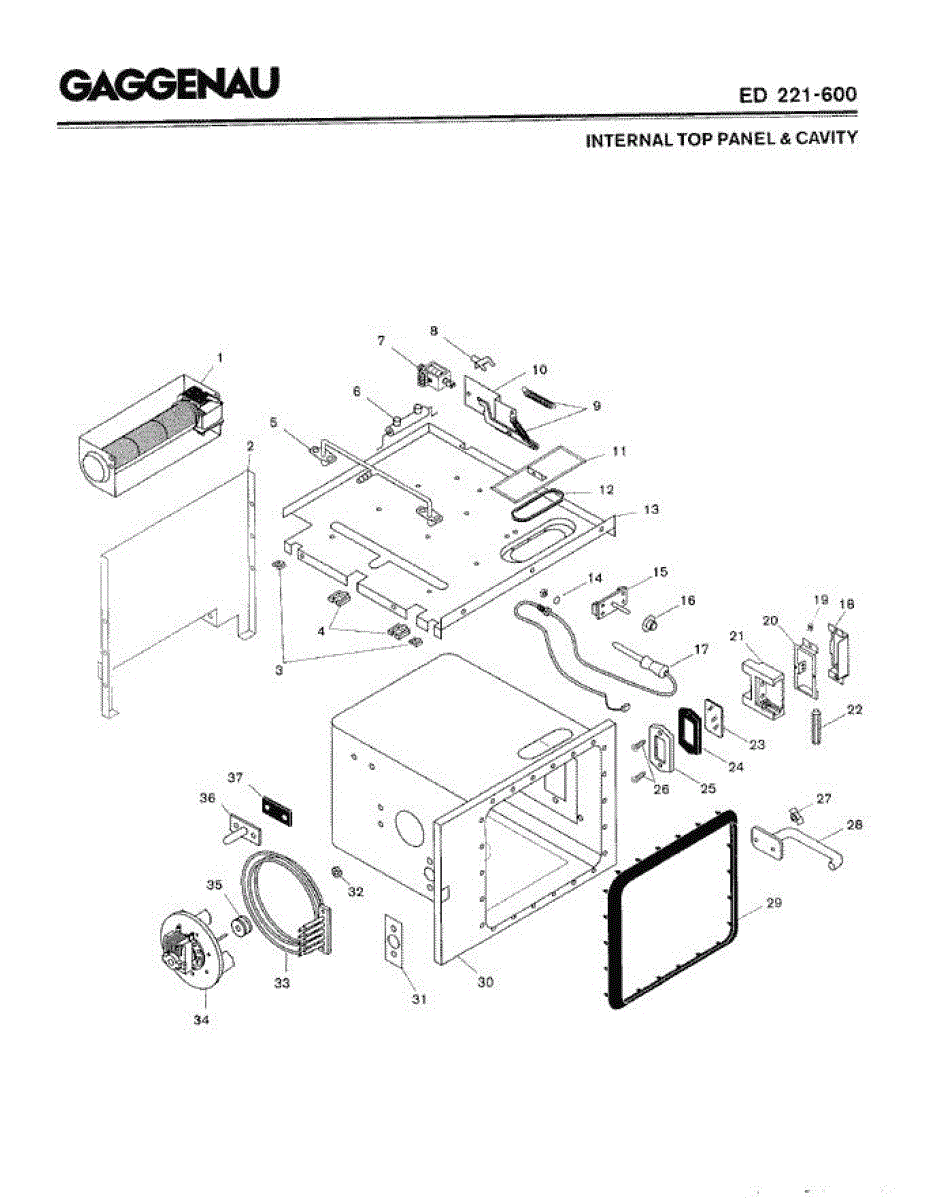

Parts for Gaggenau ED221-600: 02 - Internal Top Panel & Cavity Parts

This 750 ohm fixed resistor restores the correct resistance on the appliance control circuit so the control board can operate reliably. Use it to replace a burned or open resistor that interrupts normal electrical function. What it does:

• Provides a precise 750 O resistance value used in control and sensing circuits
• Limits or drops voltage to protect downstream components
• Restores stable control-board signals when the original resistor is open or damaged
• Commonly linked to symptoms like intermittent operation, control errors, or failure to start

• Disconnect power to the appliance before attempting service
• Handle the resistor and circuit board carefully to avoid damage; observe ESD precautions
• Confirm orientation and solder joint quality when installing; use proper tools and techniques

This electro magnet is a solenoid-style actuator that provides the magnetic force needed for secure latch and hold functions. It replaces a worn or failed magnetic actuator to restore proper mechanical engagement. What it does:

• Converts electrical input into a linear magnetic force to engage or release a latch or striker
• Commonly used where a powered hold or release is required for door, dispenser, or mechanical assemblies
• Symptoms of failure include door or latch not staying engaged, intermittent holding, or no response when energized
• Works as the OEM replacement magnet specified for the listed part number

• One electro magnet (solenoid actuator)

• Disconnect power to the appliance before attempting replacement to avoid shock or damage
• Verify correct orientation and secure mounting; ensure wiring harness connectors are fully seated
• Inspect mating hardware and striker surfaces for wear; replace damaged components for reliable operation

This steam vent linkage is the mechanical connector that operates the appliance's steam vent, allowing controlled release of steam during cycles to prevent excess pressure and moisture buildup. Replaces a worn or broken actuator linkage to restore vent movement. What it does

• Transfers motion from the vent actuator to the steam vent so the vent can open and close properly.
• Helps release built-up steam during specified cycles to reduce excess moisture.
• Commonly replaced when the vent is stuck, does not move, or makes noise during operation.
• Supports normal vent sequencing—does not include electronic actuator or motor.

• One steam vent linkage

• Disconnect power (and gas if applicable) before beginning any repairs.
• Moderate disassembly of the cabinet or control area may be required; keep fasteners organized.
• Inspect surrounding components (springs, clips, actuator) for wear and replace if needed.

This lever is the replacement control lever for the steam vent in compatible Bosch countertop ovens and steam/combination ovens, restoring proper vent opening and steam release during cooking cycles. What it does:

• Replaces a worn or broken steam vent lever that won't open or close reliably
• Restores manual control of the oven's steam vent to help normal venting during operation
• Addresses symptoms such as a loose, stuck, or missing vent lever and visible steam leakage from the vent area
• Works as the mechanical interface between the vent mechanism and the oven exterior

• One steam vent lever

• High-level replacement — remove power and allow unit to cool before servicing
• May require access to the oven door or control area; keep fasteners and brackets organized
• Handle small plastic parts carefully to avoid breakage during installation

Fix an oven that won't heat to the right temperature or overheats food with this temperature sensor probe. Measures internal oven temp accurately.

Fixes inaccurate oven temperatures caused by a damaged sensor seal. This gasket keeps heat and moisture away from sensor wiring for reliable readings.

This Halogen Bulb is an OEM part for Bosch Ranges. It provides illumination for the range's interior. Continuous use or high temperatures can cause the bulb to burn out or fail.

What Causes a Bad Halogen Bulb:
Repeated heating and cooling cycles, along with continuous use, can cause the halogen bulb to burn out or break.

Symptoms of a Bad Halogen Bulb:

• The bulb is not lighting up
• Visible signs of damage or a broken filament
• Flickering or intermittent lighting

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This bulb-frame gasket seals the appliance door to prevent water and heat leaks and help the door close evenly. It restores a tight seal for better performance and reduces noise from a loose or damaged seal. What it does:

• Creates a watertight/airtight seal around the door frame to prevent leaks and heat loss
• Cushions the door edge so it closes smoothly and stays aligned
• Helps reduce vibration and rattling caused by a worn or compressed seal
• Common symptom: visible leaks at the door, steam or heat escaping, or a door that doesn't sit flush

• Disconnect power and water before starting any repair
• Remove the door or access panel for easier gasket replacement
• Work the gasket bead evenly into the door channel, ensuring the bulb is fully seated all the way around

This protective glass cover shields the interior light bulb inside the oven cavity from heat and food splatter. Replace when cracked, discolored, or completely shattered, which can expose the bulb to damage.

Replace your oven door seal to maintain heat efficiency and prevent energy loss. Essential when seal shows cracks, tears, or gaps. Confirm fit with your model.

This is a steamer heating element made to be used on wall oven units. This particular part heats the water in the water tank. Allow the appliance plenty of time to cool down before attempting to repair or replace any component.If the heating element is not glowing an orange or red color, this is an indication that the part may be bad. When the water in the water tank is not heating, it can be because this part is no longer working properly. This ring element is a durable replacement part. Wear work gloves to protect the hands during this process. Disconnect this appliance from the power source before starting to replace the part. Use caution during the replacement procedure.This part is sold individually and is sourced directly from the manufacturer. It is compatible with wall ovens that are manufactured by the Bosch brand, including Thermador and Gaggenau.

This fan motor powers the appliance's vent/air blower to move airflow for drying and heat circulation, helping maintain proper temperature and prevent overheating. Direct replacement for the listed part number. What it does:

• Drives the vent/blower to circulate air for drying and heat dispersion
• Restores proper airflow when drying performance is poor
• Stops or reduces loud bearing/rubbing noise if the original motor is failing
• Helps prevent overheating by moving air across components

• Always disconnect power before servicing the appliance
• Handle electrical connections carefully; match wire terminals and secure connectors
• Test motor operation before fully reassembling the appliance
• Follow OEM service instructions for removal, replacement, and torque specifications

This is an adhesive sealant used to create a secure, heat-resistant bond between components such as the cooktop glass and the frame of the range. It helps prevent moisture, grease, and debris from penetrating between surfaces. Replace this sealant if the original bond has deteriorated, the cooktop glass has loosened, or you are reinstalling a component that requires a fresh seal.
