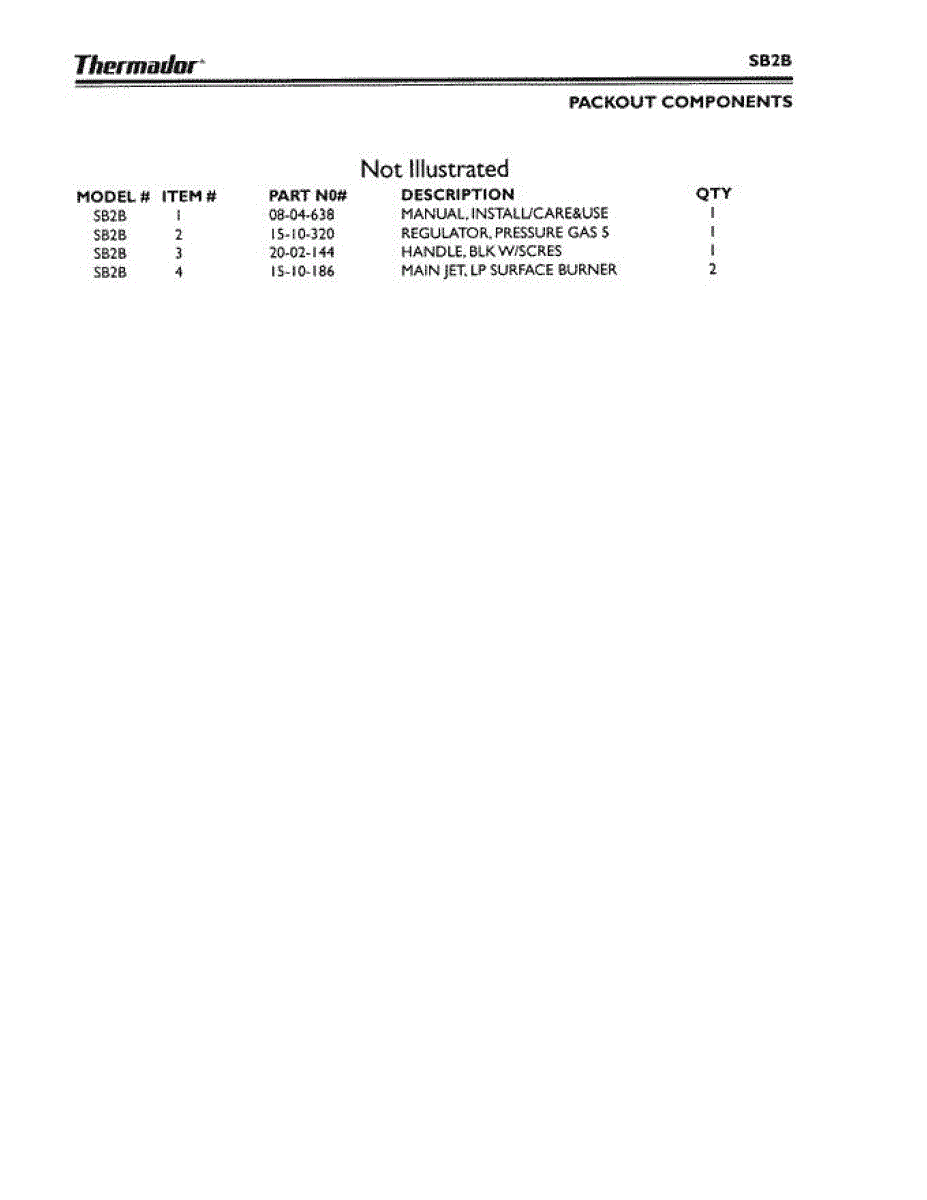

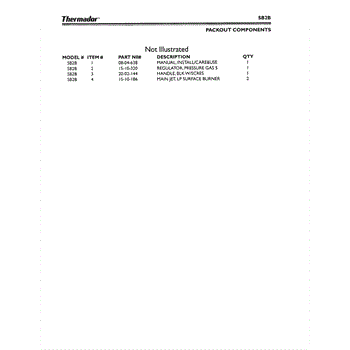

Parts for Thermador SB2B: 02 - Packout Components Parts

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation

This LP main jet regulates propane flow to a surface burner to maintain a clean, stable flame. Replace a clogged or incorrect jet to restore proper burner performance, especially when converting a cooktop or range from natural gas to LP.

• Meters LP gas to the burner head for correct flame size and combustion
• Direct replacement for a damaged, clogged, or incorrect jet during service or LP conversion
• May help with yellow/sooty flames, weak or overly high flames, uneven heating, or delayed ignition

• Shut off gas and power; allow the appliance to cool completely
• Remove grates, caps, and burner head to access the orifice holder
• Start the jet by hand, then tighten gently with the correct tool—do not overtighten
• After installation or any LP conversion, leak-test connections and verify a steady blue flame; other jets and the regulator may also require LP settings per the model's instructions
