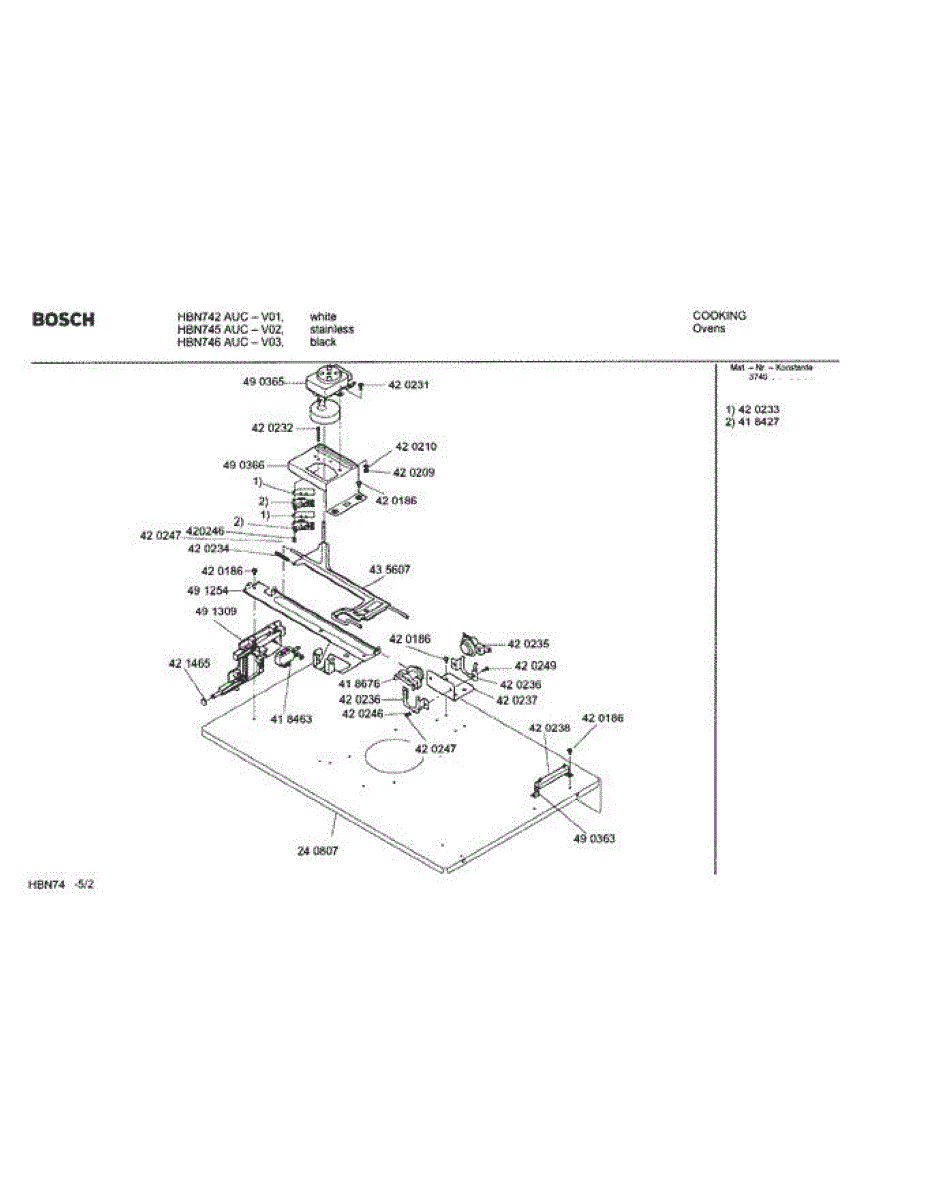

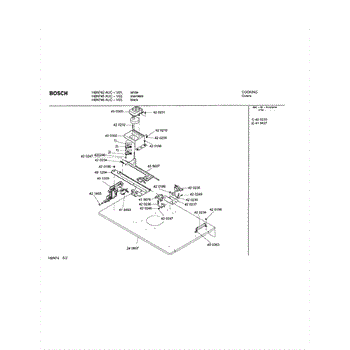

Parts for Bosch HBN746 AUC (FD 8207-): 02 - Plenum Parts

M4.2 x 9.5mm mounting screw for wall ovens. Secures interior panels, brackets, and components. Replace if stripped, missing, or damaged during repairs.

This cavity partition is the internal oven divider that maintains proper separation and airflow inside the cooking cavity for safe, consistent operation. It restores the oven's internal structure after damage or during repairs. What it does:

• Reestablishes the internal divider that separates oven compartments and supports correct airflow distribution
• Helps maintain even cooking by preserving the oven's designed cavity geometry
• Addresses symptoms like loose or missing interior panels, rattling inside the oven, or gaps in the oven wall
• Prevents contact between components that should remain separated, reducing risk of internal damage

• One cavity partition (single-piece) as shown

• Refer to the oven's service manual for correct placement and fastening sequence
• Disconnect power and allow the appliance to cool completely before servicing
• Handle edges with care; wear gloves to avoid cuts and protect finished surfaces
• If fasteners or clips are damaged or missing, replace them; part ships without additional hardware

Mounting bracket for wall oven hi-limit thermostat. Secures thermostat in proper position. Replace if bent, broken, or missing to ensure safe installation.

This oven hi-limit thermostat kit is a safety device that prevents the oven from overheating by shutting off power when temperatures exceed safe limits. It monitors internal temperature and cuts power to heating elements when necessary. Replace this kit when your oven overheats, won't maintain temperature, or the safety system isn't functioning properly.

205 degrees fahrenheit.

M3 x 12mm mounting screw for wall ovens. Secures internal panels, components, and trim. Replace if missing, stripped, or damaged during repairs.

A replacement mounting bracket that secures internal components or panels so parts stay aligned and stable during normal use. Restores proper fit and reduces movement that can cause rubbing or noise. What it does:

• Supports and holds a panel, assembly, or component in the correct position
• Prevents shifting that can lead to rattling, misalignment, or premature wear
• Provides a fixed attachment point for fasteners or clips
• Helps maintain proper gap and alignment for doors or covers

• Disconnect power and water before starting repairs
• Inspect surrounding fasteners and clips; replace any that are damaged
• Use basic hand tools; follow OEM diagram for orientation and screw locations

Replacement resistor support plate for electric wall ovens. Secures heating element resistor in place. Order a new one if original is cracked or broken.

Heat shield for wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.
